CLE100F
Gallium Arsenide IRED
Flat Lead PLCC Package
®
Clairex
August, 2001
Technologies, Inc.

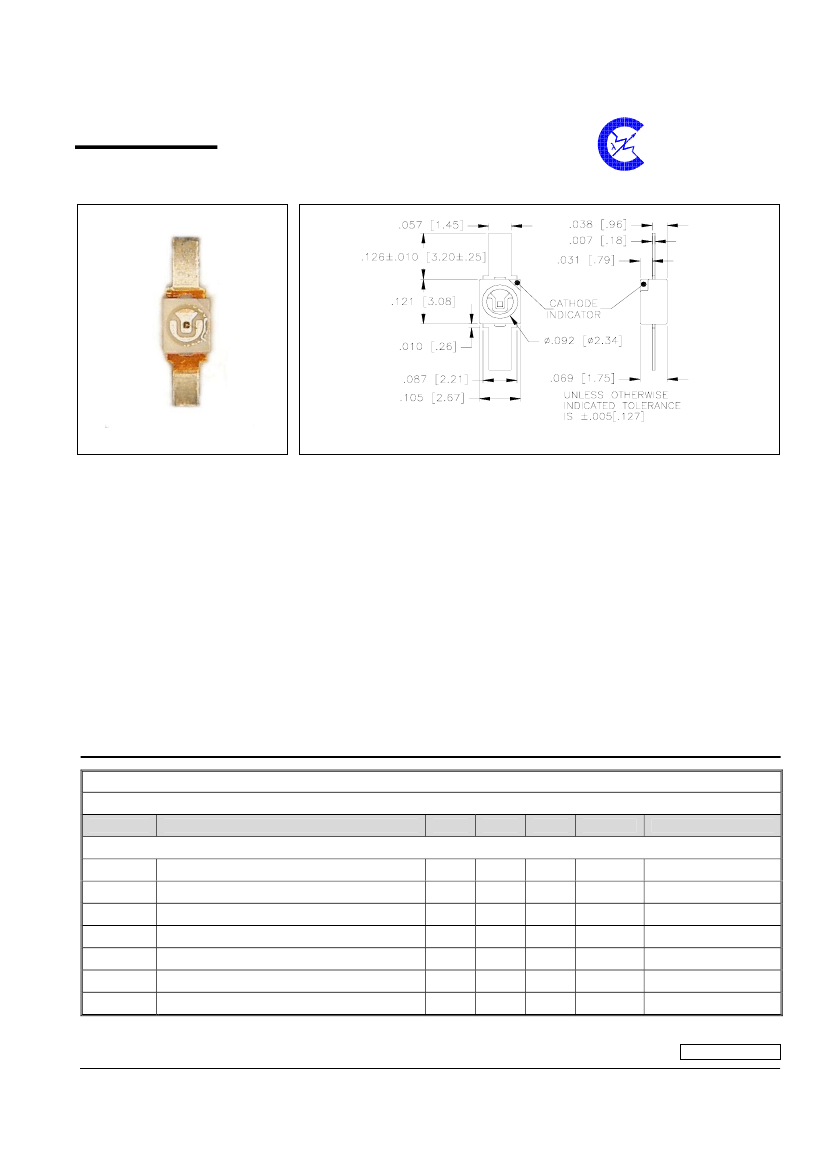

ALL DIMENSIONS ARE IN INCHES (MILLIMETERS)
ALL DIMENSIONS ARE IN INCHES (MILLIMETERS)
features
•
Flat lead PLCC package
• ±50°
emission angle
•
940 nm peak wavelength
description
The CLE100F is a 940nm infrared
emitting diode featuring current
GaAs/AlGaAs technology for
increased quantum efficiency. The
chip is mounted in a compact,
embedded leadframe package with
flying lead configuration and
overcoated with clear epoxy to
provide a wide emission pattern.
Different wavelength chips, different
lenses and different lead
configurations are available. For
additional information, call Clairex.
absolute maximum ratings (T
A
= 25°C unless otherwise stated)
storage temperature ...................................................................... -40°C to +125°C
operating temperature ................................................................... -40°C to +100°C
lead soldering temperature
(1)
......................................................................... 260°C
(2)
continuous forward current .......................................................................... 30mA
peak forward current (1.0ms pulse width, 10% duty cycle).................................. 1A
reverse voltage .................................................................................................... 5V
continuous power dissipation
(3)
...................................................................... 75mW
notes:
1. 0.06” (1.5mm) from case for 5 seconds maximum.
2. Derate linearly 0.32mA/°C from 25°C free air temperature to T
A
= +100°C.
3. Derate linearly 0.80mW/°C from 25°C free air temperature to T
A
= +100°C.
electrical characteristics (T
A
= 25°C unless otherwise noted)
symbol
P
O
V
F
I
R
λp
BW
θ
HP
t
r
, t
f
.
Clairex reserves the right to make changes at any time to improve design and to provide the best possible
parameter
Total power output
Forward voltage
Reverse current
Peak emission wavelength
Spectral bandwidth at half power points
Emission angle at half power points
Radiation rise and fall time
min
2.0
-
-
-
-
-
-
typ
2.5
-
-
940
50
100
700
max
-
1.5
10
-
-
-
-
units
mW
V
µA
nm
nm
deg.
ns
test conditions
I
F
= 20mA
I
F
= 20mA
V
R
= 5.0V
I
F
= 20mA
I
F
= 20mA
I
F
= 20mA
I
F(PK)
= 20mA
Revised 3/15/06
Clairex Technologies, Inc.
Phone: 972-265-4900
1301 East Plano Parkway
Fax: 972-265-4949
Plano, Texas 75074-8524
www.clairex.com
