CYStech Electronics Corp.
General Purpose NPN Epitaxial Planar Transistor
Spec. No. : C208M3
Issued Date : 2003.08.18
Revised Date :2006.12.04
Page No. : 1/5
BTC3906M3
Description
The BTC3906M3 is designed for general purpose applications requiring high breakdown voltage.
Features
•
High collector-emitter breakdown voltage. (BV
CEO
=160V @ I
C
=1mA)
•
Complement to BTA1514M3
•
Pb-free package
Symbol
BTC3906M3
Outline
SOT-89
B：Base
C：Collector
E：Emitter
B C E
Absolute Maximum Ratings
(Ta=25°C)
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Power Dissipation
Junction Temperature
Storage Temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
Pd
Tj
Tstg
Limits
180
160
6
600
0.6
1
(Note 1)
2
(Note 2)
150
-55~+150
Unit
V
V
V
mA
W
W
W
°C
°C
Note
:
1. When mounted on FR-4 PCB with area measuring 10×10×1 mm
2 .
When mounted on ceramic with area measuring 40×40×1 mm
BTC3906M3
CYStek Product Specification
CYStech Electronics Corp.
Characteristics
(Ta=25°C)
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
*V
CE(sat)
1
*V
CE(sat)
2
*V
BE(sat)
1
*V
BE(sat)
2
*h
FE
1
*h
FE
2
*h
FE
3
*h
FE
4
f
T
Cob
Min.
180
160
6
-
-
-
-
-
-
50
60
50
120
100
-
Typ.
-
-
-
-
-
0.1
-
-
-
-
-
-
-
-
-
Max.
-
-
-
50
50
0.15
0.2.
1
1
-
-
-
390
-
6
Unit
V
V
V
nA
nA
V
V
V
V
-
-
-
-
MHz
pF
Spec. No. : C208M3
Issued Date : 2003.08.18
Revised Date :2006.12.04
Page No. : 2/5
Test Conditions
I
C
=100μA
I
C
=1mA
I
E
=10μA
V
CB
=120V
V
EB
=4V
I
C
=10mA, I
B
=1mA
I
C
=50mA, I
B
=5mA
I
C
=10mA, I
B
=1mA
I
C
=50mA, I
B
=5mA
V
CE
=5V, I
C
=1mA
V
CE
=5V, I
C
=10mA
V
CE
=5V, I
C
=50mA
V
CE
=6V, I
C
=2mA
V
CE
=20V, I
C
=10mA, f=100MHz
V
CB
=20V, I
E
=0A,f=1MHz
*Pulse Test: Pulse Width
≤380μs,
Duty Cycle≤2%
Classification Of h
FE
4
Rank
Range
Q
120~270
R
180~390
Ordering Information
Device
BTC3906M3
Package
SOT-89
(Pb-free)
Shipping
1000 pcs / Tape & Reel
Marking
G1
BTC3906M3
CYStek Product Specification
CYStech Electronics Corp.

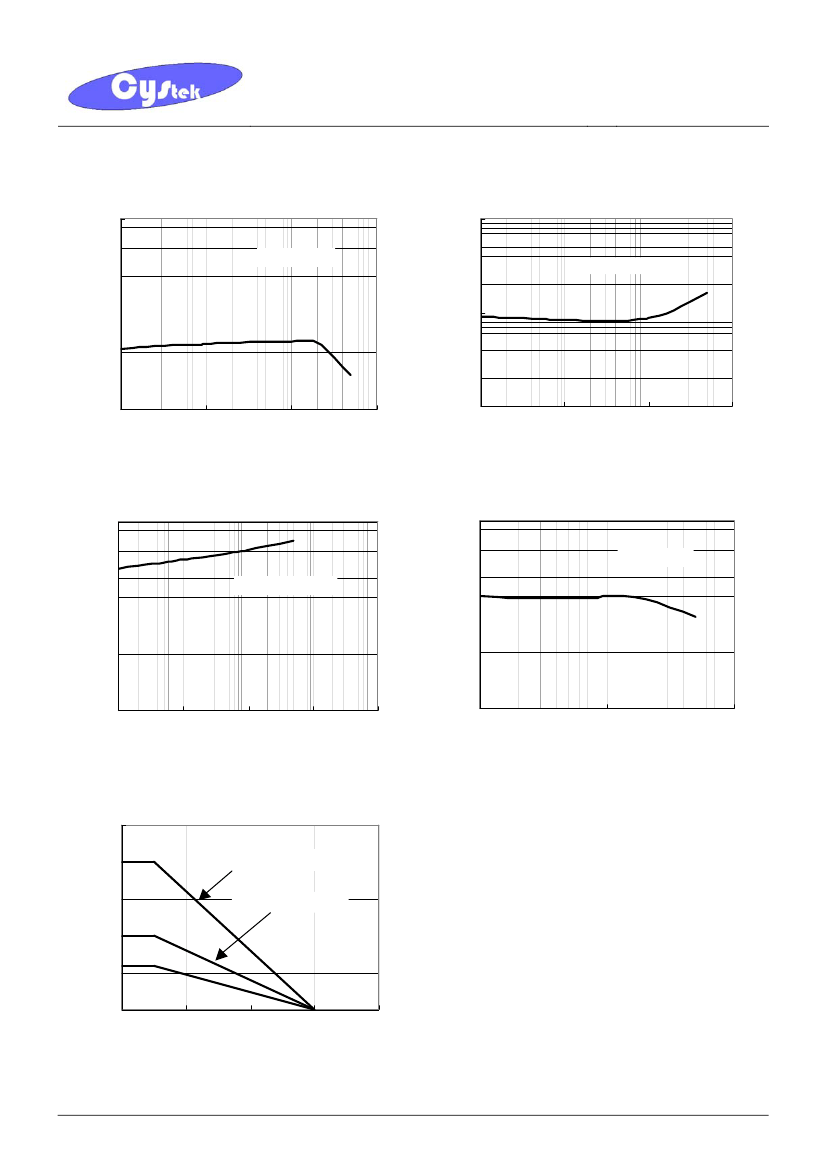

Characteristic Curves
Current Gain vs Collector Current
1000
HFE@VCE=6V
Spec. No. : C208M3
Issued Date : 2003.08.18
Revised Date :2006.12.04
Page No. : 3/5
Saturation Voltage vs Collector Current
1000
Saturation Voltage---(mV)
Current Gain---
HFE
VCE(SAT)@IC=10IB
100
100
0.1
1
10
100
Collector Current--- IC(mA)
10
0.1
1
10
100
Collector Current ---IC(mA)
Saturation Voltage vs Collector Current
1000
Cutoff Frequency vs Collector Current
1
Cutoff Frequency---FT(GHZ)
FT@VCE=12V
Saturation Voltage---(mV)
VBE(SAT)@IC=10IB
100
0.1
1
10
100
1000
Collector Current ---IC(mA)
0.1
1
10
Collector Current---IC(mA)
100
Power Derating Curves
2.5
Power Dissipation---PD(mW)
2
1.5
1
0.5
0
0
50
100
150
200
Ambient Temperature ---Ta(℃ )
See Note 2 on page 1
See Note 1 on page 1
BTC3906M3
CYStek Product Specification
CYStech Electronics Corp.

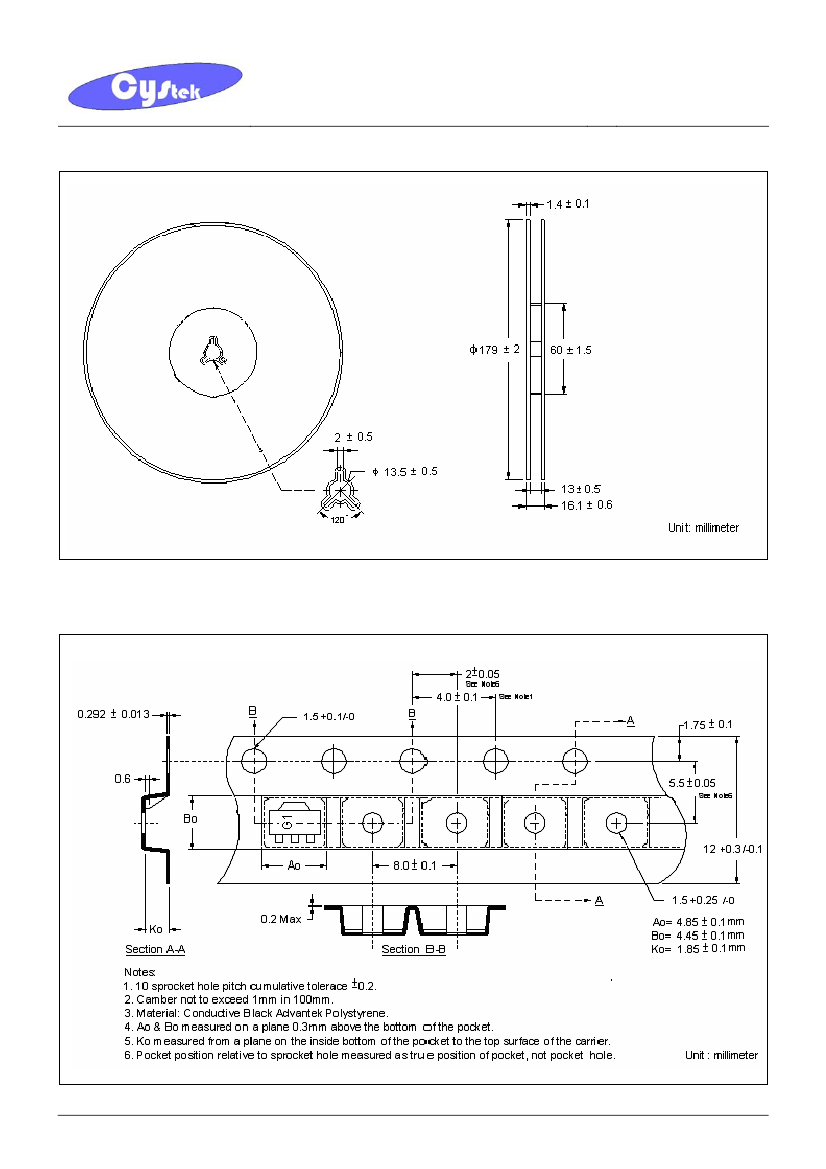

Reel Dimension
Spec. No. : C208M3
Issued Date : 2003.08.18
Revised Date :2006.12.04
Page No. : 4/5
Carrier Tape Dimension
BTC3906M3
CYStek Product Specification
CYStech Electronics Corp.

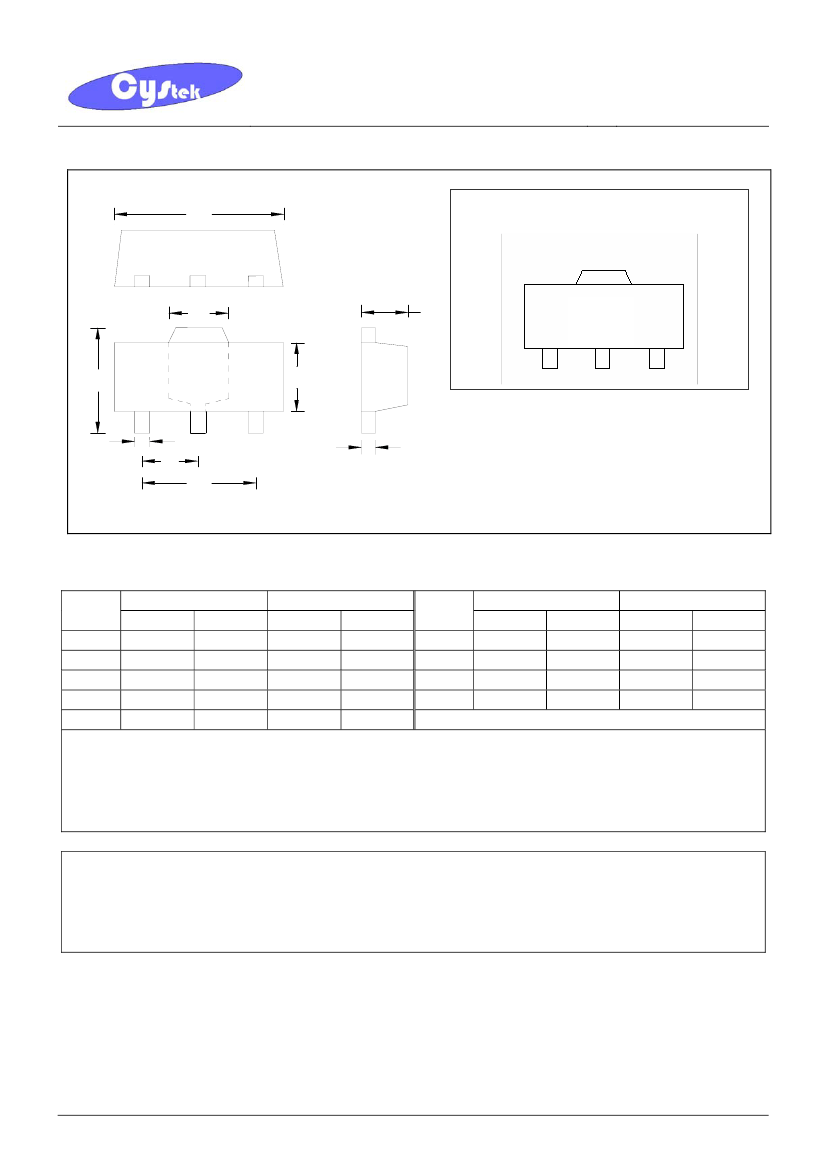

SOT-89 Dimension
A
Spec. No. : C208M3
Issued Date : 2003.08.18
Revised Date :2006.12.04
Page No. : 5/5
Marking:
1
2
C
3
G1
Style: Pin 1. Base 2. Collector 3. Emitter
3-Lead SOT-89 Plastic
Surface Mounted Package
CYStek Package Code: M3
H
B
D
E
F
G
I
*: Typical
DIM
A
B
C
D
E
Inches
Min.
Max.
0.1732 0.1811
0.1594 0.1673
0.0591 0.0663
0.0945 0.1024
0.01417 0.0201
Millimeters
Min.
Max.
4.40
4.60
4.05
4.25
1.50
1.70
2.40
2.60
0.36
0.51
DIM
F
G
H
I
Inches
Min.
Max.
0.0583 0.0598
0.1165 0.1197
0.0551 0.0630
0.0138 0.0161
Millimeters
Min.
Max.
1.48
1.527
2.96
3.04
1.40
1.60
0.35
0.41
Notes:
1.Controlling dimension: millimeters.
2.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
3.If there is any question with packing specification or packing method, please contact your local CYStek sales office.
Material:
•
Lead: 42 Alloy ; solder plating
•
Mold Compound: Epoxy resin family, flammability solid burning class: UL94V-0
Important Notice:
•
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of CYStek.
•
CYStek reserves the right to make changes to its products without notice.
•
CYStek
semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
•
CYStek assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
BTC3906M3
CYStek Product Specification
