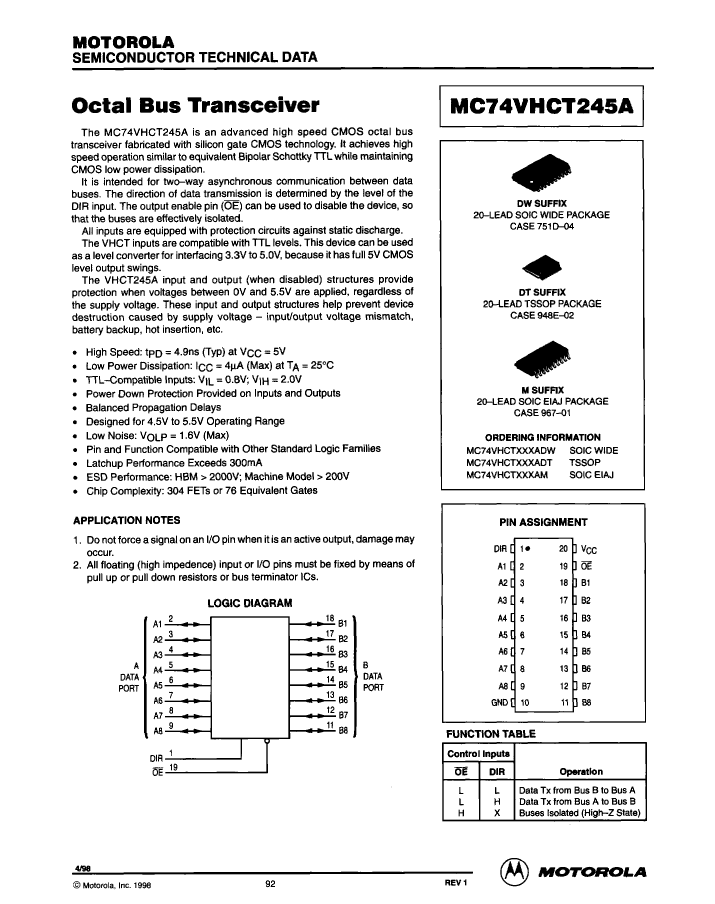

AHCT/VHCT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, PLASTIC, TSSOP-20

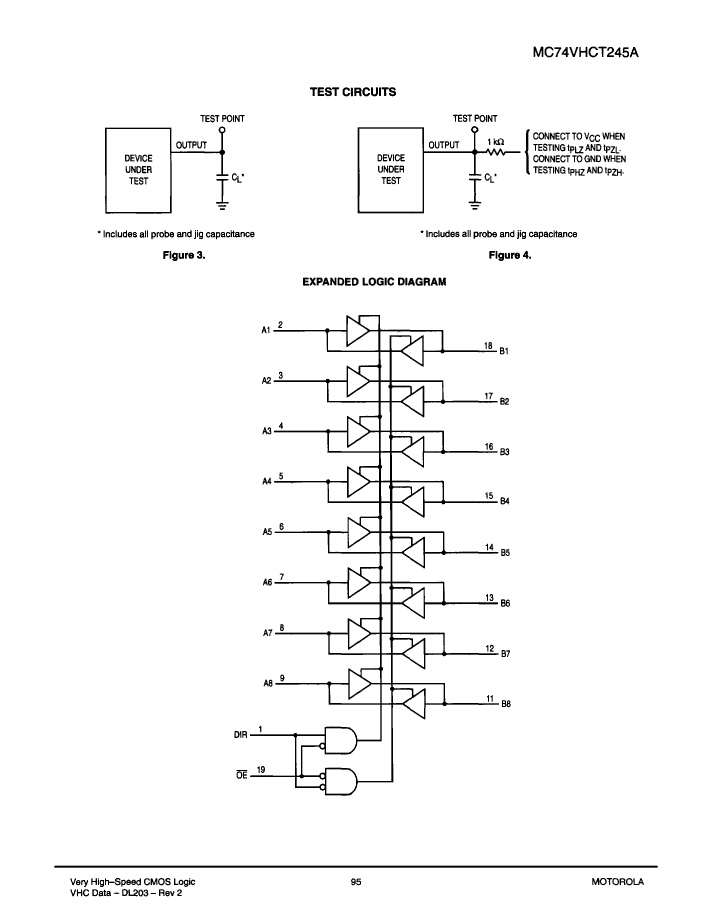

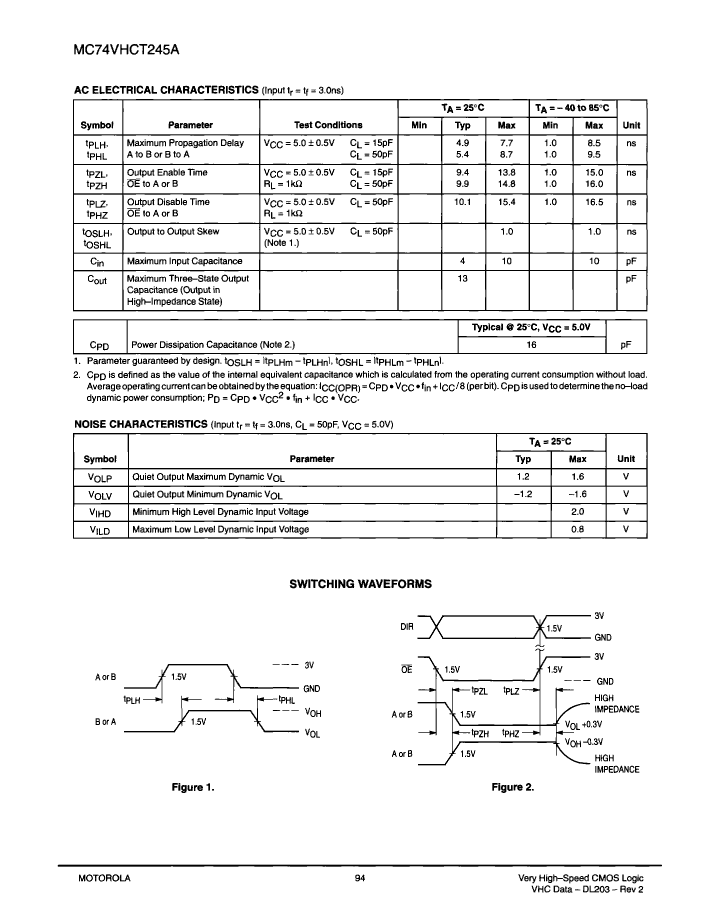

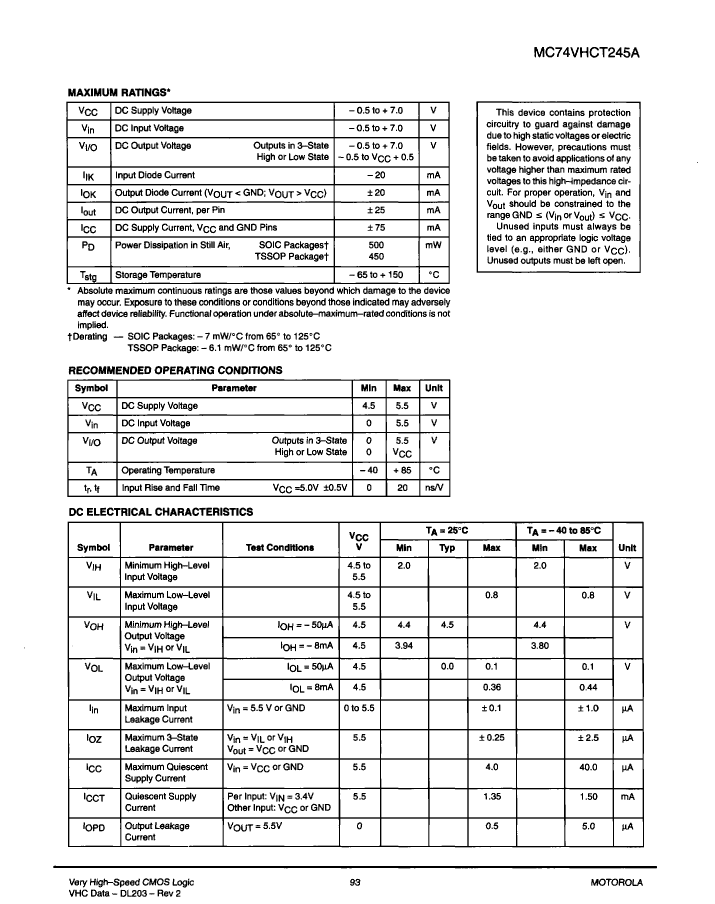

| Parameter Name | Attribute value |
| Maker | Motorola ( NXP ) |
| Parts packaging code | TSSOP |
| package instruction | TSSOP, |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| Other features | WITH DIRECTION CONTROL |
| series | AHCT/VHCT |
| JESD-30 code | R-PDSO-G20 |
| JESD-609 code | e0 |
| length | 6.5 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | BUS TRANSCEIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 20 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | TSSOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| propagation delay (tpd) | 9.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.2 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 0.65 mm |
| Terminal location | DUAL |
| width | 4.4 mm |
| MC74VHCT245ADT | MC74VHCT245AM | MC74VHCT245AMR2 | MC74VHCT245ADTR2 | MC74VHCT245ADW | MC74VHCT245ADWR2 | |
|---|---|---|---|---|---|---|
| Description | AHCT/VHCT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, PLASTIC, TSSOP-20 | Bus Transceiver, AHCT/VHCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, EIAJ, PLASTIC, SOIC-20 | Bus Transceiver, AHCT/VHCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO20, EIAJ, PLASTIC, SOIC-20 | AHCT/VHCT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, PLASTIC, TSSOP-20 | AHCT/VHCT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, PLASTIC, SOIC-20 | AHCT/VHCT SERIES, 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO20, PLASTIC, SOIC-20 |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| Parts packaging code | TSSOP | SOIC | SOIC | TSSOP | SOIC | SOIC |
| package instruction | TSSOP, | SOP, | SOP, | TSSOP, | SOP, | SOP, |
| Contacts | 20 | 20 | 20 | 20 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Other features | WITH DIRECTION CONTROL | WITH DIRECTION CONTROL | WITH DIRECTION CONTROL | WITH DIRECTION CONTROL | WITH DIRECTION CONTROL | WITH DIRECTION CONTROL |
| series | AHCT/VHCT | AHCT/VHCT | AHCT/VHCT | AHCT/VHCT | AHCT/VHCT | AHCT/VHCT |
| JESD-30 code | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G20 |
| length | 6.5 mm | 12.575 mm | 12.575 mm | 6.5 mm | 12.8 mm | 12.8 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | BUS TRANSCEIVER | BUS TRANSCEIVER | BUS TRANSCEIVER | BUS TRANSCEIVER | BUS TRANSCEIVER | BUS TRANSCEIVER |
| Number of digits | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | TSSOP | SOP | SOP | TSSOP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | SMALL OUTLINE | SMALL OUTLINE |
| propagation delay (tpd) | 9.5 ns | 9.5 ns | 9.5 ns | 9.5 ns | 9.5 ns | 9.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.2 mm | 2.05 mm | 2.05 mm | 1.2 mm | 2.65 mm | 2.65 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.65 mm | 1.27 mm | 1.27 mm | 0.65 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 4.4 mm | 5.275 mm | 5.275 mm | 4.4 mm | 7.5 mm | 7.5 mm |
