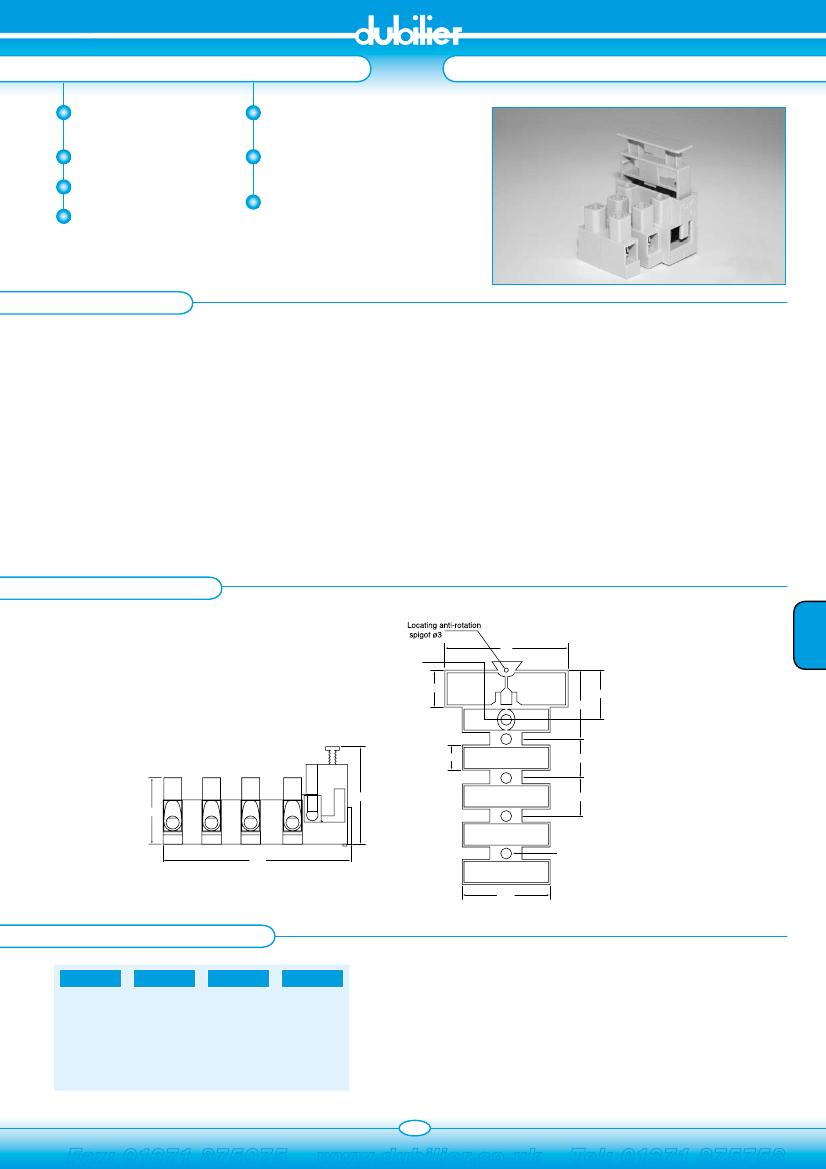

FUSEHOLDER
1 - 5 Pole terminal strip with
5x20mm fuse holder to IEC257
Anti - rotation spigot
IP20 finger protection
Cable entry 4mm2 (2.5mm2
with wire protector)
Meets creepage and clearance
requirements of IEC
Wire protector on fuse pole as
standard
Standard 3 to 5 pole with earth
screw, without wire protection
FUSED TERMINAL BLOCK
SPECIFICATION
Voltage rating:
Current rating:
Working
Temperature:
Moulding:
Terminal:
Fuse clip:
Fuse holder:
Screws:
Approvals:
fuse holder 250VAC, terminal 450VAC
fuse holder 13A, terminal 13A
125°C (short period: 170°C)
UL94-V0 flame retardant polyamide 66
Brass Nickel plated
Phosphor bronze
5 x 20mm
M3 7 microns zinc, colour passivated and
tropicalised
IMQ, Semko, Fimko UL, VDE, CSA
OUTLINE DRAWING
SECTION 13
28
Earth screw M3
13.2
20
15mm
Spigot to earth
6
10
28
20
10
50.5
ø3.3
21.5
ORDERING INFORMATION
DBC
Dubilier
Connectors
FH
Series
Fuse Holder
1
Style
1
/3
Nº of Ways
3=3way
4=4way
5=5way
299
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
