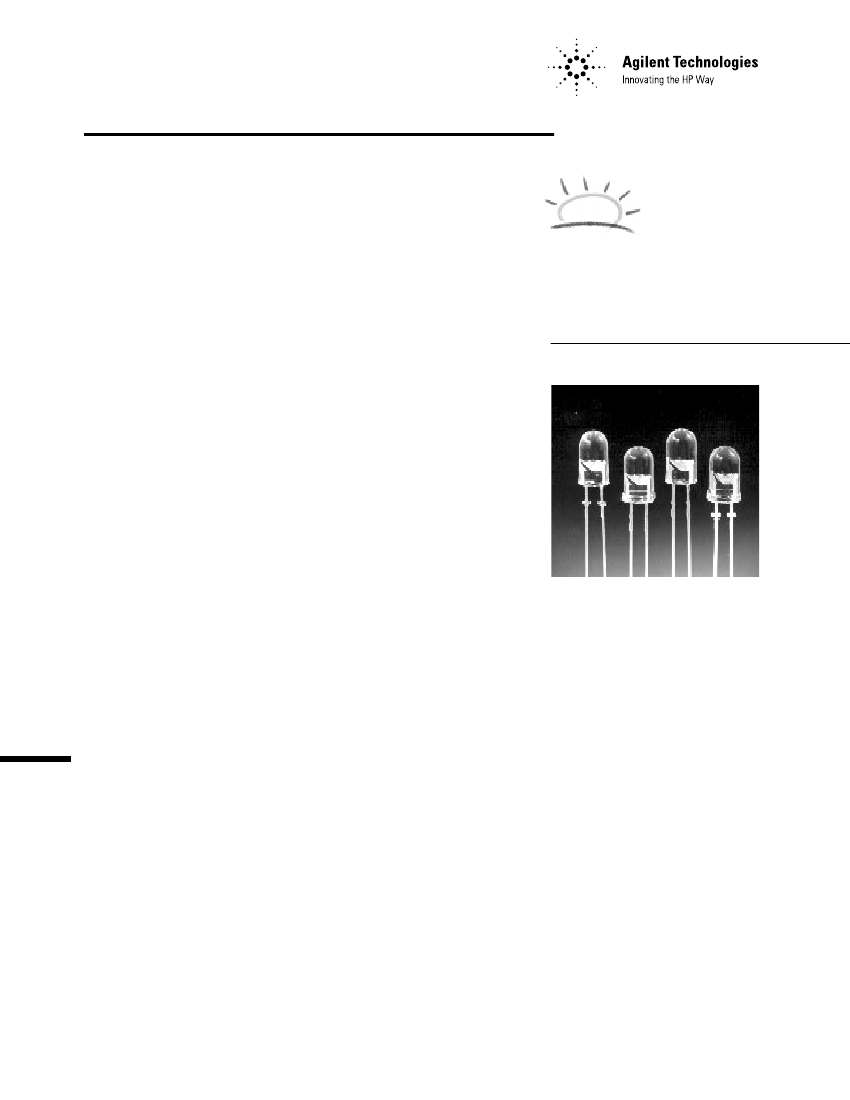

T-1
3
/
4
(5 mm) Precision Optical
Performance AlInGaP LED
Lamps
Technical Data
SunPower Series
HLMP-ELxx
HLMP-EJxx
HLMP-EHxx
HLMP-EGxx
Features
• Well Defined Spatial
Radiation Patterns
• Viewing Angles: 6
°
, 15
°
,
23
°
, 30
°
• High Luminous Output
• Colors:
590 nm Amber
605 nm Orange
615 nm Reddish-Orange
626 nm Red
• High Operating
Temperature:
T
J LED
= +130
°
C
• Superior Resistance to
Moisture
• Package Options:
With or Without Lead Stand-
Offs
Applications
• Traffic Management:
Traffic Signals
Pedestrian Signals
Work Zone Warning Lights
Variable Message Signs
• Commercial Outdoor
Advertising:
Signs
Marquees
• Automotive:
Exterior and Interior Lights
Description
These Precision Optical Perform-
ance AlInGaP LEDs provide
superior light output for excellent
readability in sunlight and are
extremely reliable. AlInGaP LED
technology provides extremely
stable light output over long
periods of time. Precision Optical
Performance lamps utilize the
aluminum indium gallium phos-
phide (AlInGaP) technology.
These LED lamps are untinted,
nondiffused, T-1
3
/
4
packages
incorporating second generation
optics producing well defined
spatial radiation patterns at
specific viewing cone angles.
Benefits
• Viewing Angles Match
Traffic Management Sign
Requirements
• Colors Meet Automotive and
Pedestrian Signal
Specifications
• Superior Performance in
Outdoor Environments
• Suitable for Autoinsertion
onto PC Boards
These lamps are made with an
advanced optical grade epoxy,
offering superior high tempera-
ture and high moisture resistance
performance in outdoor signal
and sign applications. The high
maximum LED junction tempera-
ture limit of +130°C enables high
temperature operation in bright
sunlight conditions. The package
epoxy contains both uv-a and
uv-b inhibitors to reduce the
effects of long term exposure to
direct sunlight.
These lamps are available in two
package options to give the
designer flexibility with device
mounting.
2
Part Numbering Scheme
HLMP-E(1)(2)(3)-
(4)(5)(6)(7)(8)
where (1) = Color
“L” =592 nm Amber
“J” =605 nm Orange
“H” =615 nm Reddish-
orange
“G” =626 nm Red
where (2)(3) = Viewing
Angle and Lead Standoffs
“08” =6 degree without lead
standoffs
“10” =6 degree with lead
standoffs
“15” =15 degree without lead
standoffs
“17” =15 degree with lead
standoffs
“24” =23 degree without lead
standoffs
“26” =23 degree with lead
standoffs
“30” =30 degree without lead
standoffs
“32” =30 degree with lead
standoffs
where (4) = Minimum
Intensity Bin (refer to
table on page 9)
where (5) = Maximum
Intensity Bin (refer to
table on page 9)
where (6) = Color Bin
Selection
“0” = no color bin limitation
“K” =amber color bins 2
and 4 only (refer to
table on page 9)
“4” =amber color bin 4 only
(refer to table on
page 9)
where (7)(8) = Mechanical
or Packaging Option
“00” =bulk packaging,
minimum increment
500/bag
“DD”=ammo pack, minimum
increment 2000/box.
Available for products
shown in
BOLD
in
selection guide.
Refer to the device selection
guides for available
combinations.
Device Selection Guide
Typical
Viewing
Angle
2θ
1
/
2
(Deg.)
[4]
Color and
Dominant
Wavelength
(nm), Typ.
[3]
Luminous
Intensity Iv (mcd)
[1,2]
@ 20 mA
Min.
Max.
3600
4700
6200
6200
6200
6200
6200
6200
HLMP-EL10-X1000
6200
13800
18400
18400
18400
18400
13800
13800
24100
24100
Lamps Without Standoffs
on Leads
(Outline Drawing A)
HLMP-EL08-VY000
HLMP-EL08-WZ000
HLMP-EL08-XZ400**
HLMP-EL08-XZ000
Lamps With Standoffs
on Leads
(Outline Drawing B)
HLMP-EL10-VY000
HLMP-EL10-WZ000
6°
[5]
Amber 590
HLMP-EL08-XZK00*
HLMP-EL08-XY000
HLMP-EL08-XYK00*
HLMP-EL08-X1K00*
HLMP-EL08-X1000
Notes:
1. The luminous intensity is measured on the mechanical axis of the lamp package.
2. The optical axis is closely aligned with the package mechanical axis.
3. The dominant wavelength,
λ
d
, is derived from the CIE Chromaticity Diagram and represents the color of the lamp.
4.
θ
1/2
is the off-axis angle where the luminous intensity is one half the on-axis intensity.
5. The intensity of narrow viewing angle lamps is measured at the intensity peak.
Part numbers in
bold
are recommended for new designs.
*HLMP-xLxx-xxK00 are selected to amber color bins 2 and 4 only.
**HLMP-xLxx-xx400 are selected to amber color bin 4 only.
3
Device Selection Guide
(Continued)
Typical
Viewing
Angle
2θ
1
/
2
(Deg.)
[4]
Color and
Dominant
Wavelength
(nm), Typ.
[3]
Luminous
Intensity Iv (mcd)
[1,2]
@ 20 mA
Min.
Max.
4700
6200
8000
4700
6200
8000
4700
6200
8000
8000
HLMP-EG10-Y2000
HLMP-EL17-PS000
8000
765
1000
1000
1000
1000
1000
HLMP-EL17-QT000
1000
1000
HLMP-EL17-RU000
HLMP-EL17-SV000
HLMP-EJ17-RU000
HLMP-EJ17-SV000
HLMP-EJ17-TW000
1300
1650
1300
1650
2170
18400
24100
31000
18400
24100
31000
18400
24100
18400
24100
31000
2900
2200
2200
2900
2900
2900
3700
3700
4800
6300
4800
6300
8300
Lamps Without Standoffs
on Leads
(Outline Drawing A)
HLMP-EJ08-WZ000
Lamps With Standoffs
on Leads
(Outline Drawing B)
HLMP-EJ10-WZ000
HLMP-EJ10-X1000
HLMP-EJ10-Y2000
HLMP-EH10-WZ000
HLMP-EH10-X1000
HLMP-EH10-Y2000
HLMP-EG10-WZ000
HLMP-EG10-X1000
Orange 605
HLMP-EJ08-X1000
HLMP-EJ08-Y2000
HLMP-EH08-WZ000
Red-Orange 615
6°
[5]
HLMP-EH08-X1000
HLMP-EH08-Y2000
HLMP-EG08-WZ000
HLMP-EG08-X1000
Red 626
HLMP-EG08-YZ000
HLMP-EG08-Y1000
HLMP-EG08-Y2000
HLMP-EL15-PS000
HLMP-EL15-QR000
HLMP-EL15-QRK00*
HLMP-EL15-QS000
HLMP-EL15-QS400**
Amber 590
15°
HLMP-EL15-QSK00*
HLMP-EL15-QT000
HLMP-EL15-QTK00*
HLMP-EL15-RU000
HLMP-EL15-SV000
HLMP-EJ15-RU000
Orange 605
HLMP-EJ15-SV000
HLMP-EJ15-TW000
Notes:
1. The luminous intensity is measured on the mechanical axis of the lamp package.
2. The optical axis is closely aligned with the package mechanical axis.
3. The dominant wavelength,
λ
d
, is derived from the CIE Chromaticity Diagram and represents the color of the lamp.
4.
θ
1/2
is the off-axis angle where the luminous intensity is one half the on-axis intensity.
5. The intensity of narrow viewing angle lamps is measured at the intensity peak.
Part numbers in
bold
are recommended for new designs.
*HLMP-xLxx-xxK00 are selected to amber color bins 2 and 4 only.
**HLMP-xLxx-xx400 are selected to amber color bin 4 only.
4
Device Selection Guide
(Continued)
Typical
Viewing
Angle
2θ
1
/
2
(Deg.)
[4]
Color and
Dominant
Wavelength
(nm), Typ.
[3]
Luminous
Intensity Iv (mcd)
[1,2]
@ 20 mA
Min.
Max.
1000
1300
1650
1000
1300
1650
590
765
1000
1000
1000
1000
1000
HLMP-EL26-QT000
1000
1000
HLMP-EJ26-QT000
HLMP-EJ26-RU000
HLMP-EJ26-SV000
HLMP-EH26-PS000
HLMP-EH26-QT000
HLMP-EH26-RU000
HLMP-EG26-PS000
HLMP-EG26-QT000
HLMP-EG26-RU000
1000
1300
1650
765
1000
1300
765
1000
1300
3700
4800
6300
3700
4800
6300
2200
2900
2200
2200
2900
2900
2900
3700
3700
3700
4800
6300
2900
3700
4800
2900
3700
4800
Lamps Without Standoffs
on Leads
(Outline Drawing A)
HLMP-EH15-QT000
Lamps With Standoffs
on Leads
(Outline Drawing B)
HLMP-EH17-QT000
HLMP-EH17-RU000
HLMP-EH17-SV000
HLMP-EG17-QT000
HLMP-EG17-RU000
HLMP-EG17-SV000
HLMP-EL26-NR000
HLMP-EL26-PS000
Red-Orange 615
15°
Red 626
HLMP-EH15-RU000
HLMP-EH15-SV000
HLMP-EG15-QT000
HLMP-EG15-RU000
HLMP-EG15-SV000
HLMP-EL24-NR000
HLMP-EL24-PS000
HLMP-EL24-QR000
HLMP-EL24-QRK00*
Amber 590
HLMP-EL24-QS000
HLMP-EL24-QSK00*
HLMP-EL24-QS400**
HLMP-EL24-QT000
23°
Orange 605
HLMP-EL24-QTK00*
HLMP-EJ24-QT000
HLMP-EJ24-RU000
HLMP-EJ24-SV000
HLMP-EH24-PS000
Red-Orange 615
HLMP-EH24-QT000
HLMP-EH24-RU000
HLMP-EG24-PS000
Red 626
HLMP-EG24-QT000
HLMP-EG24-RU000
Notes:
1. The luminous intensity is measured on the mechanical axis of the lamp package.
2. The optical axis is closely aligned with the package mechanical axis.
3. The dominant wavelength,
λ
d
, is derived from the CIE Chromaticity Diagram and represents the color of the lamp.
4.
θ
1/2
is the off-axis angle where the luminous intensity is one half the on-axis intensity.
5. The intensity of narrow viewing angle lamps is measured at the intensity peak.
Part numbers in
bold
are recommended for new designs.
*HLMP-xLxx-xxK00 are selected to amber color bins 2 and 4 only.
**HLMP-xLxx-xx400 are selected to amber color bin 4 only.
5
Device Selection Guide
(Continued)
Typical
Viewing
Angle
2θ
1
/
2
(Deg.)
[4]
Color and
Dominant
Wavelength
(nm), Typ.
[3]
Luminous
Intensity Iv (mcd)
[1,2]
@ 20 mA
Min.
Max.
450
590
765
765
765
765
765
HLMP-EL32-PS000
765
765
HLMP-EJ32-NR000
HLMP-EJ32-PS000
HLMP-EJ32-QT000
HLMP-EH32-MQ000
HLMP-EH32-NR000
HLMP-EH32-PS000
HLMP-EG32-MQ000
590
765
1000
450
590
765
450
590
HLMP-EG32-NR000
590
765
765
HLMP-EG32-PS000
765
1730
2200
1730
1730
2200
2200
2200
2900
2900
2200
2900
3700
1730
2200
2900
1730
1730
2200
1730
2200
2900
Lamps Without Standoffs
on Leads
(Outline Drawing A)
HLMP-EL30-MQ000
HLMP-EL30-NR000
HLMP-EL30-PQ000
HLMP-EL30-PQK00*
Lamps With Standoffs
on Leads
(Outline Drawing B)
HLMP-EL32-MQ000
HLMP-EL32-NR000
Amber 590
HLMP-EL30-PR000
HLMP-EL30-PR400**
HLMP-EL30-PRK00*
HLMP-EL30-PS000
HLMP-EL30-PSK00*
HLMP-EJ30-NR000
30°
Orange 605
HLMP-EJ30-PS000
HLMP-EJ30-QT000
HLMP-EH30-MQ000
Red-Orange 615
HLMP-EH30-NR000
HLMP-EH30-PS000
HLMP-EG30-MQ000
HLMP-EG30-NQ000
Red 626
HLMP-EG30-NR000
HLMP-EG30-PQ000
HLMP-EG30-PR000
HLMP-EG30-PS000
Notes:
1. The luminous intensity is measured on the mechanical axis of the lamp package.
2. The optical axis is closely aligned with the package mechanical axis.
3. The dominant wavelength,
λ
d
, is derived from the CIE Chromaticity Diagram and represents the color of the lamp.
4.
θ
1/2
is the off-axis angle where the luminous intensity is one half the on-axis intensity.
5. The intensity of narrow viewing angle lamps is measured at the intensity peak.
Part numbers in
bold
are recommended for new designs.
*HLMP-xLxx-xxK00 are selected to amber color bins 2 and 4 only.
**HLMP-xLxx-xx400 are selected to amber color bin 4 only.
