IDC
Industry compatible
Competitively priced
Gold Plated contacts
2.0mm Pitch

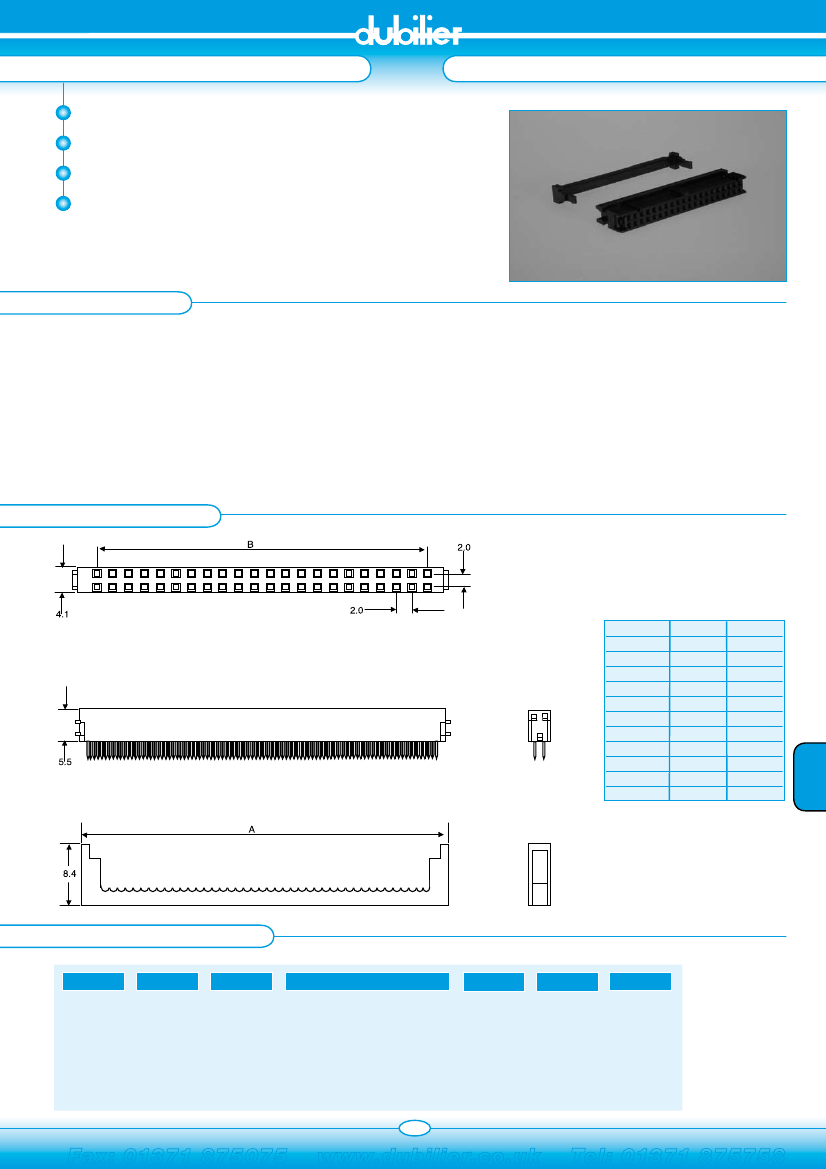

IDC CABLE SOCKET 2mm PITCH
SPECIFICATION
Material & Finish
Contact Material:
Insulator Material:
Current Rating:
Contact Resistance:
Insulator Resistance:
Dielectric withstanding
Voltage:
Operating Temperature:
Phosphor Bronze
PBT & Glass - Fibre Reinforced UL -94V-0
1 A DC
30mΩ Max
3000mΩ Min
500v AC for one minute
-40˚C to + 105˚C
OUTLINE DRAWING
POSITION A B
20
25.20
18.00
22
27.20
20.00
24
29.20
22.00
26
31.20
24.00
30
35.20
28.00
34
39.20
32.00
36
41.20
34.00
40
45.20
38.00
44
49.20
42.00
50
55.20
48.00
68
73.20
66.00
SECTION 15
ORDERING INFORMATION
DBC
Dubilier
Connectors
IDC
IDC
Connectors
5
Series
20=20way
22=22way
24=24way
26=26way
30=30way
34=34way
06
Nº of Ways
36=36way
40=40way
44=44way
50=50way
68=68way
A
Contact Material
Bronze
S
Contact Plating
S =Selective
Gold
1
Colour
1=Black
329
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
