CTLQ1212NF-1R5N datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CTLQ1212NF-1R5N

CTLQ1212NF-1R5N: DescriptionGeneral Purpose Inductor, 1.5uH, 30%, 1 Element, SMD, 1212, CHIP, 1212, ROHS COMPLIANT; CategoryPassive components inductor; File Size566KB，1 Pages; ManufacturerCT [ Central Technologies ]; Environmental Compliance

Download Datasheet Parametric View All

CTLQ1212NF-1R5N Overview

General Purpose Inductor, 1.5uH, 30%, 1 Element, SMD, 1212, CHIP, 1212, ROHS COMPLIANT

CTLQ1212NF-1R5N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CT [ Central Technologies ]
package instruction	1212
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1212
DC Resistance	0.096 Ω
Nominal inductance(L)	1.5 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CTLQ1212NF
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
self resonant frequency	140 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	1 MHz
Tolerance	30%

Preview

Download Datasheet

View All

SMD Power Inductor

ctparts.com

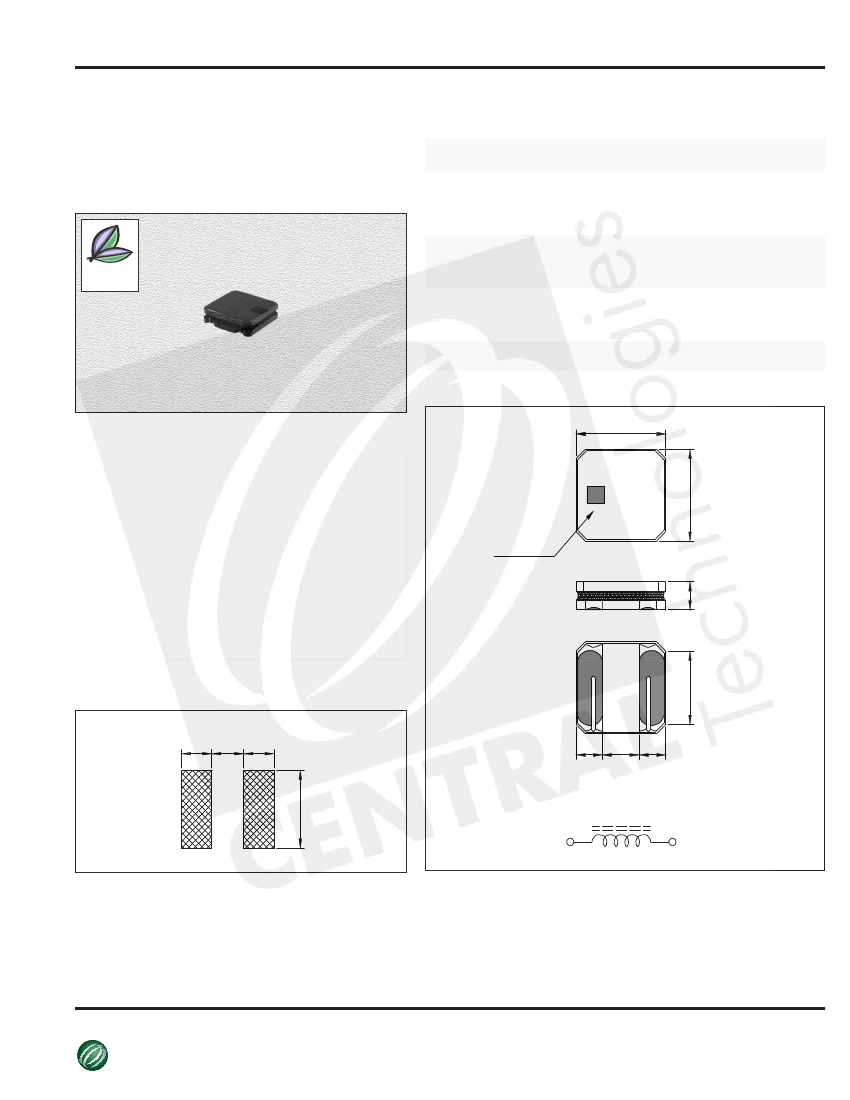

SPECIFICATIONS

CTLQ1212NF

Series

From 1.0 µH to 47 µH

Not shown at actual size.

Part Numbers indicate tolerance available.

M = ±20%, N = ±30%

L Test

Freq.

(MHz)

1.0

DCR

Typ.

(Ω)

0.065

0.080

0.095

0.160

0.190

0.300

0.450

0.740

0.980

1.550

2.000

DCR

Max.

(Ω)

0.078

0.096

0.114

0.192

0.228

0.360

0.540

0.888

1.176

1.860

2.400

SRF

Min.

(MHz)

180

140

100

Irms

Typ.

(A)

1.700

1.650

1.450

1.300

1.100

0.850

0.720

0.560

0.500

0.415

0.320

Isat

Typ.

(A)

1.950

1.600

1.450

1.050

0.950

0.760

0.610

0.480

0.420

0.340

0.270

Part

Number

CTLQ1212NF-1R0N

CTLQ1212NF-1R5N

CTLQ1212NF-2R2M

CTLQ1212NF-3R3M

CTLQ1212NF-4R7M

CTLQ1212NF-6R8M

CTLQ1212NF-100M

CTLQ1212NF-150M

CTLQ1212NF-220M

CTLQ1212NF-330M

CTLQ1212NF-470M

Inductance

(µH)

1.0

1.5

2.2

3.3

4.7

6.8

10.0

15.0

22.0

33.0

47.0

Compliant

RoHS

PHYSICAL DIMENSIONS

Size

inches

3.0±0.10

0.11±0.004

3.0±0.10

0.11±0.004

Max.

1.0

0.04

Typ.

2.7

0.11

0.9±0.20

0.035±0.008

1.2±0.20

0.05±0.008

CHARACTERISTICS

Description:

SMD power inductor.

Applications:

DC/DC converter, cell phones, HDD, DVC, DSC,

PDA, LCD display, etc.

Operating Temperature:

-40°C to +105°C

Inductance Tolerance:

M = ±20%, N = ±30%

Irms:

Based on temperature rise 40°C typ.

Isat:

Based on

ΔL/L0A=30%

typ.

Packaging:

Tape & Reel

Testing:

Tested on a HP4285A at 1MHz, 0.1V

Miscellaneous:

RoHS Compliant.

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

Marking

PAD LAYOUT

Unit: mm

1.0

1.2

1.0

2.7

09.14.09

CENTRAL

Manufacturer of Passive Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice

TECHNOLOGIES
