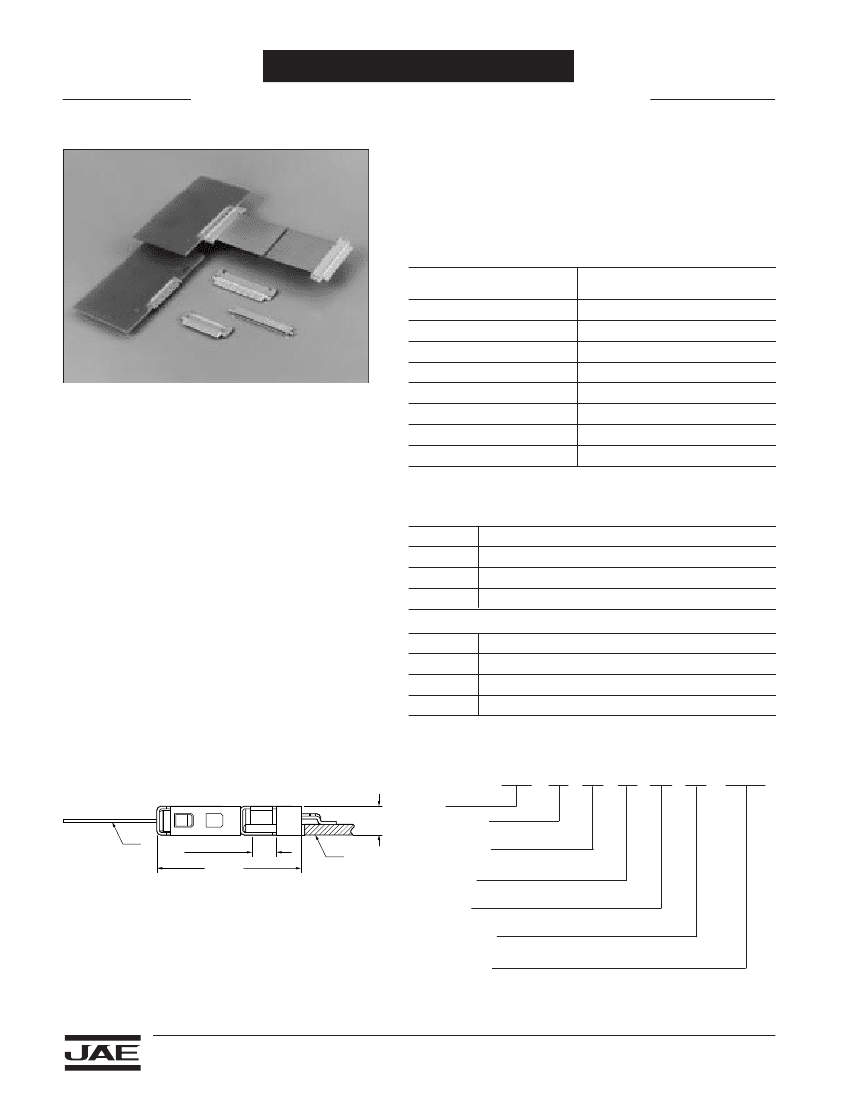

FI-X SERIES CONNECTORS
1.0mm (.039") Contact Spacing, PCB-to-Cable Connectors for FPC
• • • • • • • • • • • • • •
The FI-X Series connectors are designed for thin LCD interface
applications, and are compatible with high-speed differential
transmissions. They are ideal for use in compact notebook PCs,
and other applications where size and weight are critical
considerations.
GENERAL SPECIFICATIONS
Number of Contacts
Contact Spacing
Applicable FPC
Current Rating
Voltage Rating
Dielectric Withstanding Voltage
Insulation Resistance
Contact Resistance
Operating Temperature
14, 20, D7
(D7 for differential transmission)
1mm (.039")
0.14mm (.005")
1 Amp
200 (AC and DC)
500 VAC r.m.s. (for one minute)
100 megohms min.
40 milliohms max.
-40°C to +80°C
FEATURES
• Compatible with high-speed differential
transmission and high-level impedance
matching (90 to 100 ohms)
• Greatly improved ground condition which is
directly related to EMI characteristics
• Bottom type structure provides 1.5mm (.059")
connector height and 1mm (.039") height above
the PCB
• 1mm (.039") contact pitch with impedance
matching
• FPC provides stable grounding to the PCB
• Compatible with a variety of cables such as thin
wire coaxial cables and flex circuitry
MATERIALS AND FINISHES
FI-XB**S-HF10 (Board Connector)
Description
Insulator
Shell
Contact
Materials/Finishes
Thermal Plasticity Resin (UL94V-0)
Copper Alloy/Tin Plating
Copper Alloy/Gold Plating over Nickel, Tin Plating
FI-X**M (Cable Connector)
Insulator
Shell
Slider
Contact
Thermal Plasticity Resin
Copper Alloy/Tin Plating
Thermal Plasticity Plating
Copper Alloy/Gold Plating over Nickel, Tin-Lead Plating
ORDERING INFORMATION
Connector Profile (Ref.)
1
(.039)
FPC
1.3 (.051)
CONTACT STROKE
7.9 (.311)
PCB
FI-X
B
**
S
HF
10 – E3000
Series
Mounting Type
B – Bottom Mount
No. of Contacts
14, 20, D7 (D: Differential Pairs)
Contact type
S- Socket
Termination
HF – Right Angle
Mounting Height
1mm (.039")
Embossed Tape
E3000 – 3,000 Pieces/Reel
Dimensions and specifications subject to change without notice.
Dimensions in mm (inches).
