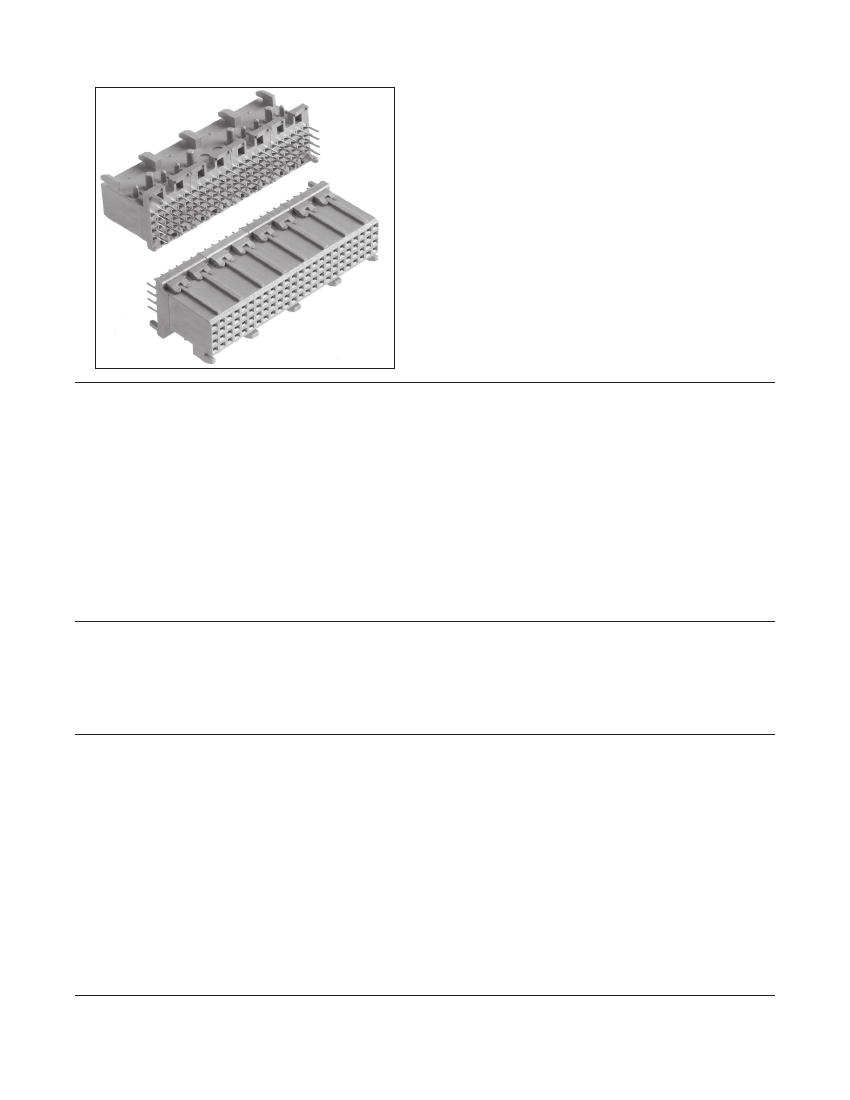

Offset dual-beam contact minimizes insertion force
High-profile/high pin count
Ideal for parallel stacking applications
Vertical receptacle
Eliminates internal cabling
Meets IEC 61076-4-104 Futurebus+
®
global standard
See the Regulatory Information Appendix (RIA)
in the “RoHS compliance” section of
www.3Mconnector.com for compliance
information (RIA E1 & C1 apply)
TS-1118-B
Sheet 1 of 4
Physical
Material: High Temp LCP
Flammability: UL 94V-0
Color: Beige
Insulation:
Contact:
Underplating: 50 µ" [1.27 µm) Nickel
Plating:
Material: Phosphor Bronze
Wiping Area: See Ordering Information
Solder Tails: See Ordering Information
Electrical
Insulation Resistance:
10
3
MΩ
Withstanding Voltage:
1000 V
AC
Current Rating:
Signal: 1.5 A – All contacts simultaneously
Environmental
Temperature Rating:
-55°C to +125°C
Process Temperature Rating:
260°C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
MetPak is a trademark of 3M Company.
Futurebus+ is a registered trademark of the Institute of Electrical and Electronic Engineers, Inc. (IEEE)
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Stacking Socket
2 mm 4/5-Row, Vertical, Solder or Press-Fit Tail

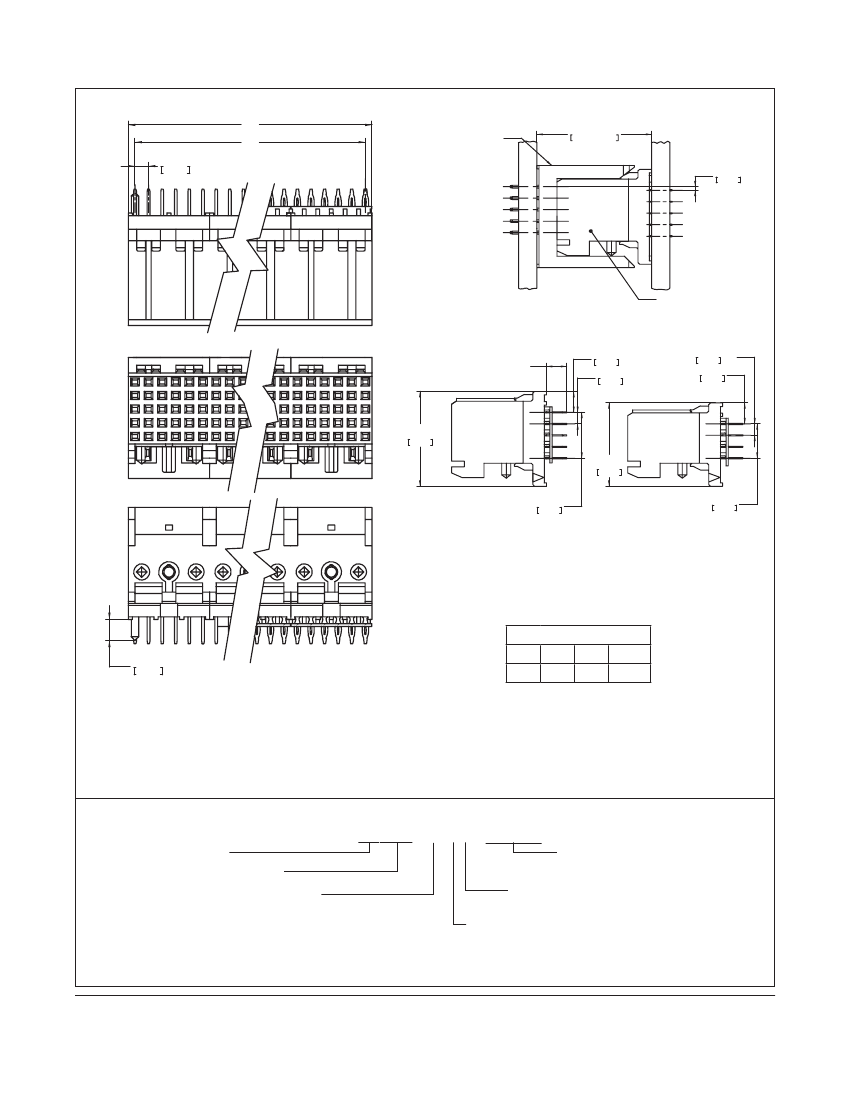

"A"
"B"
2.00
.079
TYP.
MP2-HXXX-XXXX-XXXX
20.00 ±.38
.787 ±.015
MP2 Series
0.63
.025
MP2-SSXXX-X1XX-XXXX
MATED WITH MP2-HXXX-XXXX-XXXX
X
ROW
E
D
C
B
A
POSITION
2 1
"C" TAIL LENGTH
3.63
.143
2.00
.079
2.00
.079 3X
3.63
.143
4X
16.50
.650
14.50
.571
8.00
.315

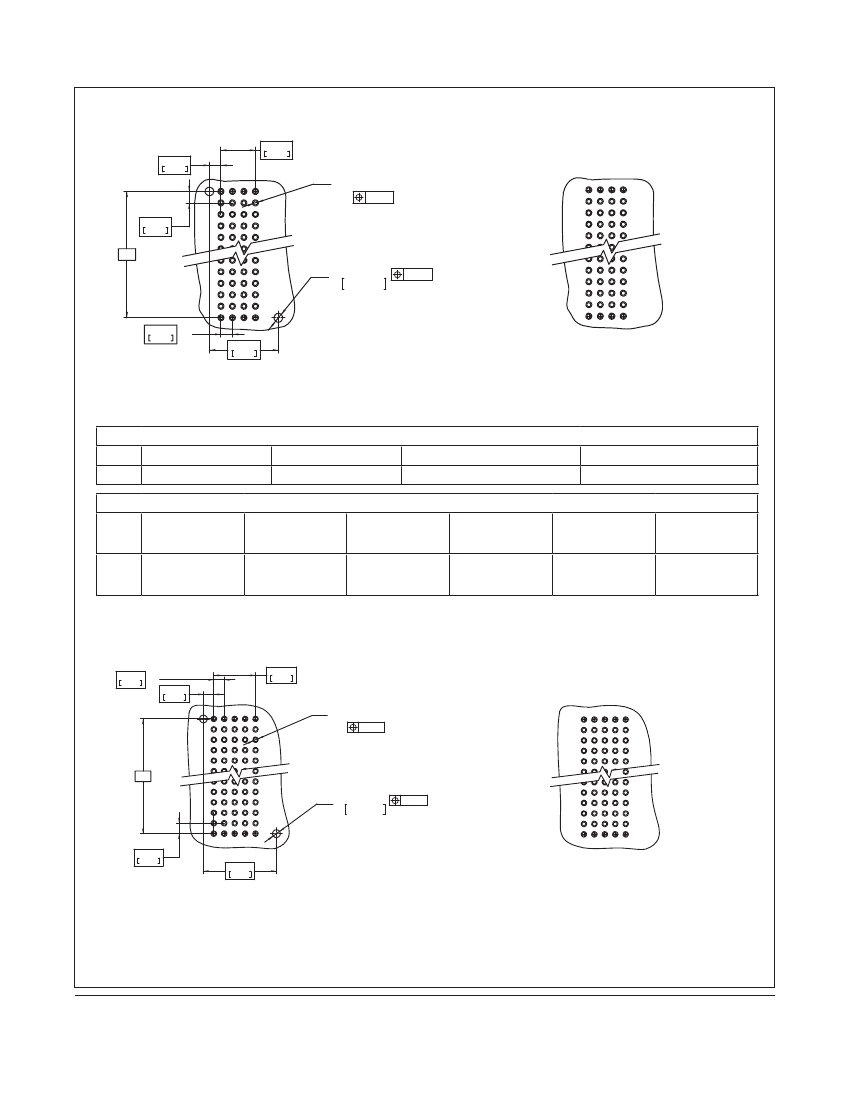

6.00
.236
5 ROW PRODUCT
4 ROW PRODUCT
mm
[inch]
Tolerance Unless Noted
3.02
.119
0
0.0
±0.3
0.00
±0.13
SOLDER TAIL OR
PRESS FIT
mm
±3
[ ] Dimensions for Reference
Only
Notes:
1. Refer to IEC 61076-4-104 Futurebus+
®
global standard.
2. “Press Fit” describes a contact tail having a compliant section designed to make a reliable electrical connection with a
plated through-hole (PTH) in a printed circuit board, typically a “back plane.”
Ordering Information
MP2 - SSXXX - X1XX - XXXXX
Stacking Socket
Contact Count
(See Table 1)
Plating Options
(See Table 3)
Rows
4 = 4 Rows
5 = 5 Rows
Tail Length
(See Table 2)
Termination Style
P = Press-Fit (with Tail Cover)
S = Solder Tail
TS-1118-B
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Stacking Socket
2 mm 4/5-Row, Vertical, Solder or Press-Fit Tail
Table 1 - Connector & Row Lengths
Pin Count
024
048
072
096
120
144
168
192
030
060
090
120
150
180
210
240
Dim. “A”
mm [inch]
11.95 [0.471]
23.95 [0.943]
35.95 [1.415]
47.95 [1.889]
59.95 [2.36]
71.95 [2.833]
83.95 [3.305]
95.95 [3.778]
11.95 [0.471]
23.95 [0.943]
35.95 [1.415]
47.95 [1.888]
59.95 [2.361]
71.95 [2.833]
83.95 [3.305]
95.95 [3.778]
Dim “B”
mm [inch]
10.00 [0.394]
22.00 [0.866]
34.00 [1.339]
46.00 [1.811]
58.00 [2.283]
70.00 [2.756]
82.00 [3.228]
94.00 [3.701]
10.00 [0.394]
22.00 [0.866]
34.00 [1.339]
46.00 [1.811]
58.00 [2.283]
70.00 [2.756]
82.00 [3.228]
94.00 [3.701]
Rows
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
Block
Count
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
MP2 Series
Table 2 - Tail Length Options
Contact-to-PC Board Tail
Termination Option No.
Solder
1
*Compliant-Pin Tail
Press-Fit*
1
3.53 [0.139]
Dim. “C”
Table 3 - Plating & Regulatory
Plating Suffix
TG30
Press-Fit Tails*
RIA E2 & C2 apply
Solder Tails
RIA E3 & C2 apply
Plating Composition
0.76 µm [30 µ"] Min. Au Contact Area
2.54 µm [100 µ"] Min. SnPb Tail Area
1.27 µm [50 µ"] Min. Ni all over
0.08 µm [3 µ"] Min. Au Contact Area
0.67 µm [27 µ"] Min. PdNi Contact Area
2.54 µm [100 µ"] Min. SnPb Tail Area
1.27 µm [50 µ"] Min. Ni all over
0.76 µm [30 µ"] Min. Au Contact Area
2.54 µm [100 µ"] Min. Matt Whisker Mitigating Sn Tail Area
1.27 µm [50 µ"] Min. Ni all over
0.08 µm [3 µ"] Min. Au Contact Area
0.67 µm [27 µ"] Min. PdNi Contact Area
2.54 µm [100 µ"] Min. Matt Whisker Mitigating Sn Tail Area
1.27 µm [50 µ"] Min. Ni all over
TR30
RIA E2 & C2 apply
RIA E3 & C2 apply
KR
RIA E1 & C1 apply
RIA E1 & C1 apply
LR
RIA E1 & C1 apply
RIA E1 & C1 apply
*Compliant-Pin Tail
TS-1118-B
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Stacking Socket
2 mm 4/5-Row, Vertical, Solder or Press-Fit Tail
6.00
.236
"D" PLATED THRU HOLE
Ø
MP2 Series
2.00
.079
“D” PLATED THROUGH-HOLE
A1
2.00
.079
TYP.
"B"
0.10
1.50
+.10
-.00
Ø
0.10
.059
+.004
-.000
UNPLATED THRU HOLE
UNPLATED THROUGH-HOLE
Ø
2.00
.079
3X
12.00
.472
RECOMMENDED 4 ROW SOLDER
TAIL PCB HOLE MOUNTING PATTERN
RECOMMENDED 4 ROW PRESS-FIT
PCB HOLE MOUNTING PATTERN
Table 4 – HOLE PLATING For TG30 and TR30 FINISHES ONLY
HOLE
“D”
Finished Dia. MM [in]
0.65-0.80 [.0256-.0315]
Cu Thickness [mm [in]
0.025 [.001] min.
SnPb Thickness microns [µ"]
15 [600] max.
Drilled Hole Dia. mm [in]
0.81-0.86 [.0319-.0339]
Table 5 – HOLE PLATING For KR and LR FINISHES ONLY
HOLE
Finished Dia.
MM [in]
0.700-0.800
[.0276-.0315]
Cu Thickness [mm
[in]
0.025-0.045
[0.001-0.002]
Immersion Matte
Sn Thickness
microns [µ”]
0.5 - 2.5
[20 - 100]
Electrolytic Au
Thickness
microns [µ"]
0.1 - 0.5
[4 - 20]
OSP ENTEK
Thickness
microns [µ”]
0.2 - 0.5
[8 - 20]
Drilled Hole
Dia. mm [in]
0.830-0.860 [.0330-
.0340] or 0.85 mm
[#66] TWIST DRILL
“D”
2.00
.079
4X
2.00
.079
8.00
.315
A1
“D” PLATED THROUGH-HOLE
"D" PLATED THRU HOLE
Ø
0.10
"B"
1.50
+.10
Ø
0.10
-.00
.059
+.004
-.000
UNPLATED THRU HOLE
UNPLATED THROUGH-HOLE
2.00
.079
TYP.
14.00
.551
RECOMMENDED 5 ROW SOLDER
TAIL PCB HOLE MOUNTING PATTERN
RECOMMENDED 5 ROW PRESS-FIT
PCB HOLE MOUNTING PATTERN
TS-1118-B
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of
ninety (90) days
from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
