Preview

330075: DescriptionPower/Signal Relay, DPDT, Momentary, 0.033A (Coil), 12VDC (Coil), 396mW (Coil), 5A (Contact), 24VDC (Contact), DC Input, AC/DC Output, DIN-Rail Mount,; CategoryMechanical and electronic products relay; File Size107KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/

Download Datasheet Parametric View All

330075 Overview

Power/Signal Relay, DPDT, Momentary, 0.033A (Coil), 12VDC (Coil), 396mW (Coil), 5A (Contact), 24VDC (Contact), DC Input, AC/DC Output, DIN-Rail Mount,

330075 Parametric

Parameter Name	Attribute value
Maker	Weidmuller
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum coil current (DC)	0.033 A
Coil operating voltage (DC)	8.4 V
Coil power	396 mW
Coil resistance	360 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	5A@120VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@24VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	24 V
Contact/Output Power Type	AC/DC
Installation features	DIN-RAIL MOUNT
operating hours	7 ms
Maximum operating temperature	40 °C
Minimum operating temperature	-40 °C
Guideline	CSA
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	4 ms
surface mount	NO
Termination type	CONNECTOR

Preview

Download Datasheet

View All

Datasheet

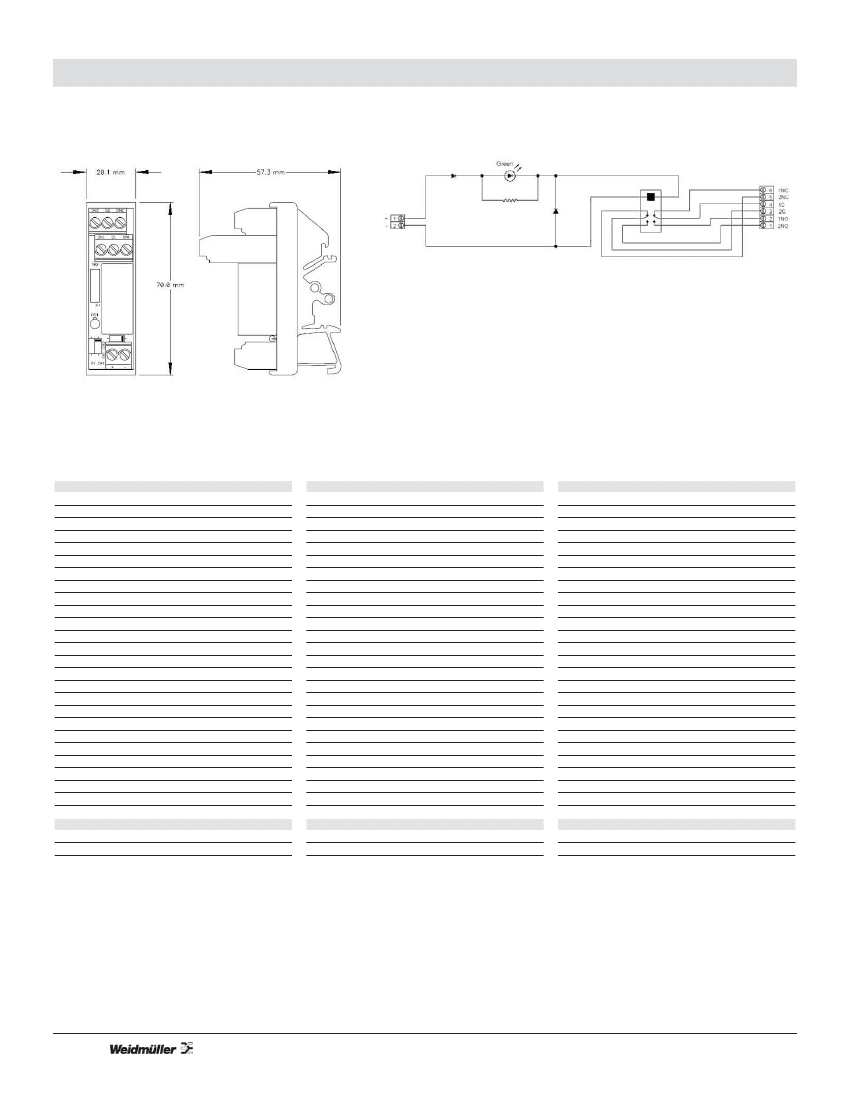

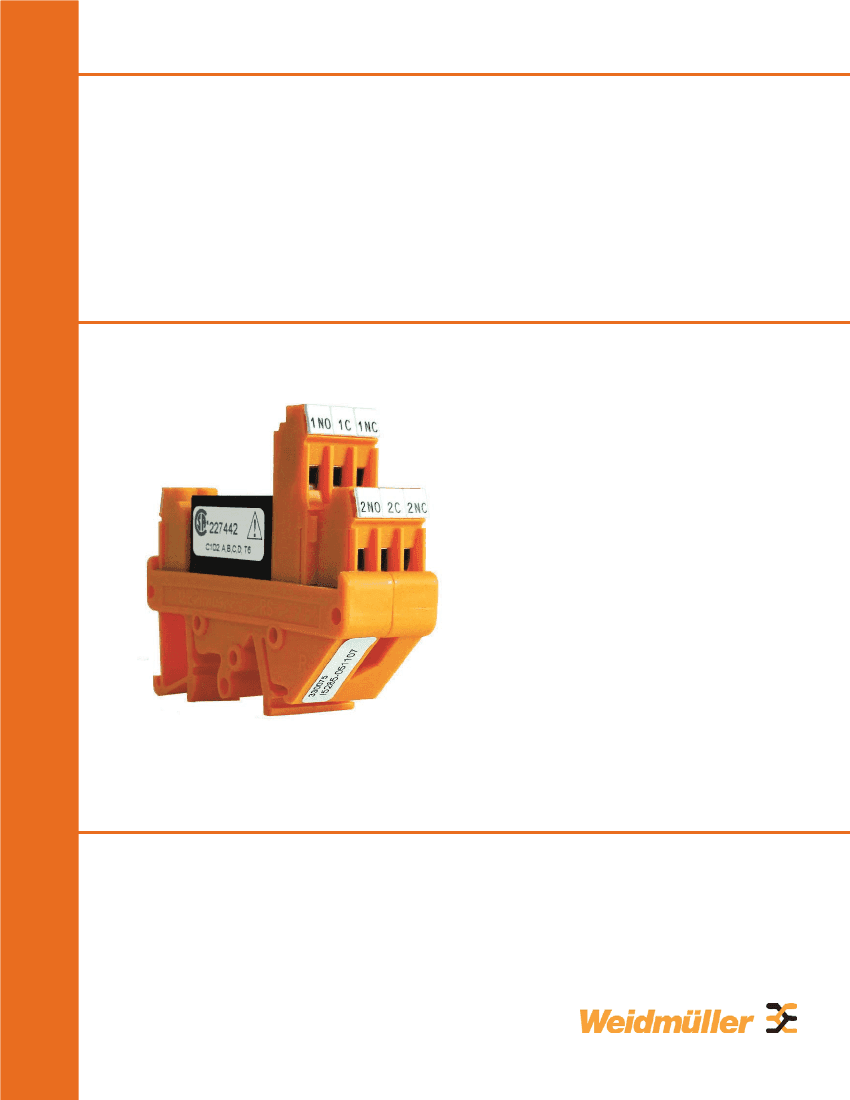

Class 1 Division 2 Certified DPDT (2CO) Relay

This relay module was specifically designed for

Class 1 Division 2 applications. Two changeover

contacts (DPDT), one provided in a compact,

20mm DIN rail mountable package.

Features:

• up to 5A @ 24Vdc/120Vac

• only 20mm wide

• rated for operation at -40ºC

• mounts on TS32 and TS35 DIN rails

• CSA approved, CSA C1D2 approved groups

A, B, C & D, temperature code is T6
