3-1617548-5

Description
POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.015A (COIL), 12VDC (COIL), 180mW (COIL), 1A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
CategoryMechanical and electronic products    relay
File Size109KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

3-1617548-5 Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.015A (COIL), 12VDC (COIL), 180mW (COIL), 1A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

3-1617548-5 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1666979301
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL0
Maximum coil current (DC)0.015 A
Coil power180 mW
Coil resistance800 Ω
Maximum coil voltage (DC)12 V
Coil/Input Power TypeDC
Maximum contact current (AC)1 A
Maximum contact current (DC)1 A
Contact/Output Power TypeAC/DC
Installation featuresTHROUGH HOLE-STRAIGHT
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
Relay actionMOMENTARY
Relay functionDPDT
Relay typePOWER/SIGNAL RELAY
sealHERMETICALLY SEALED
surface mountNO
Termination typeSOLDER
My Account
Tyco Electronics
(C hange)
Se a rch by Ke yword or Pa rt #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
Relays
>
Product Feature Selector
> Product Details

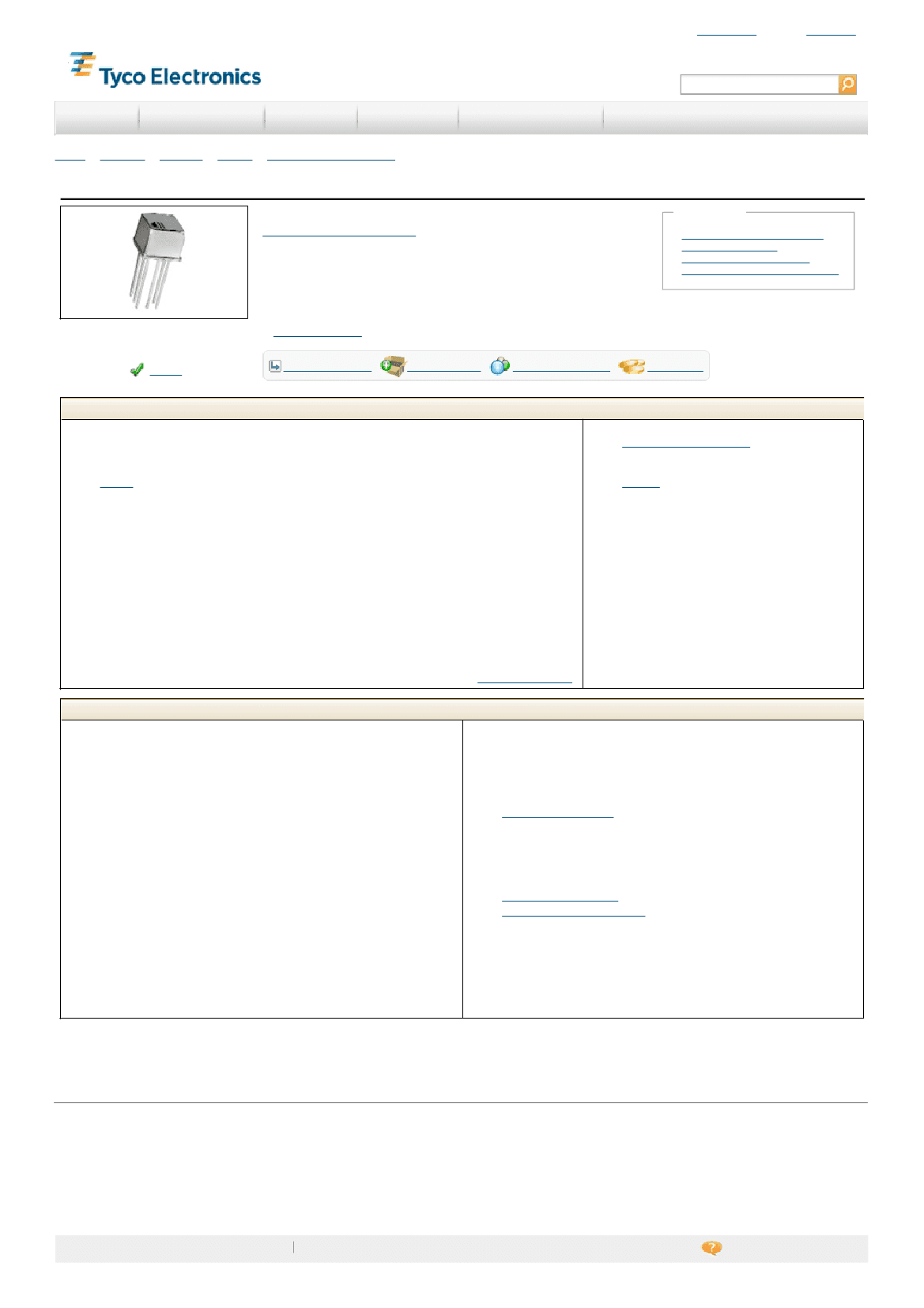

PRMGSCFG-12XW Product Details
Military/Aerospace High Performance Relays
Not EU R oHS or ELV C om plia nt
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
PRMGSCFG-12XW
(3-1617548-5)
T E I nternal N umber: 3 - 1 6 1 7 5 4 8 - 5
Product Highlights:
l
PRMGS .100 Grid Relay Series
l
Input Voltage = 12 VDC
l
C ontact Arrangement = 2 Form C , DPDT, 2 C /O
l
C ontact C urrent Rating = 1 Amps.
l
Non Polarized, Monostable C oil Magnetic System
View all Features
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Active
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
RELAY
(PDF, English)
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Termination Type = Long Leads
l
C omment = X Level Testing
Electrical Characteristics:
l
Input Voltage (VDC ) = 12
l
C ontact C urrent Rating (Amps.) = 1
l
C oil Polarity Protection Diode = Without
l
Transistor Driver = Without
l
C oil Resistance (?) = 800
l
MOSFET Driver = Without
l
C oil Power Measurement = Milliwatts
l
C oil Power, Nominal (mW) = 180
l
Actuating System = DC
l
Shock = 75 G's, 6ms
l
Vibration = 30G's, 10 to 3000Hz
Body Related Features:
l
Series = PRMGS .100 Grid Relay
Contact Related Features:
l
Mounting Options = PC Board
l
Enclosure = Hermetically Sealed
l
Pin C onfiguration = .175" Dia. Mounting Pad, Ground Pin
Configuration Related Features:
l
C ontact Arrangement
= 2 Form C , DPDT, 2 C /O
l
C oil Magnetic System = Non Polarized, Monostable
l
C oil Suppression Diode = Without
Industry Standards:
l
Government/Industry Qualification = No
l
RoHS/ELV C ompliance
= Not ELV/RoHS compliant
l
Lead Free Solder Processes
= Not suitable for lead free processing
Conditions for Usage:
l
Temperature Range (?C ) = -65 – +125
Other:
l
Brand = C II
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
Corporate Information
Who We Are
Investors
News Room
Supplier Portal
C areers
Quick Links
C heck Distributor Inventory
C ross Reference
Find Documents & Drawings
Product C ompliance Support C enter
Site Map
Priva cy Policy
Customer Support
Email or C hat with Us
Find a Phone Number
Search Knowledge Base
Manage Your Account
© 2009 Tyco Ele ctronics All R ights R e se rve d
Provide W e bsite Fe e dba ck
