3-1423159-0

Description
ON-DELAY RELAY, DPDT, MOMENTARY, 125VDC (COIL), 60-600s, PANEL MOUNT
CategoryMechanical and electronic products    relay
File Size110KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

3-1423159-0 Overview

ON-DELAY RELAY, DPDT, MOMENTARY, 125VDC (COIL), 60-600s, PANEL MOUNT

3-1423159-0 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codecompliant
ECCN codeEAR99
Maximum adjustable time delay600 s
Minimum adjustable time delay60 s
body width65.3 mm
body height71.9 mm
Body length or diameter114.8 mm
Maximum coil voltage (DC)125 V
Contact (AC) maximum rated R load10A@240VAC
Maximum contact current (AC)10 A
Maximum contact voltage (AC)240 V
Contact/Output Power TypeAC
Manufacturer's serial number1423159
Installation featuresPANEL MOUNT
Maximum operating temperature75 °C
Minimum operating temperature-30 °C
physical size114.8mm x 65.3mm x 71.9mm
GuidelineCE; CSA; FM; UL
Relay actionMOMENTARY
Relay functionDPDT
Relay typeON-DELAY RELAY
surface mountNO
Termination typeSCREW
My Account
Tyco Electronics
(C hange)
Se a rch by Ke yword or Pa rt #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
Relays
>
Product Feature Selector
> Product Details

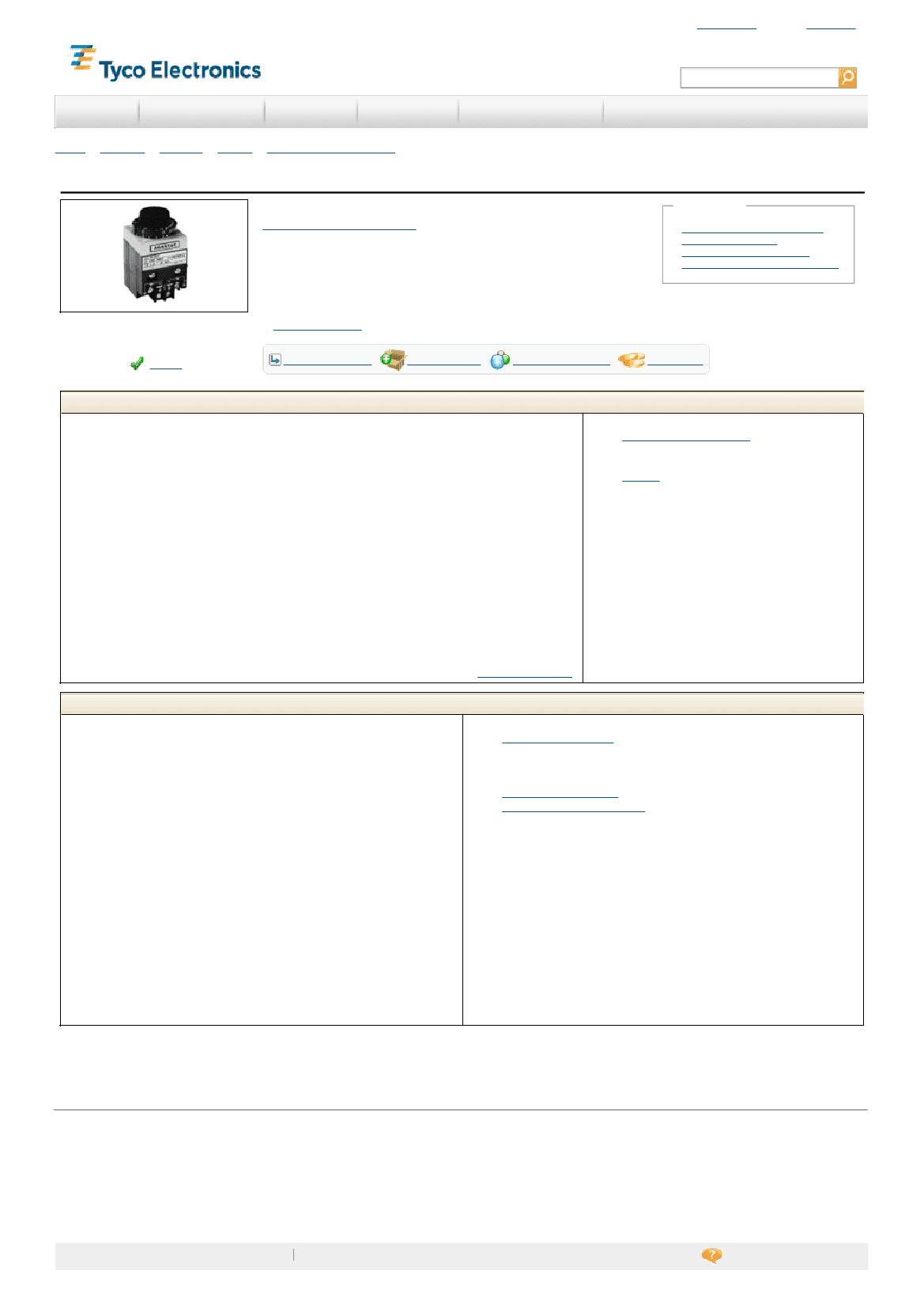

7012PFL Product Details
Time Delay Relays
Not EU R oHS or ELV C om plia nt
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
7012PFL
(3-1423159-0)
T E I nternal N umber: 3 - 1 4 2 3 1 5 9 - 0
Product Highlights:
l
7000 Electropneumatic Timing - Industrial Series
l
Input Voltage = 125 VDC
l
C ontact Arrangement = 2 Form C , DPDT, 2 C /O
l
C ontact Rating = 10A @ 240 VAC
l
Mounting Options = Panel Mount
View all Features
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Active
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
List all Documents
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Termination Type = Screw Terminal
Electrical Characteristics:
l
Input Voltage (VDC ) = 125
l
C ontact Rating = 10A @ 240 VAC
Body Related Features:
l
Series = 7000 Electropneumatic Timing - Industrial
Contact Related Features:
l
Mounting Options = Panel Mount
l
Mode of Operation = On-Delay
l
Delay Time = 1 minute to 10 minutes
l
Type of C ontrol = Knob
l
Repeatability, Max. = ± 10%
l
Approved Standards = C E Approved, C SA C ertified, FM Approved,
UL Listed
l
Option = Auxiliary Switch - Instant Transfer
l
Approx. Dimensions (L x W x H) (mm [in]) = 114.80 x 65.30 x 71.90
[4.523 x 2.572 x 2.832]
Configuration Related Features:
l
C ontact Arrangement
= 2 Form C , DPDT, 2 C /O
l
Multiple Timing Ranges = Without
Industry Standards:
l
RoHS/ELV C ompliance
= Not ELV/RoHS compliant
l
Lead Free Solder Processes
= Not relevant for lead free process
Conditions for Usage:
l
Temperature Range (?C ) = -30 – +75
Other:
l
Brand = Agastat
Additional Information:
l
Product Line Information
