3312131271 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 3312131271

3312131271: DescriptionDry Reed Relay, SPST, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 2A (Contact), 500VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size130KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric View All

3312131271 Overview

Dry Reed Relay, SPST, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 2A (Contact), 500VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

3312131271 Parametric

Parameter Name	Attribute value
Maker	Standex
Reach Compliance Code	unknown
ECCN code	EAR99
body width	5.8 mm
body height	8 mm
Body length or diameter	20.5 mm
Maximum coil current (DC)	0.024 A
Coil operating voltage (DC)	8.4 V
Coil power	288 mW
Coil release voltage (DC)	1.8 V
Coil resistance	550 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	2A@500VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@500VDC
Maximum contact voltage (AC)	500 V
Maximum contact voltage (DC)	500 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	3312131271
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	1.2 ms
Maximum operating temperature	55 °C
Minimum operating temperature	-20 °C
physical size	20.5mm x 5.8mm x 8mm
Relay action	MOMENTARY
Relay function	SPST
Relay type	DRY REED RELAY
release time	1 ms
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.com

Item No.:

3312131271

Item:

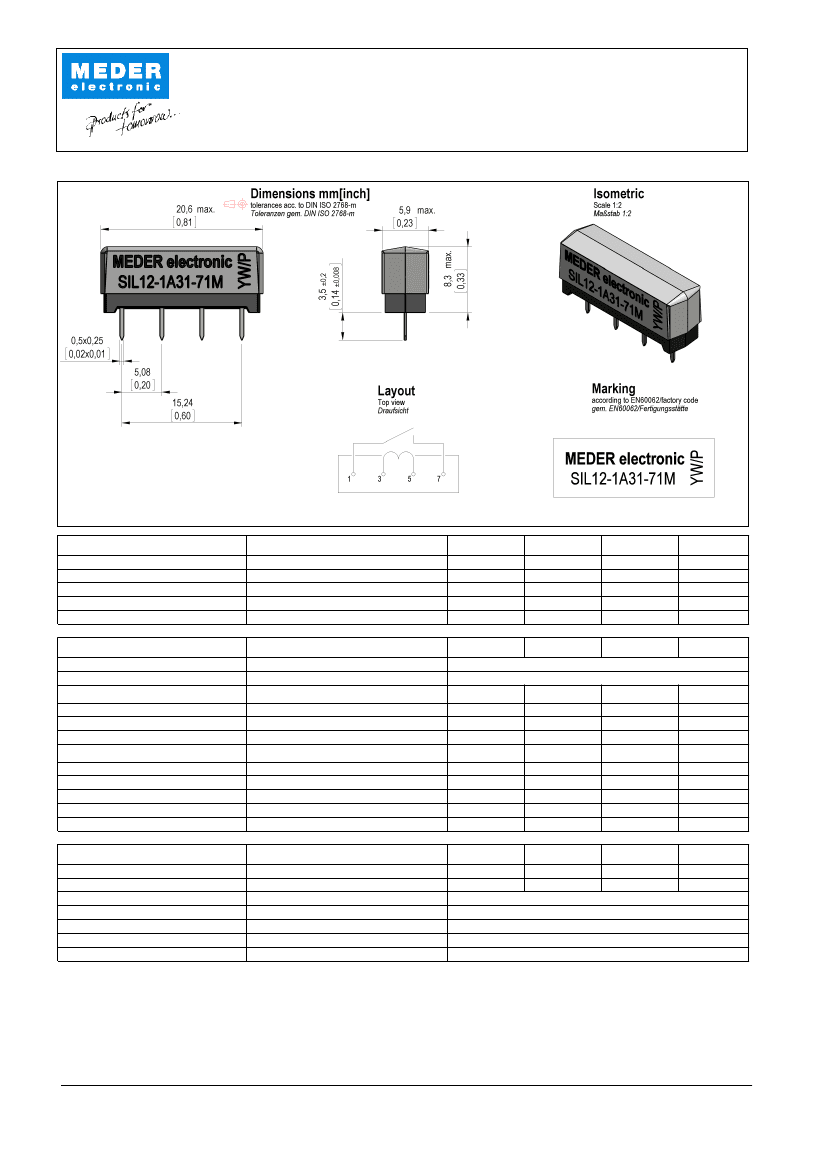

SIL12-1A31-71M

Coil Data at 20 °

Coil resistance

Coil voltage

Rated power

Pull-In voltage

Drop-Out voltage

Conditions

Min

Typ

Max

Unit

Contact data 31

Contact-material

Switching suitability

Contact rating

Switching voltage

Switching current

Carry current

Contact resistance static

Insulation resistance

Breakdown voltage

Operate time incl. bounce

Release Time

Capacity

Conditions

independent on position

up to 500V max. 50W, with 1000V max. 5W

Min

Typ

bounce free

Max

Unit

DC or Peak AC

Start Value

" #

RH <45 %, 100 V test voltage

according to IEC 255-5

measured with 40% overdrive

measured with no coil excitation

@ 10 kHz across open switch

(

Special Product Data

Dielectric Strength Coil/Contact

Insulation resistance Coil/Contact

Housing material

Connection pins

Magnetic Shield

Reach / RoHS conformity

Remark

Conditions

according to EN 60255-5

RH <45%, 200 VDC measuring voltage

Min

Typ

Max

)

Unit

epoxy resin

CuFe2P, tin plated

yes

Check conditions at high packing density! (Rth)

Modifications in the sense of technical progress are reserved

Designed at:

Last Change at:

06.09.07

28.09.11

Last Change by:

THAUKE

Approval at:

06.09.07

28.09.11

Approval by:

RRIPPL

CRUF

Version:
