3SCV5002D2 datasheet, PDF - EEWORLD Datasheet

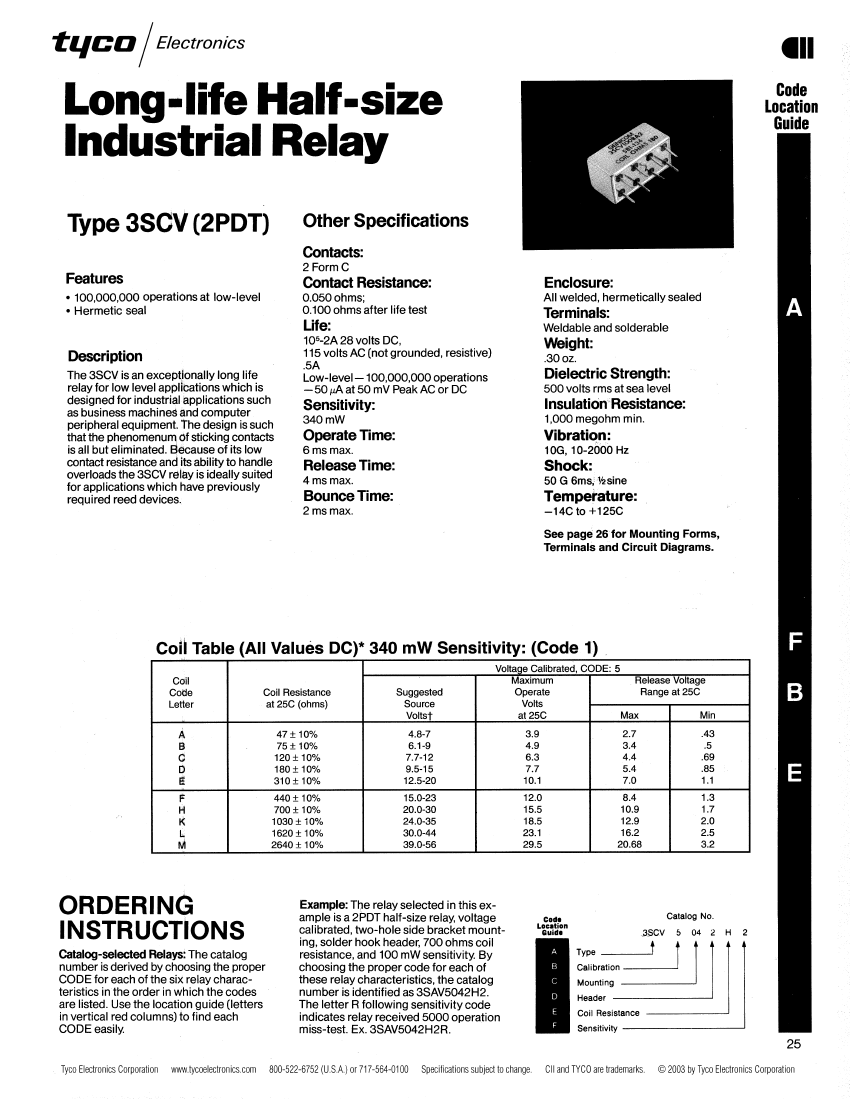

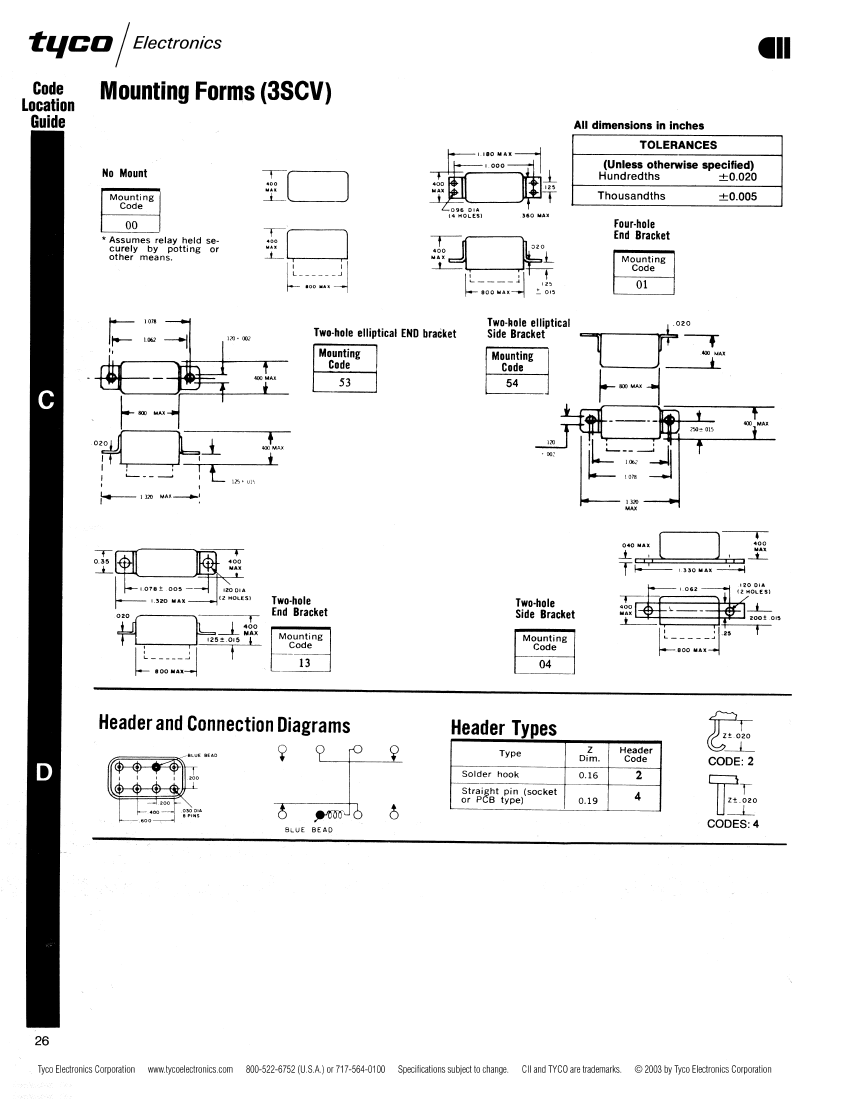

3SCV5002D2: DescriptionPOWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.08A (COIL), 15VDC (COIL), 1200mW (COIL), PANEL MOUNT; CategoryMechanical and electronic products relay; File Size224KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

3SCV5002D2 Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.08A (COIL), 15VDC (COIL), 1200mW (COIL), PANEL MOUNT

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
body width	15.74 mm
body height	15.74 mm
Body length or diameter	31.5 mm
Maximum coil current (DC)	0.08 A
Coil operating voltage (DC)	7.7 V
Coil power	1200 mW
Coil release voltage (DC)	5.4 V
Coil resistance	180 Ω
Maximum coil voltage (DC)	15 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Electrical life	100000000 Cycle(s)
Manufacturer's serial number	3SCV
Installation features	PANEL MOUNT
operating hours	8 ms
Maximum operating temperature	125 °C
Minimum operating temperature	-14 °C
physical size	31.5mm X 15.74mm X 15.74mm
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	6 ms
seal	HERMETICALLY SEALED
surface mount	NO
Termination type	SOLDER
