MDA2550 datasheet, PDF - EEWORLD Datasheet

MDA2550: DescriptionBRIDGE RECTIFIER,1-PHASE FULL-WAVE,50V V(RRM),BR-3Q; CategoryDiscrete semiconductor diode; File Size70KB，1 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

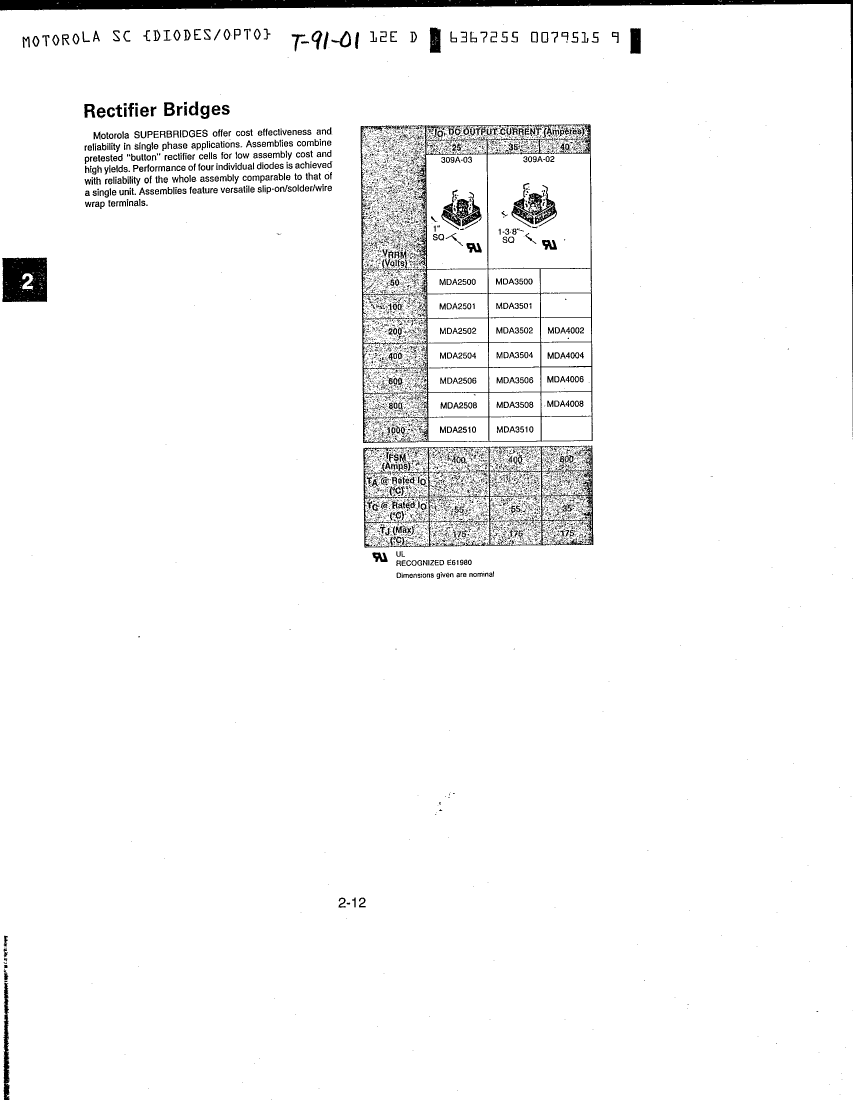

MDA2550 Overview

BRIDGE RECTIFIER,1-PHASE FULL-WAVE,50V V(RRM),BR-3Q

Parameter Name	Attribute value
Maker	NXP
package instruction	S-PUFM-D4
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
Maximum non-repetitive peak forward current	400 A
Number of components	4
Maximum operating temperature	175 °C
Maximum output current	25 A
Maximum repetitive peak reverse voltage	50 V
surface mount	NO

	MDA2550	MDA2551	MDA3551
Description	BRIDGE RECTIFIER,1-PHASE FULL-WAVE,50V V(RRM),BR-3Q	BRIDGE RECTIFIER,1-PHASE FULL-WAVE,100V V(RRM),BR-3Q	BRIDGE RECTIFIER,1-PHASE FULL-WAVE,100V V(RRM),BR-3Q
package instruction	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4
Reach Compliance Code	unknown	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1.1 V
Maximum non-repetitive peak forward current	400 A	400 A	400 A
Number of components	4	4	4
Maximum operating temperature	175 °C	175 °C	175 °C
Maximum output current	25 A	25 A	35 A
Maximum repetitive peak reverse voltage	50 V	100 V	100 V
surface mount	NO	NO	NO
Maker	NXP	-	NXP
