BFY405H: DescriptionRF Small Signal Bipolar Transistor, 0.012A I(C), 1-Element, X Band, Silicon, NPN; CategoryDiscrete semiconductor The transistor; File Size71KB，5 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BFY405H Overview

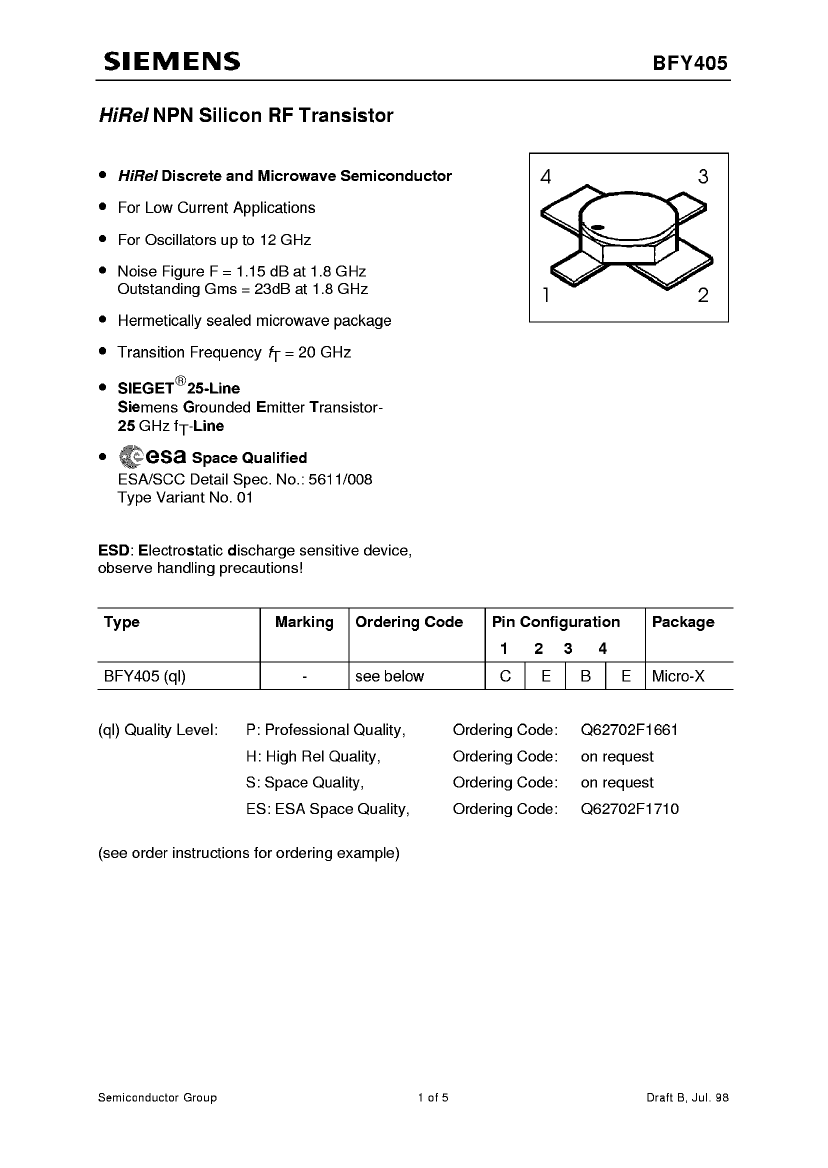

RF Small Signal Bipolar Transistor, 0.012A I(C), 1-Element, X Band, Silicon, NPN

BFY405H Parametric

Parameter Name	Attribute value
Maker	SIEMENS

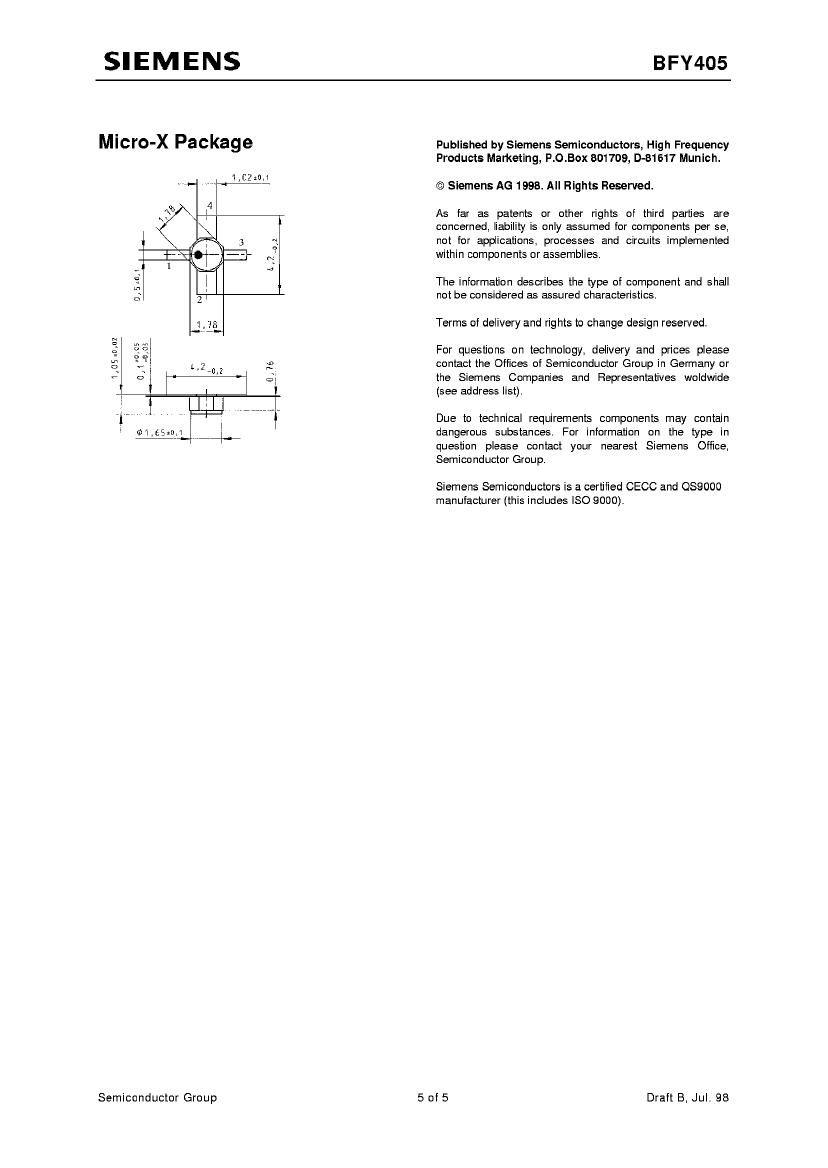

package instruction	DISK BUTTON, O-CRDB-F4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
Shell connection	EMITTER

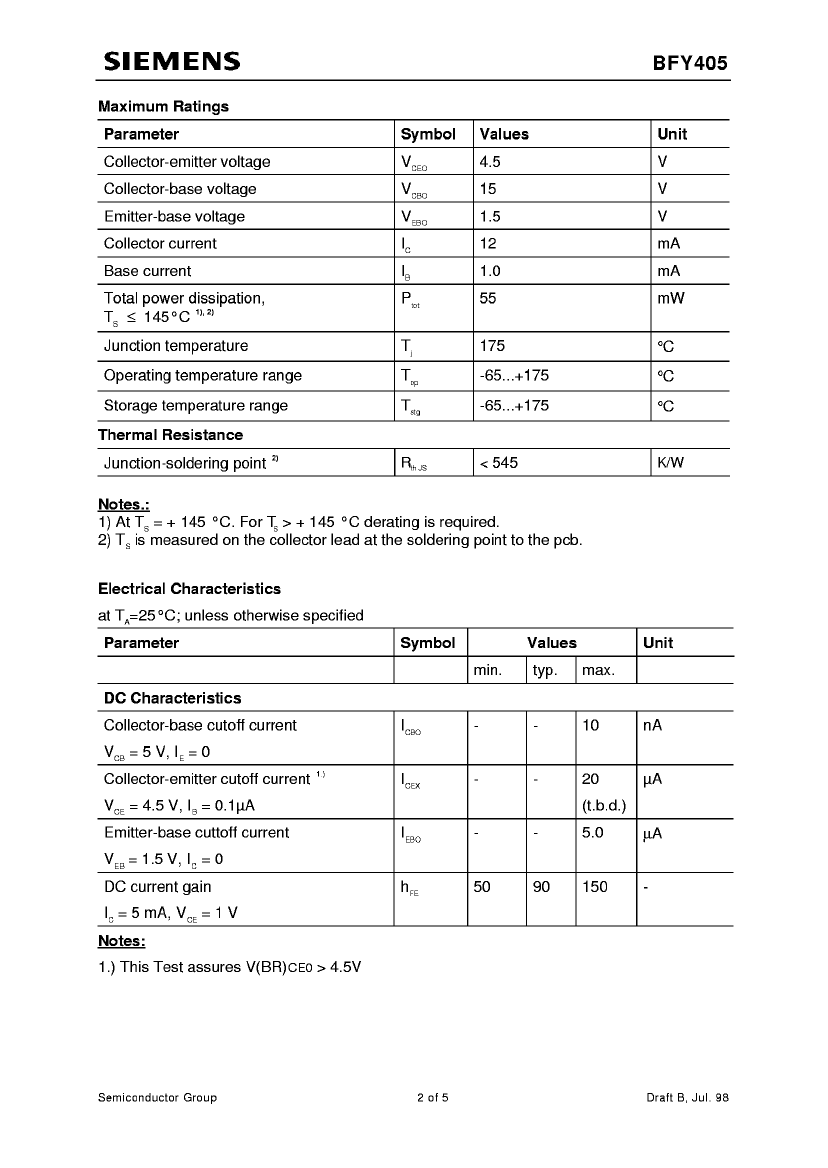

Maximum collector current (IC)	0.012 A
Collector-based maximum capacity	0.9 pF
Collector-emitter maximum voltage	4.5 V
Configuration	SINGLE
highest frequency band	X BAND
JESD-30 code	O-CRDB-F4
Number of components	1
Number of terminals	4
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	RADIAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON

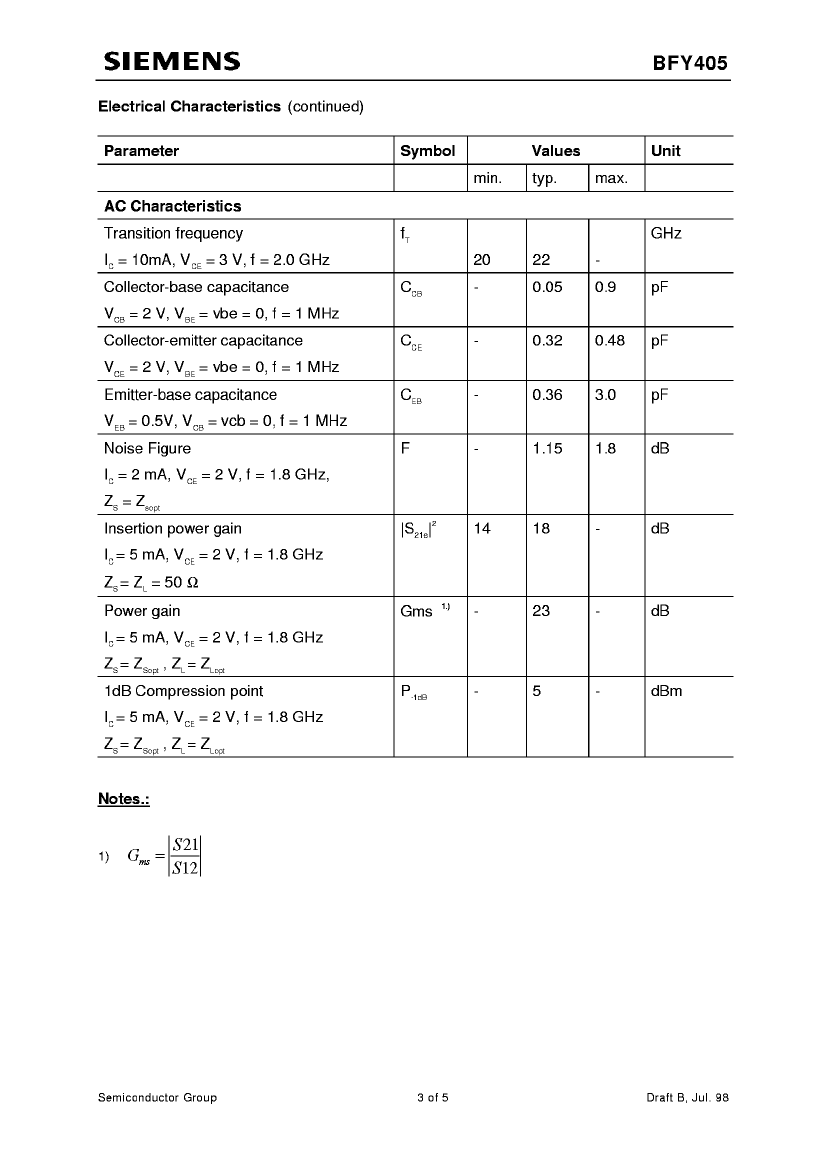

Nominal transition frequency (fT)	22000 MHz

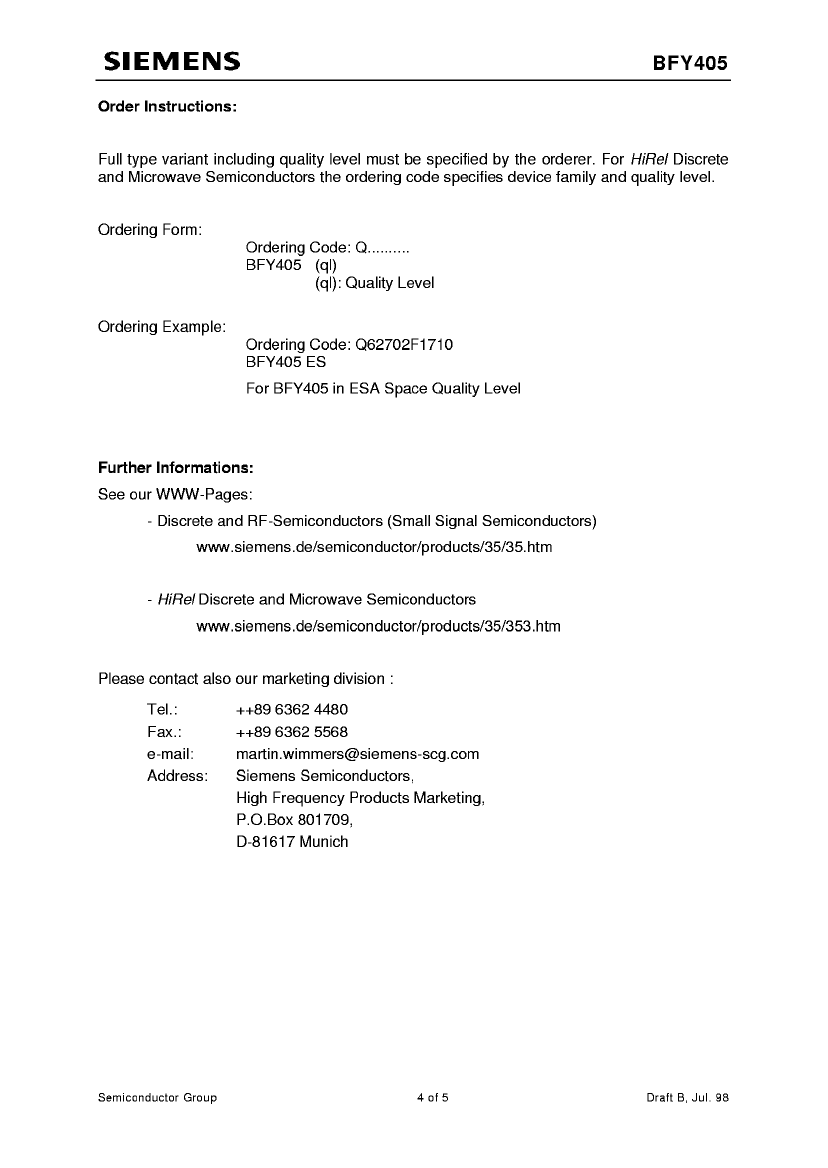

Preview

Download Datasheet

View All

BFY405H Related Products

	BFY405H	BFY405S	BFY405ES	BFY405P
Description	RF Small Signal Bipolar Transistor, 0.012A I(C), 1-Element, X Band, Silicon, NPN	RF Small Signal Bipolar Transistor, 0.012A I(C), 1-Element, X Band, Silicon, NPN	RF Small Signal Bipolar Transistor, 0.012A I(C), 1-Element, X Band, Silicon, NPN	RF Small Signal Bipolar Transistor, 0.012A I(C), 1-Element, X Band, Silicon, NPN
package instruction	DISK BUTTON, O-CRDB-F4	DISK BUTTON, O-CRDB-F4	DISK BUTTON, O-CRDB-F4	DISK BUTTON, O-CRDB-F4
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Shell connection	EMITTER	EMITTER	EMITTER	EMITTER
Maximum collector current (IC)	0.012 A	0.012 A	0.012 A	0.012 A
Collector-based maximum capacity	0.9 pF	0.9 pF	0.9 pF	0.9 pF
Collector-emitter maximum voltage	4.5 V	4.5 V	4.5 V	4.5 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
highest frequency band	X BAND	X BAND	X BAND	X BAND
JESD-30 code	O-CRDB-F4	O-CRDB-F4	O-CRDB-F4	O-CRDB-F4
Number of components	1	1	1	1
Number of terminals	4	4	4	4
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	DISK BUTTON	DISK BUTTON	DISK BUTTON	DISK BUTTON
Polarity/channel type	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES
Terminal form	FLAT	FLAT	FLAT	FLAT
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	22000 MHz	22000 MHz	22000 MHz	22000 MHz
Maker	SIEMENS	-	SIEMENS	SIEMENS
