MC34004D datasheet, PDF - EEWORLD Datasheet

MC34004D: DescriptionQUAD OP-AMP, 13000uV OFFSET-MAX, 4MHz BAND WIDTH, PDSO14, MICRO, PLASTIC, SO-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size285KB，12 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

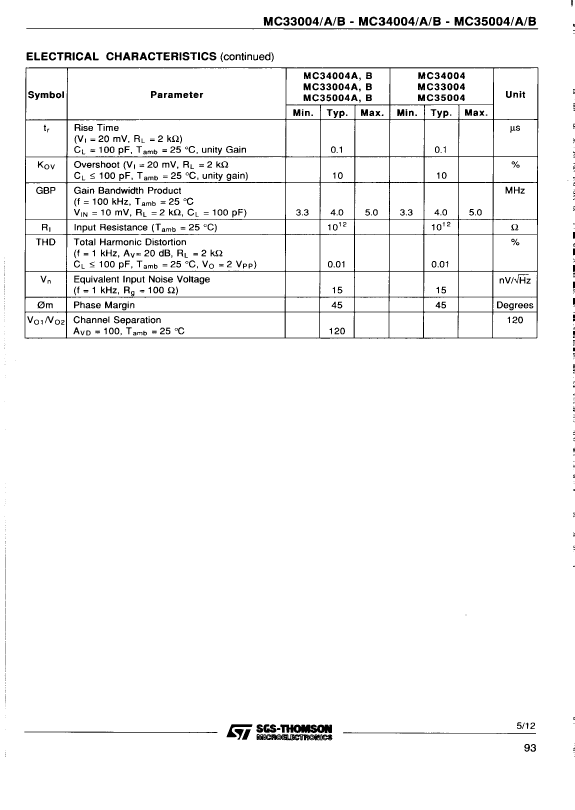

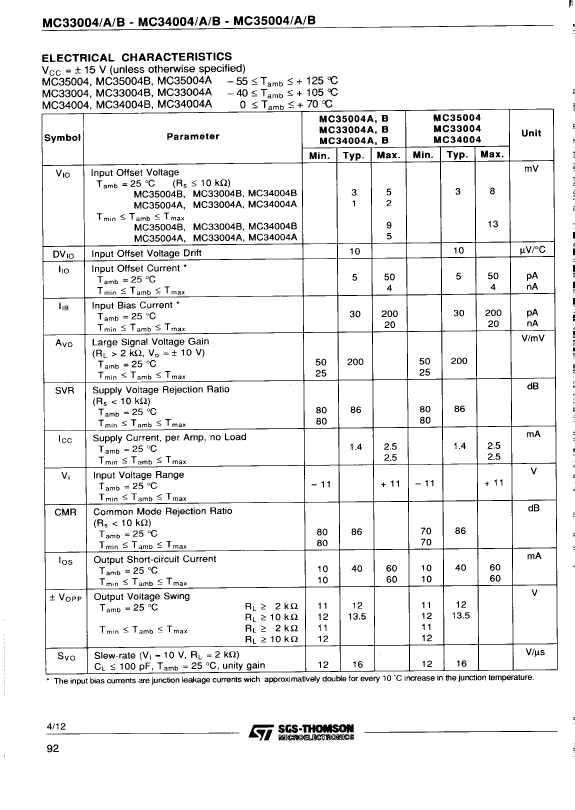

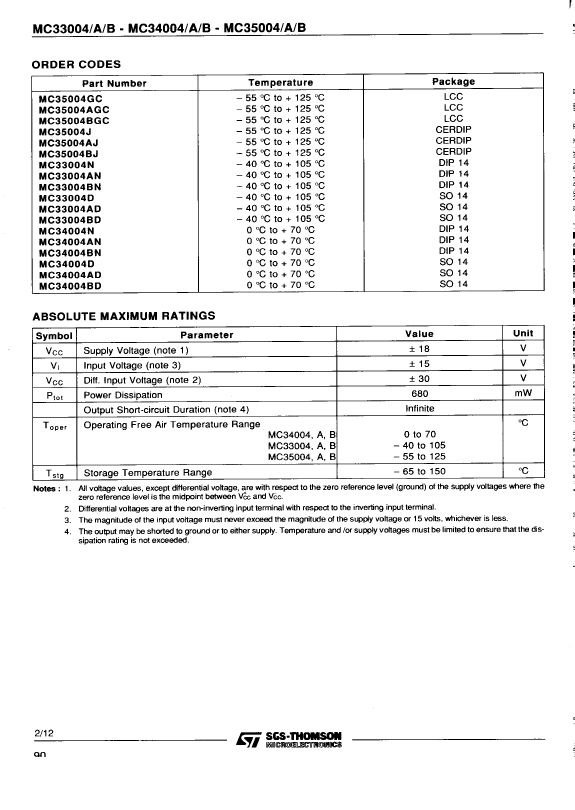

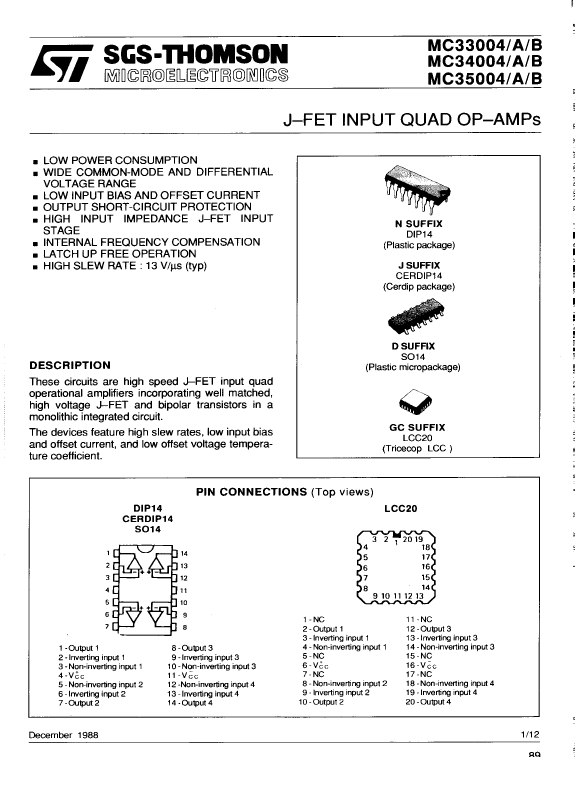

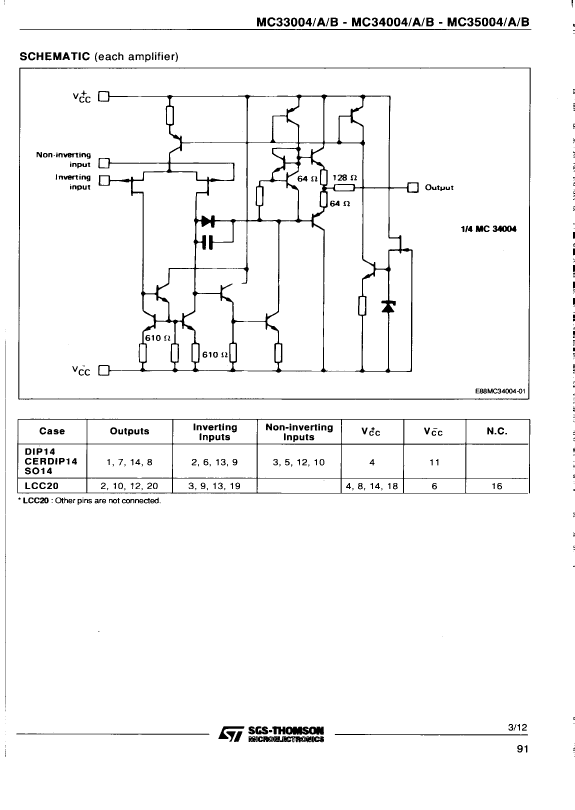

MC34004D Overview

QUAD OP-AMP, 13000uV OFFSET-MAX, 4MHz BAND WIDTH, PDSO14, MICRO, PLASTIC, SO-14

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	SOIC
package instruction	SOP, SOP14,.25
Contacts	14
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.02 µA
Maximum bias current (IIB) at 25C	0.0002 µA
Nominal Common Mode Rejection Ratio	70 dB
frequency compensation	YES
Maximum input offset current (IIO)	0.004 µA
Maximum input offset voltage	13000 µV
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
length	8.65 mm
low-bias	YES
low-dissonance	NO
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
minimum slew rate	12 V/us
Nominal slew rate	16 V/us
Maximum slew rate	11.2 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	4000 kHz
Minimum voltage gain	25000
width	3.9 mm

This Material Copyrighted By Its Respective Manufacturer
