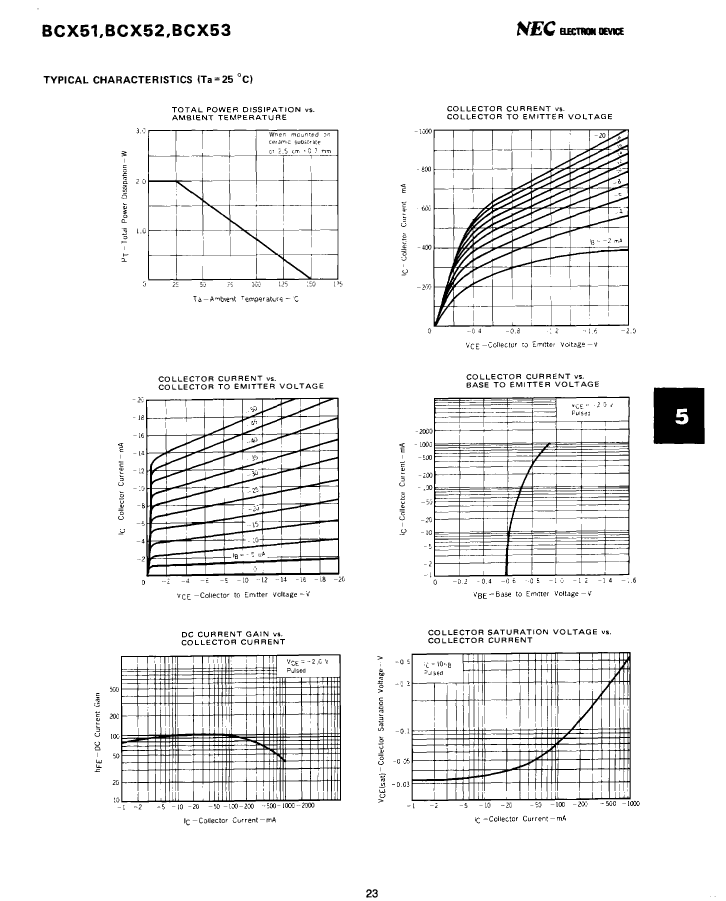

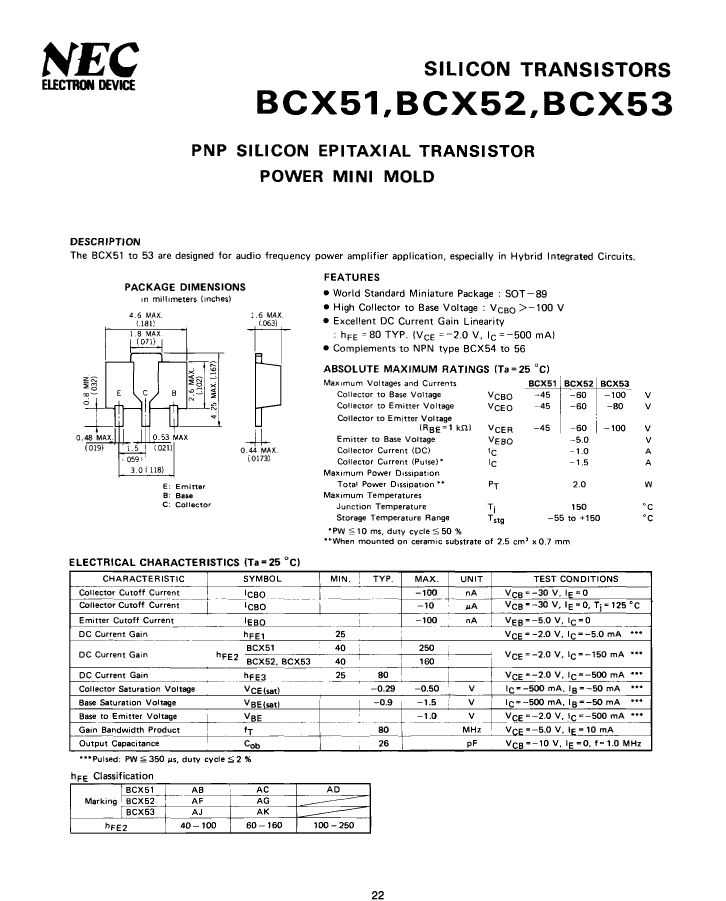

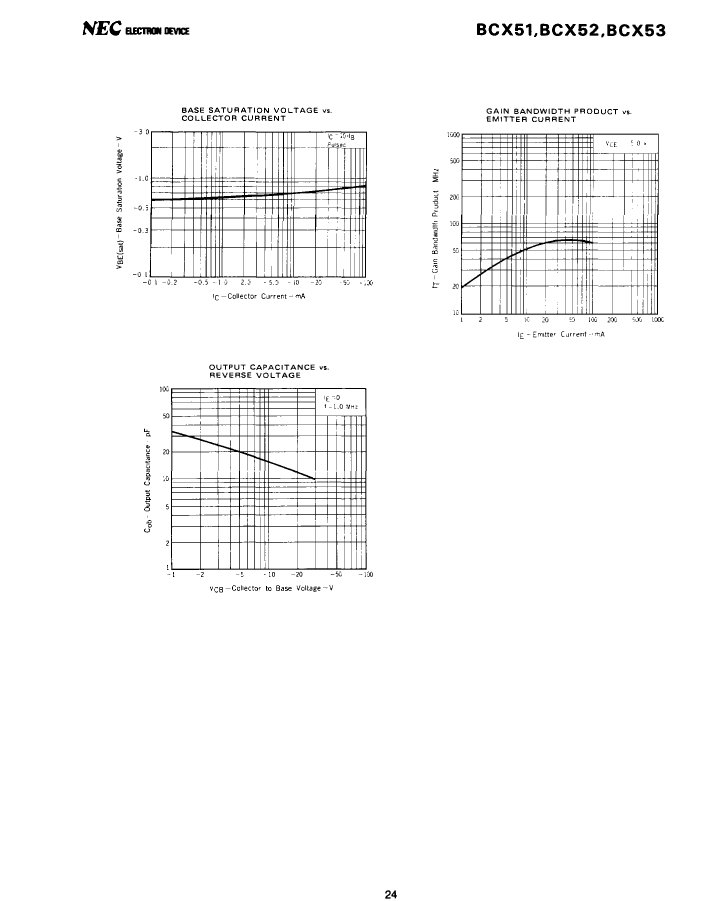

Power Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, POWER, MINIMOLD PACKAGE-3
| Parameter Name | Attribute value |
| Maker | NEC Electronics |
| package instruction | POWER, MINIMOLD PACKAGE-3 |
| Reach Compliance Code | unknown |
| Shell connection | COLLECTOR |
| Maximum collector current (IC) | 1 A |
| Collector-emitter maximum voltage | 60 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 25 |
| JESD-30 code | R-PSSO-F3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Polarity/channel type | PNP |
| Maximum power consumption environment | 2 W |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal form | FLAT |
| Terminal location | SINGLE |
| transistor applications | AMPLIFIER |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 80 MHz |
| VCEsat-Max | 0.5 V |
| BCX52 | BCX51AC | BCX51AD | BCX51AB | BCX53AJ | BCX53AK | |
|---|---|---|---|---|---|---|
| Description | Power Bipolar Transistor, 1A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, Plastic/Epoxy, 3 Pin, POWER, MINIMOLD PACKAGE-3 | Small Signal Bipolar Transistor, 1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, POWER, MINIMOLD PACKAGE-3 | Small Signal Bipolar Transistor, 1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, POWER, MINIMOLD PACKAGE-3 | Small Signal Bipolar Transistor, 1A I(C), 45V V(BR)CEO, 1-Element, PNP, Silicon, POWER, MINIMOLD PACKAGE-3 | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, POWER, MINIMOLD PACKAGE-3 | Small Signal Bipolar Transistor, 1A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, POWER, MINIMOLD PACKAGE-3 |
| Maker | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics | NEC Electronics |
| package instruction | POWER, MINIMOLD PACKAGE-3 | POWER, MINIMOLD PACKAGE-3 | POWER, MINIMOLD PACKAGE-3 | POWER, MINIMOLD PACKAGE-3 | POWER, MINIMOLD PACKAGE-3 | POWER, MINIMOLD PACKAGE-3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Shell connection | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR | COLLECTOR |
| Maximum collector current (IC) | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Collector-emitter maximum voltage | 60 V | 45 V | 45 V | 45 V | 80 V | 80 V |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 25 | 60 | 100 | 40 | 40 | 60 |
| JESD-30 code | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 | R-PSSO-F3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Polarity/channel type | PNP | PNP | PNP | PNP | PNP | PNP |
| Maximum power consumption environment | 2 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | YES | YES | YES | YES |
| Terminal form | FLAT | FLAT | FLAT | FLAT | FLAT | FLAT |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| transistor applications | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 80 MHz | 80 MHz | 80 MHz | 80 MHz | 80 MHz | 80 MHz |
| VCEsat-Max | 0.5 V | 0.5 V | 0.5 V | 0.5 V | 0.5 V | 0.5 V |
