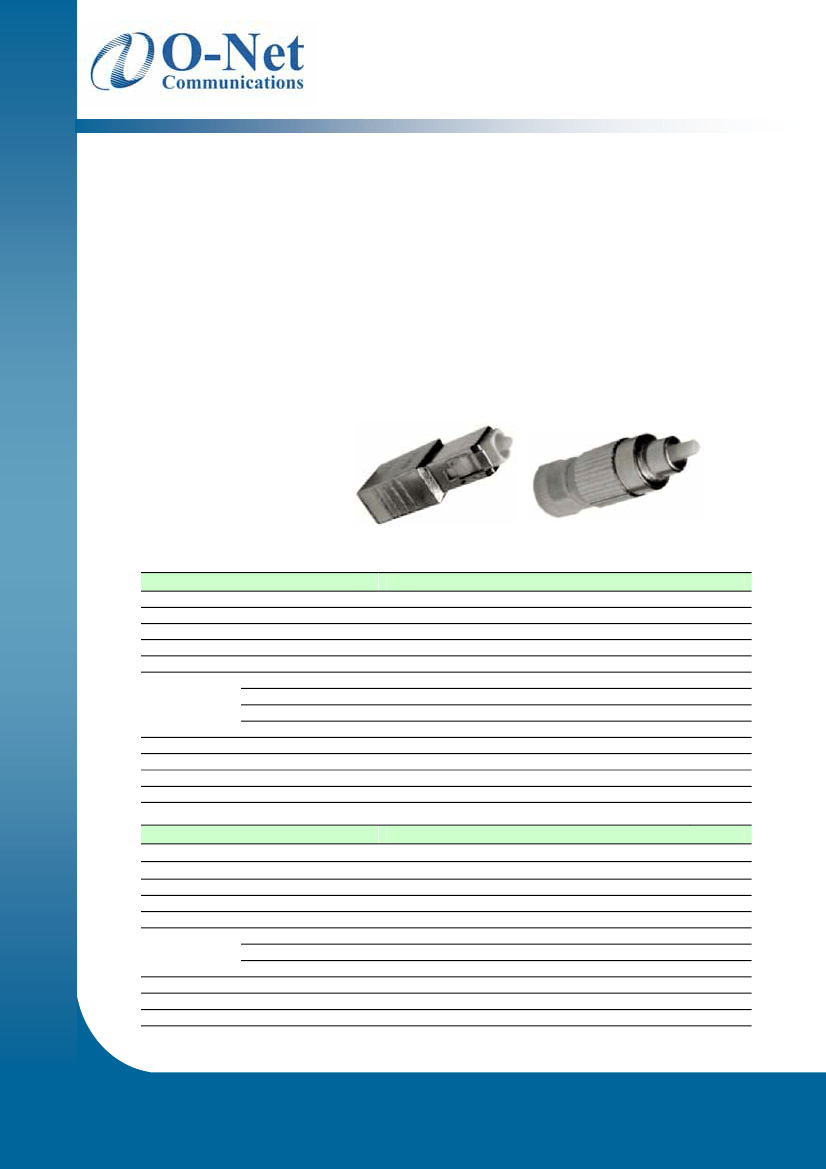

ATTENUATION/MONITORING
FIXED OPTICAL ATTENUATOR
Features
High return loss
Easy installation
Environmentally stable
Readily Panel Mountable
Compact size
Applications
Telecommunications
FTTx network
CATV network
LAN
Fiber optic sensors
Specifications
Parameter
Mode Type
Attenuation Type
Operating Wavelength
Bandwidth
Grade
1~5dB
6~10dB
Attenuation
1
Accuracy
11~15dB
16~20dB
Back Reflection
Operating Temperature Range
Storage Temperature Range
Connector Type
Specification
Single-mode (SM)
Doping Type
1310/1550
1310&1550
±40
±40
H-grade
A-grade
H-grade
A-grade
±1.0
±1.5
±1.5
±2.0
±1.5
±2.0
±2.0
±2.5
±2.0
±2.5
±2.5
±3.0
±2.0
±2.5
±3.0
±3.5
40 (for convex polishing) / 60 (for angled polishing)
-40~+75
-40~+85
FC/SC/ST/LC/MU
Unit
nm
nm
dB
dB
dB
dB
dB
°C
°C
Typ
Typ
Typ
Typ
Min
Parameter
Mode Type
Attenuation Type
Operating Wavelength
Bandwidth
Attenuation
1~5dB
Attenuation
6~10dB
Accuracy
1
11~20dB
Operating Temperature Range
Storage Temperature Range
Connector Type
Specification
Multi-mode (MM)
Fusing Type
850/1310
±10
1~20 or customized
±1.0
±1.5
±2.0
-40~+75
-40~+85
FC/SC/ST
Unit
Typ
Typ
Typ
nm
nm
dB
dB
dB
dB
°C
°C
Smart Optical Component Solutions
www.o-netcom.com
#10-1 South, Maqueling Industrial Park, Nanshan District, Shenzhen 518057, China
Tel: +86-755-2671 0000
Fax: +86-755-2671 0557
ATTENUATION/MONITORING
Parameter
Attenuation Type
Operating Wavelength
Bandwidth
Attenuation
1~10dB
Attenuation
Accuracy
1
11~20dB
Back Reflection
Operating Temperature Range
Storage Temperature Range
Connector Type
Specification
Air Gap Type (female to female only)
850/1310/1550
±10
3/5/10/15/20
±1.5
±15
15 (for convex polishing) / 60 (for angled type)
-40~+75
-40~+85
FC/SC/ST
Unit
nm
nm
dB
dB
%
dB
°C
°C
Typ
Typ
Min
1. Values referenced with connector.

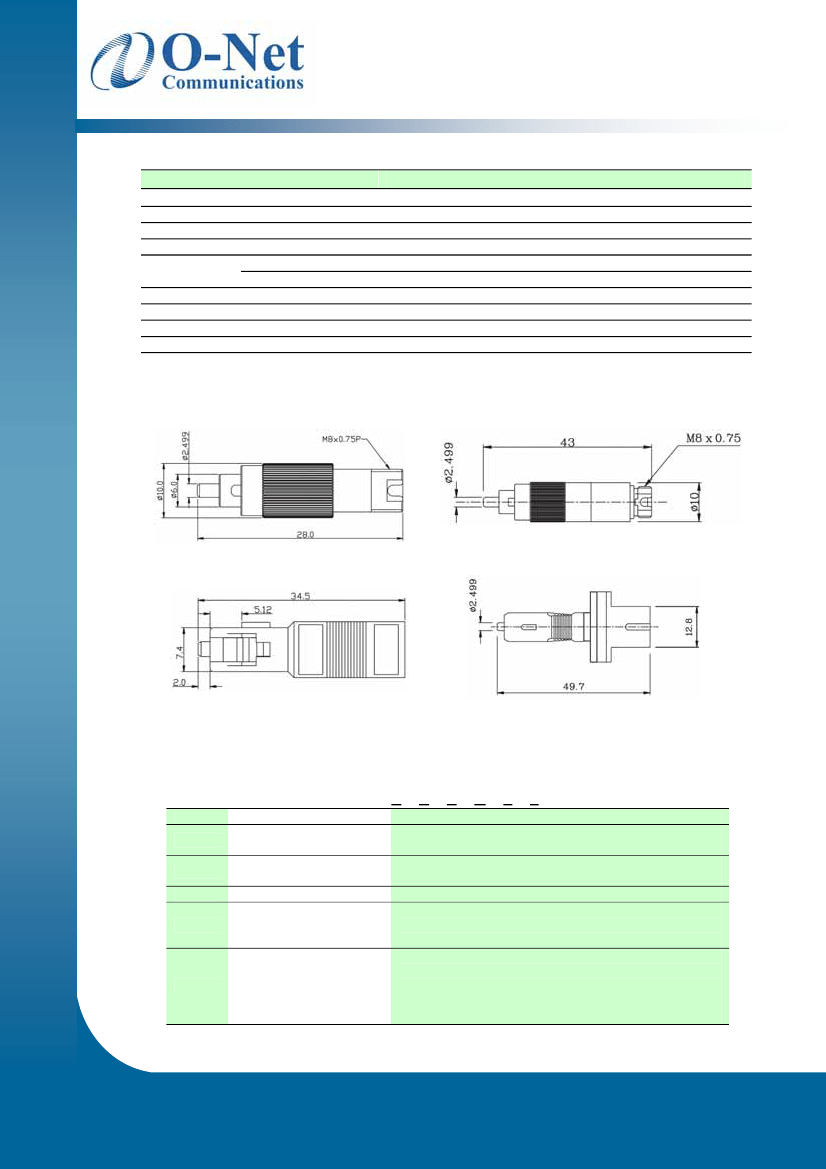

Dimension
FC, doping type
FC, fusing type
SC, doping type
SC, fusing type
Order Information
FA – A – B – C – D – E – F
A
B
C
D
E
Mode Type
Attenuation Type
Attenuation
Attenuation Accuracy
Operating Wavelength
A: SM
C: MM, 50/125µm
D: MM, 62.5/125µm
A: Air gap type (female to female only)
M: Doping type
F: Fusing type
01: 1dB
03: 3dB
05: 5dB
10: 10dB 15: 15dB 20: 20dB XX: Customized
H: H-grade
A: A-grade
85: 850nm
13: 1310nm
15: 1550nm
3W: 1310±40nm
5W: 1550±40nm
35: 1310&1550nm ……
FC: FC type
AP: FC/APC type
SC: SC type
AS: SC/APC type
LC: LC type AL: LC/APC type
MU: MU type ST: ST type
X: Customized
F
Connector Type
