92846-002-21

Description
Board Connector, 21 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Blue Insulator
CategoryThe connector    The connector
File Size62KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

92846-002-21 Overview

Board Connector, 21 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Blue Insulator

92846-002-21 Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.095 inch
subject depth0.1 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGOLD (2) OVER NICKEL
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
Insulator colorBLUE
insulator materialGLASS FILLED NYLON
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number92846
Plug contact pitch0.1 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness2u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.095 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts21
UL Flammability Code94V-0

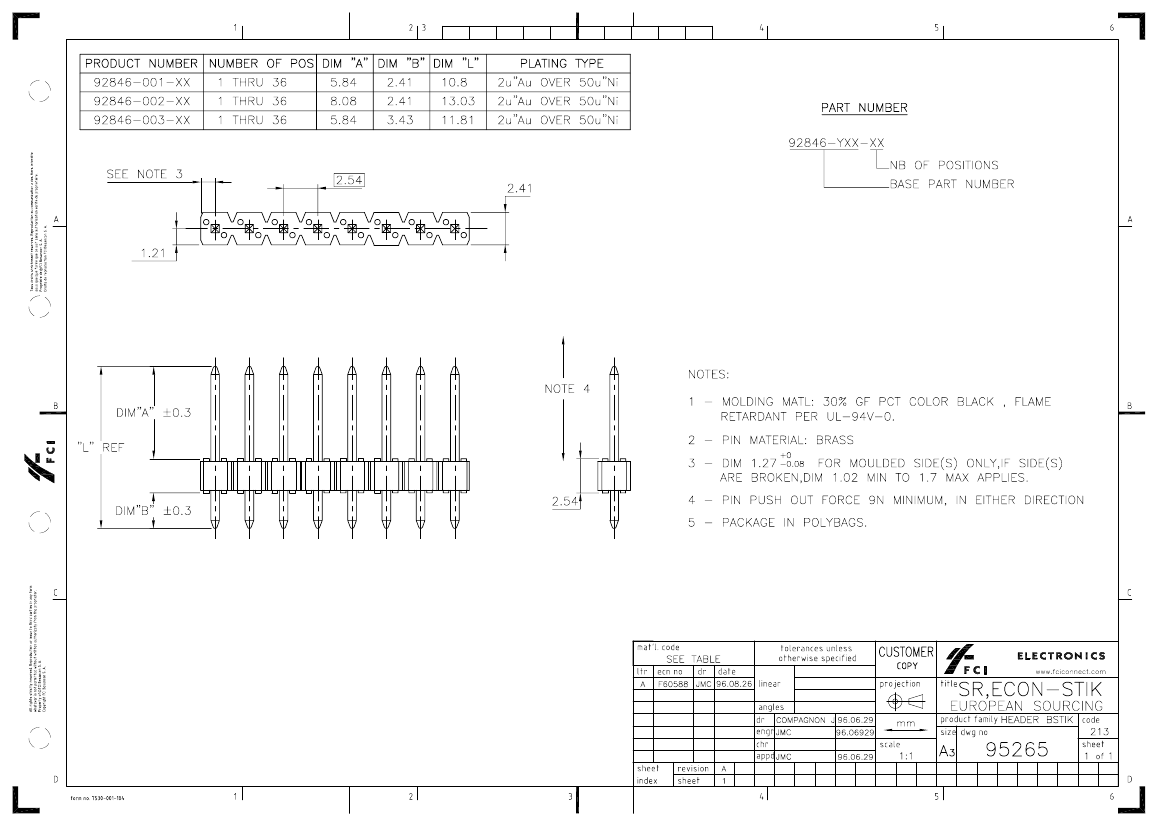

PDM: Rev:A
STATUS:
Released
Printed: Aug 02, 2002
