PLDC20G10-25JIT datasheet, PDF

PLDC20G10-25JIT: DescriptionOT PLD, 25ns, CMOS, PQCC28, PLASTIC, LCC-28; CategoryProgrammable logic devices Programmable logic; File Size272KB，8 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric View All

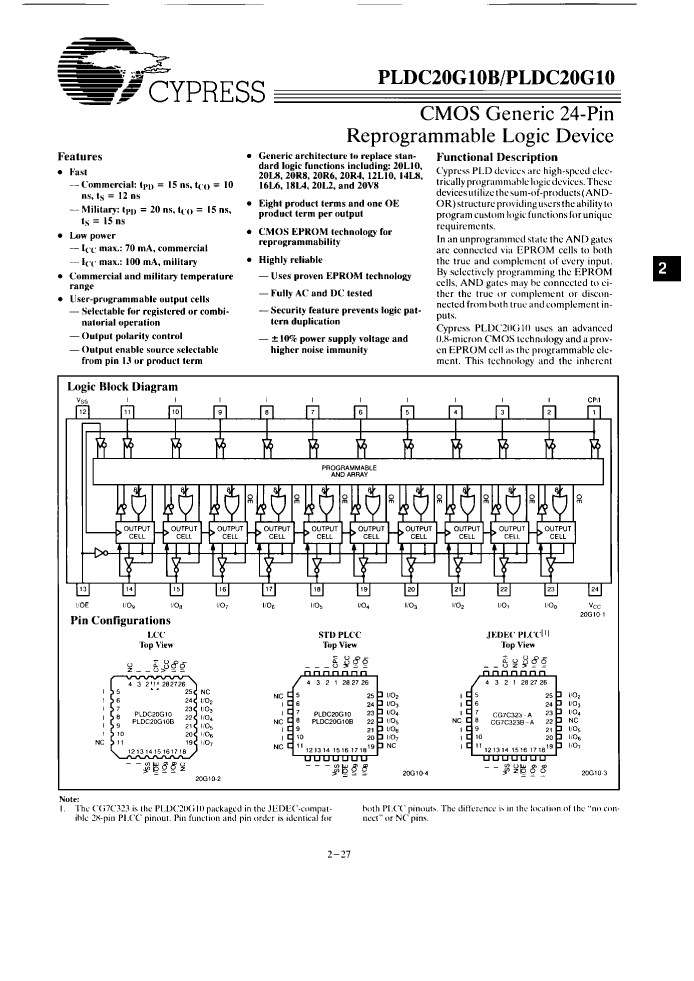

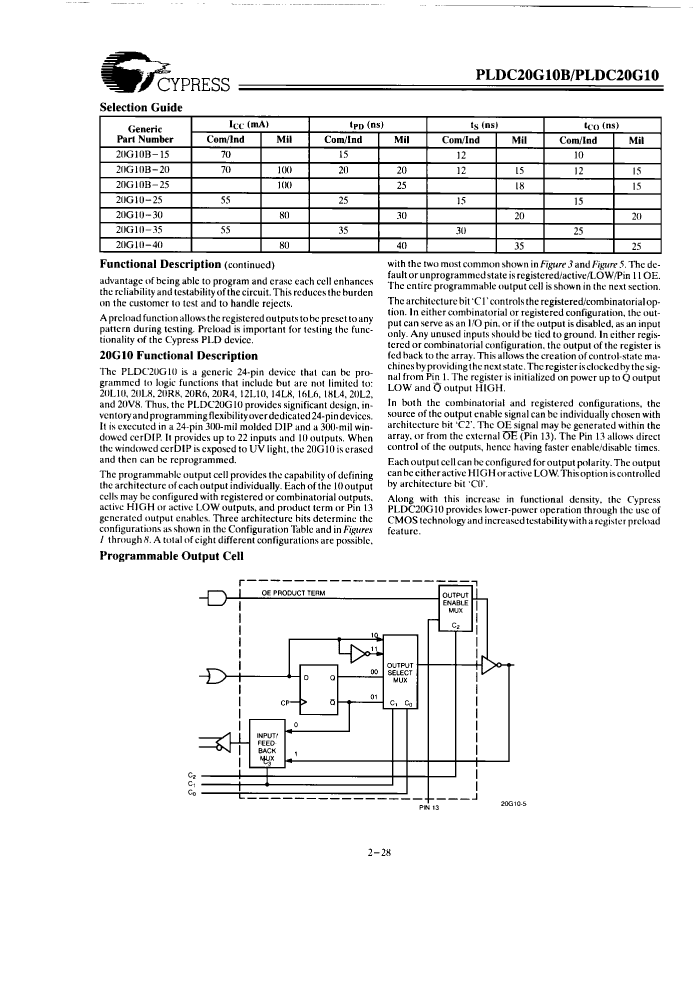

PLDC20G10-25JIT Overview

OT PLD, 25ns, CMOS, PQCC28, PLASTIC, LCC-28

Parameter Name	Attribute value
Maker	Cypress Semiconductor
Parts packaging code	QLCC
package instruction	QCCJ,
Contacts	28
Reach Compliance Code	unknown
Other features	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK
maximum clock frequency	33.3 MHz
JESD-30 code	S-PQCC-J28
length	11.5316 mm
Dedicated input times	10
Number of I/O lines	10
Number of terminals	28

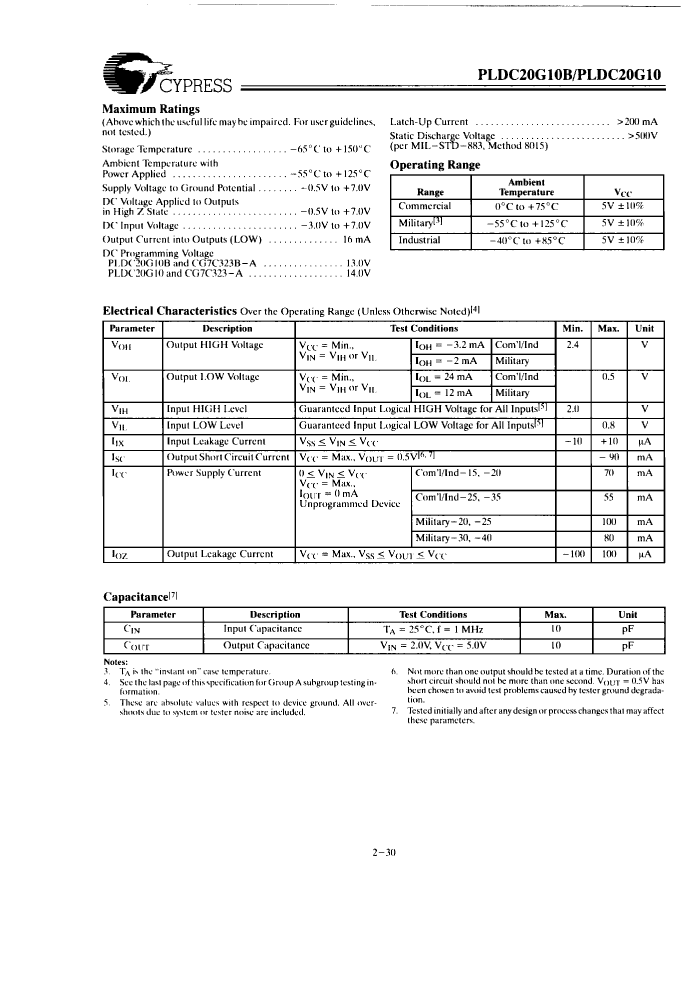

Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	10 DEDICATED INPUTS, 10 I/O

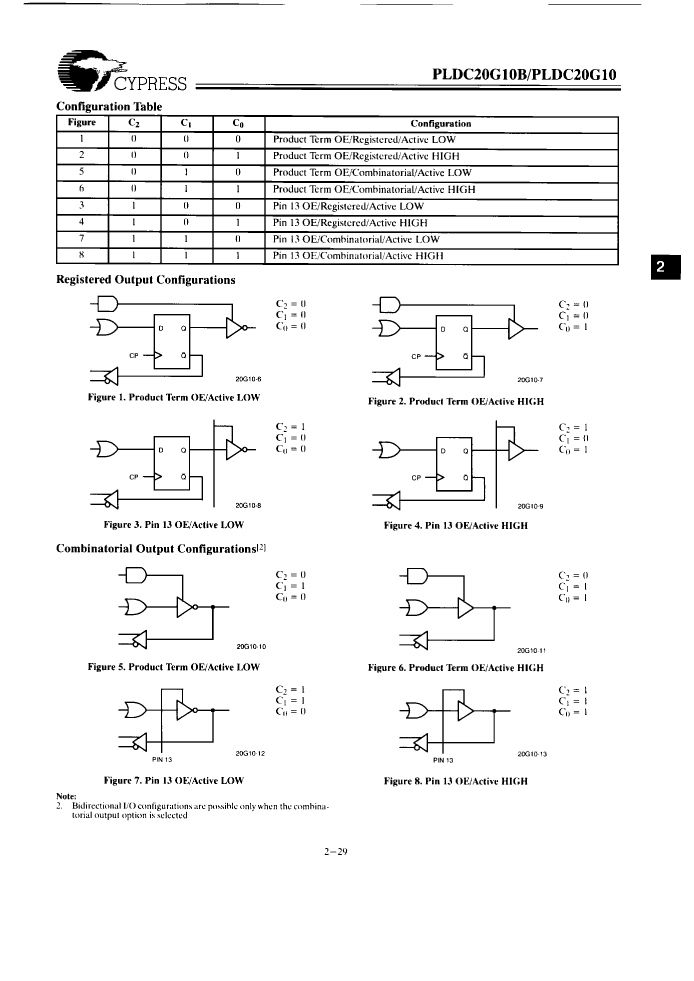

Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	OT PLD

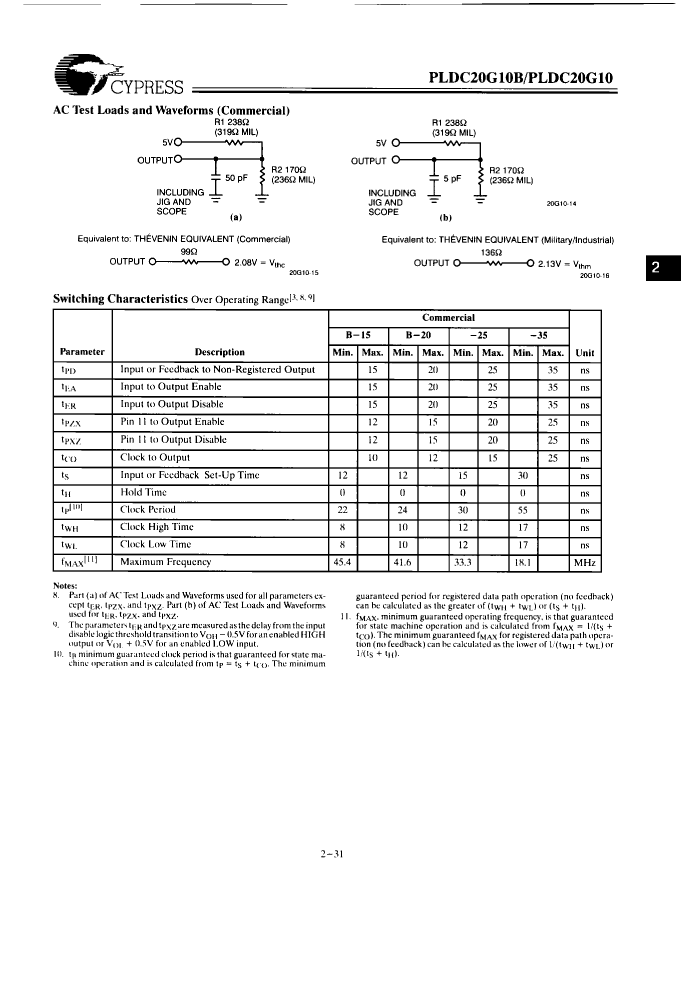

propagation delay	25 ns
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.5316 mm
