GPA1604 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> GPA1604

GPA1604: Description16 A, 400 V, SILICON, RECTIFIER DIODE, TO-220AC; CategoryDiscrete semiconductor diode; File Size812KB，3 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

GPA1604 Overview

16 A, 400 V, SILICON, RECTIFIER DIODE, TO-220AC

GPA1604 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	R-PSFM-T2
Reach Compliance Code	compli
ECCN code	EAR99
Other features	HIGH RELIABILITY, LOW POWER LOSS
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	250 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	16 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal surface	PURE TIN
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

GPA1601 - GPA1607

16.0

AMPs. Glass Passivated Rectifiers

TO-220AC

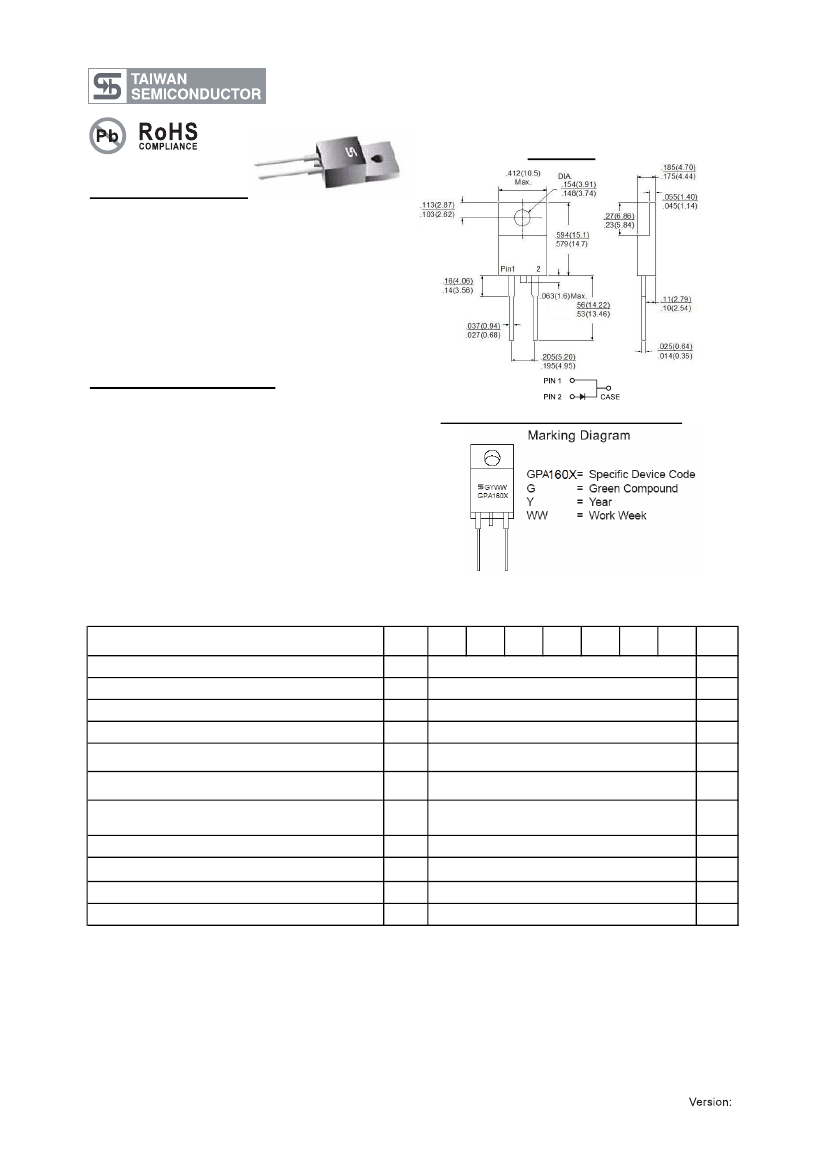

Features

Glass Passivated chip junction

High efficiency, Low VF

High Current capacity

High reliability

High Surge current capability

Low power loss

Green compound with suffix "G" on packing code

& prefix "G" on datecode.

Mechanical Data

Cases: TO-220AC Molded plastic

Epoxy: UL 94V-O rate flame retardant

Terminal

: Pure tin plated, lead free, solderable

per MIL-STD-202, Method 208 guaranteed

Polarity: As marked

High temperature soldering guaranteed:

260

C/10 seconds .16"(4.06mm) from case.

Weight: 2.24 gram

Dimensions in inches and (millimeters)

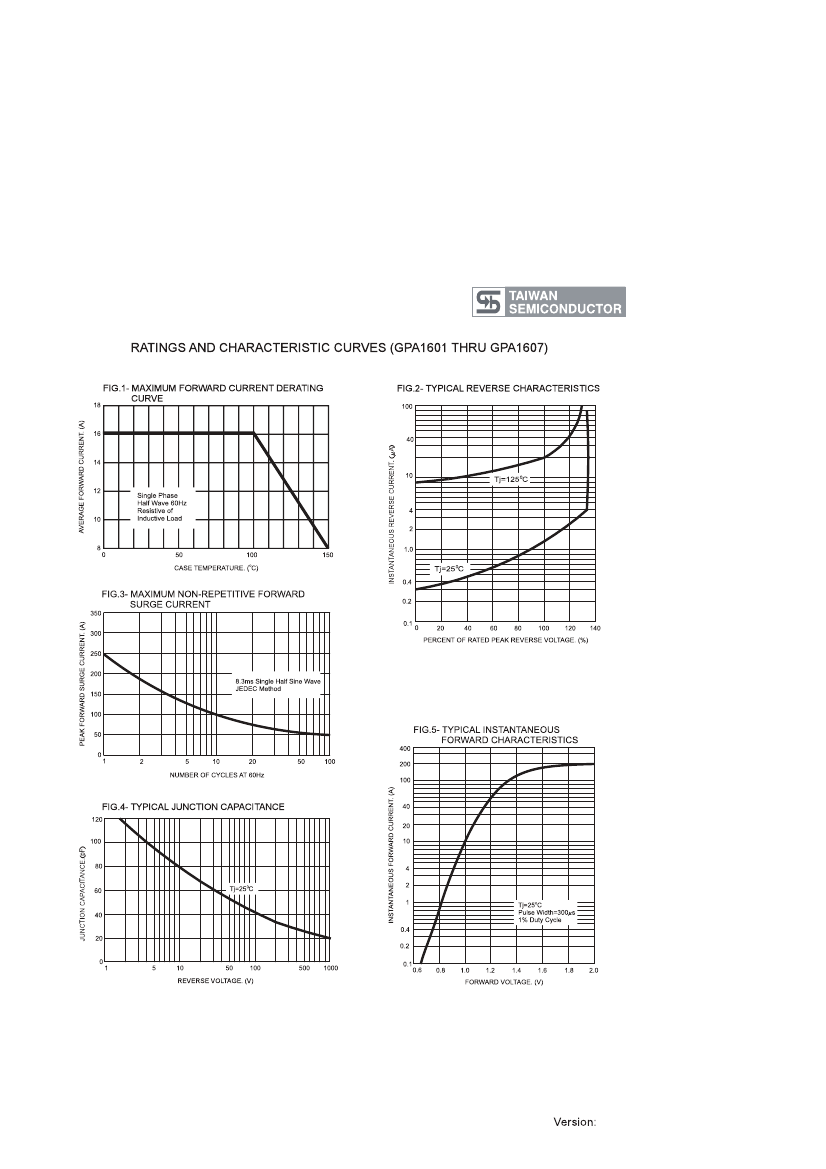

Maximum Ratings and Electrical Characteristics

Rating at 25℃ambient temperature unless otherwise specified.

Single phase, half wave, 60 Hz, resistive or inductive load.

For capacitive load, derate current by 20%

Type Number

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified @Tc = 100℃

Peak Forward Surge Current, 8.3 ms Single Half Sine-

wave Superimposed on Rated Load (JEDEC method )

Maximum Instantaneous Forward Voltage @ 16.0A

Maximum DC Reverse Current @ T

=25℃

at Rated DC Blocking Voltage @ TA=125℃

Typical Junction Capacitance (Note 1)

Typical Thermal Resistance (Note 2)

Operating Temperature Range

Storage Temperature Range

2. Mount on P.C. Board with 2"x3" x0.25" Al-plate

Symbol

VRRM

VRMS

VDC

I(AV)

IFSM

RθJC

TSTG

GPA

1601

GPA

1602

100

GPA

1603

200

140

200

GPA

1604

400

280

400

16.0

250

1.1

250

100

2.0

-65 to +150

GPA

1605

600

420

600

GPA

1606

800

560

800

GPA

1607

1000

700

1000

Units

C/W

Note 1. Measured at 1 MHz and Applied Reverse Voltage of 4.0 V D.C.

C09

GPA1604 Related Products

	GPA1604	GPA1601	GPA1603	GPA1602	GPA1605	GPA1601_09	GPA1606	GPA1607
Description	16 A, 400 V, SILICON, RECTIFIER DIODE, TO-220AC	16 A, 50 V, SILICON, RECTIFIER DIODE, TO-220AC	16 A, 200 V, SILICON, RECTIFIER DIODE, TO-220AC	16 A, 100 V, SILICON, RECTIFIER DIODE, TO-220AC	16 A, 600 V, SILICON, RECTIFIER DIODE, TO-220AC	16 A, 400 V, SILICON, RECTIFIER DIODE, TO-220AC	16 A, 800 V, SILICON, RECTIFIER DIODE, TO-220AC	16 A, 1000 V, SILICON, RECTIFIER DIODE, TO-220AC
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	-	conform to	conform to
package instruction	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	-	R-PSFM-T2	R-PSFM-T2
Reach Compliance Code	compli	compli	compli	compli	compli	-	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	-
Other features	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS	-	HIGH RELIABILITY, LOW POWER LOSS	HIGH RELIABILITY, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	-	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	-	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	-	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V	1.1 V	-	1.1 V	1.1 V
JEDEC-95 code	TO-220AC	TO-220AC	TO-220AC	TO-220AC	TO-220AC	-	TO-220AC	TO-220AC
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	-	R-PSFM-T2	R-PSFM-T2
JESD-609 code	e3	e3	e3	e3	e3	-	e3	e3
Humidity sensitivity level	1	1	1	1	1	-	1	1
Maximum non-repetitive peak forward current	250 A	250 A	250 A	250 A	250 A	-	250 A	250 A
Number of components	1	1	1	1	1	-	1	1
Phase	1	1	1	1	1	-	1	1
Number of terminals	2	2	2	2	2	-	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	-	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-	-65 °C	-65 °C
Maximum output current	16 A	16 A	16 A	16 A	16 A	-	16 A	16 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	50 V	200 V	100 V	600 V	-	800 V	1000 V
surface mount	NO	NO	NO	NO	NO	-	NO	NO
Terminal surface	PURE TIN	PURE TIN	PURE TIN	PURE TIN	PURE TIN	-	PURE TIN	PURE TIN
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-	SINGLE	SINGLE
