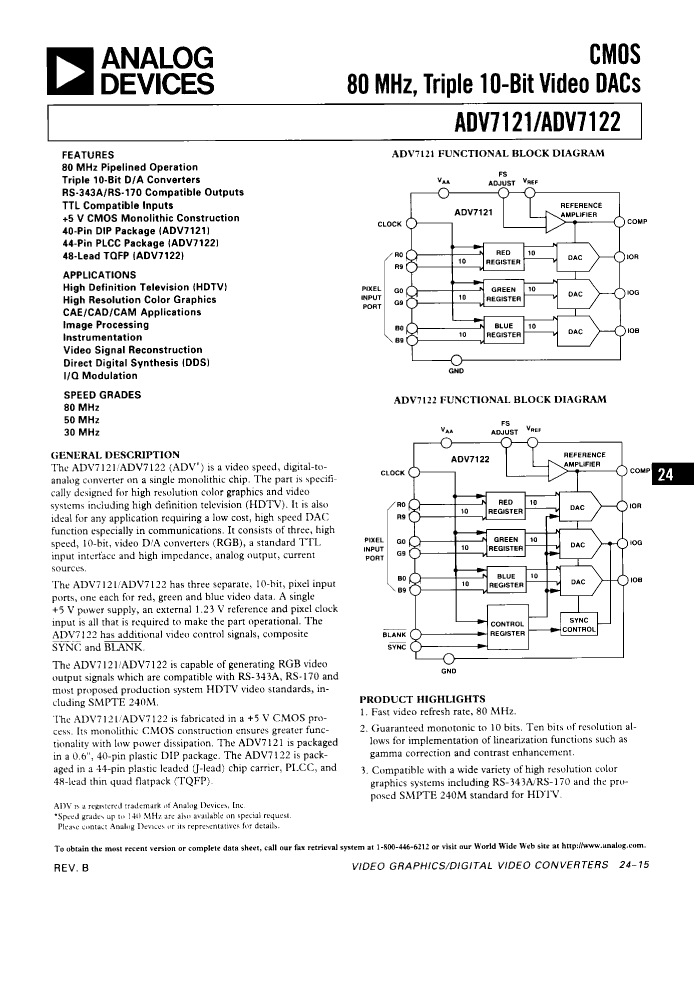

IC TRIPLE, PARALLEL, WORD INPUT LOADING, 10-BIT DAC, PQFP48, TQFP-48, Digital to Analog Converter

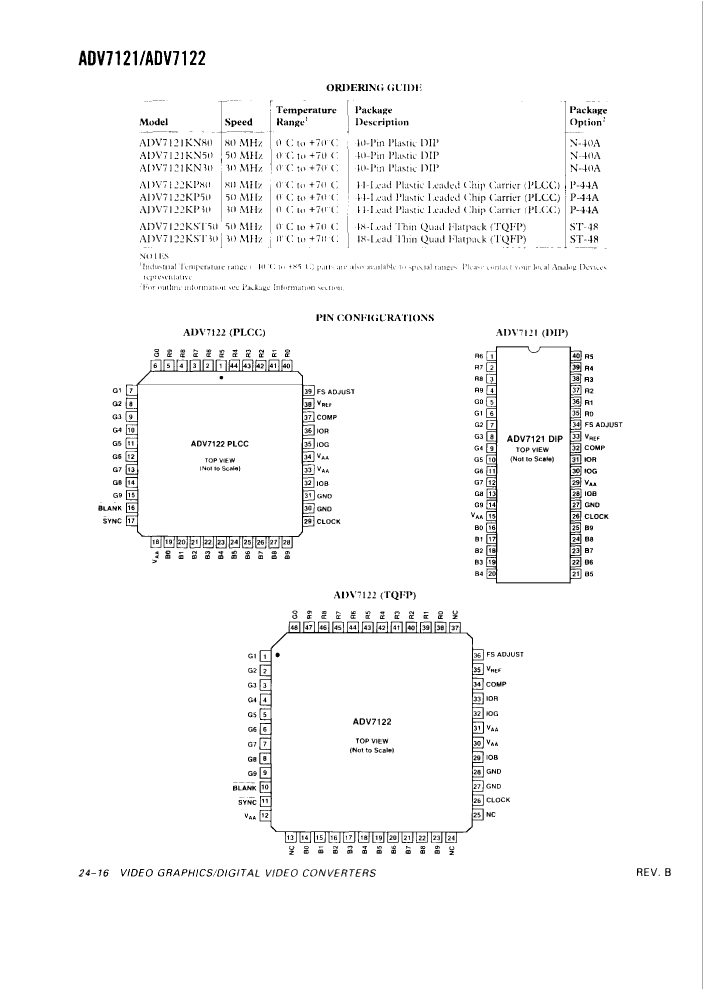

| Parameter Name | Attribute value |
| Maker | ADI |
| Parts packaging code | QFP |
| package instruction | LFQFP, |
| Contacts | 48 |
| Reach Compliance Code | unknown |
| Converter type | D/A CONVERTER |
| Enter bit code | BINARY |
| Input format | PARALLEL, WORD |
| JESD-30 code | S-PQFP-G48 |
| length | 7 mm |
| Number of digits | 10 |
| Number of functions | 3 |
| Number of terminals | 48 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | LFQFP |
| Package shape | SQUARE |
| Package form | FLATPACK, LOW PROFILE, FINE PITCH |
| Certification status | Not Qualified |
| Maximum seat height | 1.6 mm |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal form | GULL WING |
| Terminal pitch | 0.5 mm |
| Terminal location | QUAD |
| width | 7 mm |
| AD7122KST30 | AD7122KST50 | AD7121KN80 | AD7122KP80 | AD7121KN50 | AD7122KP30 | AD7121KN30 | AD7122KP50 | |
|---|---|---|---|---|---|---|---|---|
| Description | IC TRIPLE, PARALLEL, WORD INPUT LOADING, 10-BIT DAC, PQFP48, TQFP-48, Digital to Analog Converter | IC TRIPLE, PARALLEL, WORD INPUT LOADING, 10-BIT DAC, PQFP48, TQFP-48, Digital to Analog Converter | IC TRIPLE, PARALLEL, WORD INPUT LOADING, 10-BIT DAC, PDIP40, 0.600 INCH, PLASTIC, DIP-40, Digital to Analog Converter | IC TRIPLE, PARALLEL, WORD INPUT LOADING, 10-BIT DAC, PQCC44, PLASTIC, LCC-44, Digital to Analog Converter | IC TRIPLE, PARALLEL, WORD INPUT LOADING, 10-BIT DAC, PDIP40, 0.600 INCH, PLASTIC, DIP-40, Digital to Analog Converter | IC TRIPLE, PARALLEL, WORD INPUT LOADING, 10-BIT DAC, PQCC44, PLASTIC, LCC-44, Digital to Analog Converter | IC TRIPLE, PARALLEL, WORD INPUT LOADING, 10-BIT DAC, PDIP40, 0.600 INCH, PLASTIC, DIP-40, Digital to Analog Converter | IC TRIPLE, PARALLEL, WORD INPUT LOADING, 10-BIT DAC, PQCC44, PLASTIC, LCC-44, Digital to Analog Converter |
| Parts packaging code | QFP | QFP | DIP | LCC | DIP | LCC | DIP | LCC |
| package instruction | LFQFP, | LFQFP, | DIP, | QCCJ, | DIP, | QCCJ, | DIP, | QCCJ, |
| Contacts | 48 | 48 | 40 | 44 | 40 | 44 | 40 | 44 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Converter type | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER | D/A CONVERTER |
| Enter bit code | BINARY | BINARY | BINARY | BINARY | BINARY | BINARY | BINARY | BINARY |
| Input format | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD | PARALLEL, WORD |
| JESD-30 code | S-PQFP-G48 | S-PQFP-G48 | R-PDIP-T40 | S-PQCC-J44 | R-PDIP-T40 | S-PQCC-J44 | R-PDIP-T40 | S-PQCC-J44 |
| Number of digits | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Number of functions | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of terminals | 48 | 48 | 40 | 44 | 40 | 44 | 40 | 44 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | LFQFP | LFQFP | DIP | QCCJ | DIP | QCCJ | DIP | QCCJ |
| Package shape | SQUARE | SQUARE | RECTANGULAR | SQUARE | RECTANGULAR | SQUARE | RECTANGULAR | SQUARE |
| Package form | FLATPACK, LOW PROFILE, FINE PITCH | FLATPACK, LOW PROFILE, FINE PITCH | IN-LINE | CHIP CARRIER | IN-LINE | CHIP CARRIER | IN-LINE | CHIP CARRIER |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.6 mm | 1.6 mm | 5.08 mm | 4.57 mm | 5.08 mm | 4.57 mm | 5.08 mm | 4.57 mm |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | YES | NO | YES | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | GULL WING | GULL WING | THROUGH-HOLE | J BEND | THROUGH-HOLE | J BEND | THROUGH-HOLE | J BEND |
| Terminal pitch | 0.5 mm | 0.5 mm | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | QUAD | QUAD | DUAL | QUAD | DUAL | QUAD | DUAL | QUAD |
| width | 7 mm | 7 mm | 15.24 mm | 16.5862 mm | 15.24 mm | 16.5862 mm | 15.24 mm | 16.5862 mm |
| length | 7 mm | 7 mm | - | 16.5862 mm | - | 16.5862 mm | - | 16.5862 mm |
| Base Number Matches | - | 1 | 1 | 1 | 1 | 1 | - | - |
