Product Data Sheet
1.8 W
ATT
R
EGULATED
DC/DC C
ONVERTER
PWR60XX
DESCRIPTION
The PWR60XX Series offers a low-cost alternative for some
of the most popular DC/DC converters industry wide. Each
model has very low noise and an outstanding MTTF. The
superior reliability, excellent filtering, and low cost make it an
excellent choice for industry-standard usage.
The series includes eleven models (other input and output
voltages are available upon request), all set in an encapsulant for
excellent thermal dissipation for internal components. The use
of surface-mount devices and manufacturing processes com-
bined with the encapsulation process, provides the user a
product that is more environmentally rugged.
The PWR60XX has full isolation between input and output to
give the designer maximum flexibility in grounding options and
polarity configurations. The outputs are protected against shorts
to increase the units survivability in harsh environments.
FEATURES
G
G
G
G
G
G
G
G
G
G
Low Cost
Low Noise
Industry-Standard Package
Single and Dual Outputs
High Isolation Voltage Option Available
Linear Output Regulation
Internal Input and Output Filtering
Low EMI Transformer Design
No External Components Required
Thermal Shutdown Protection

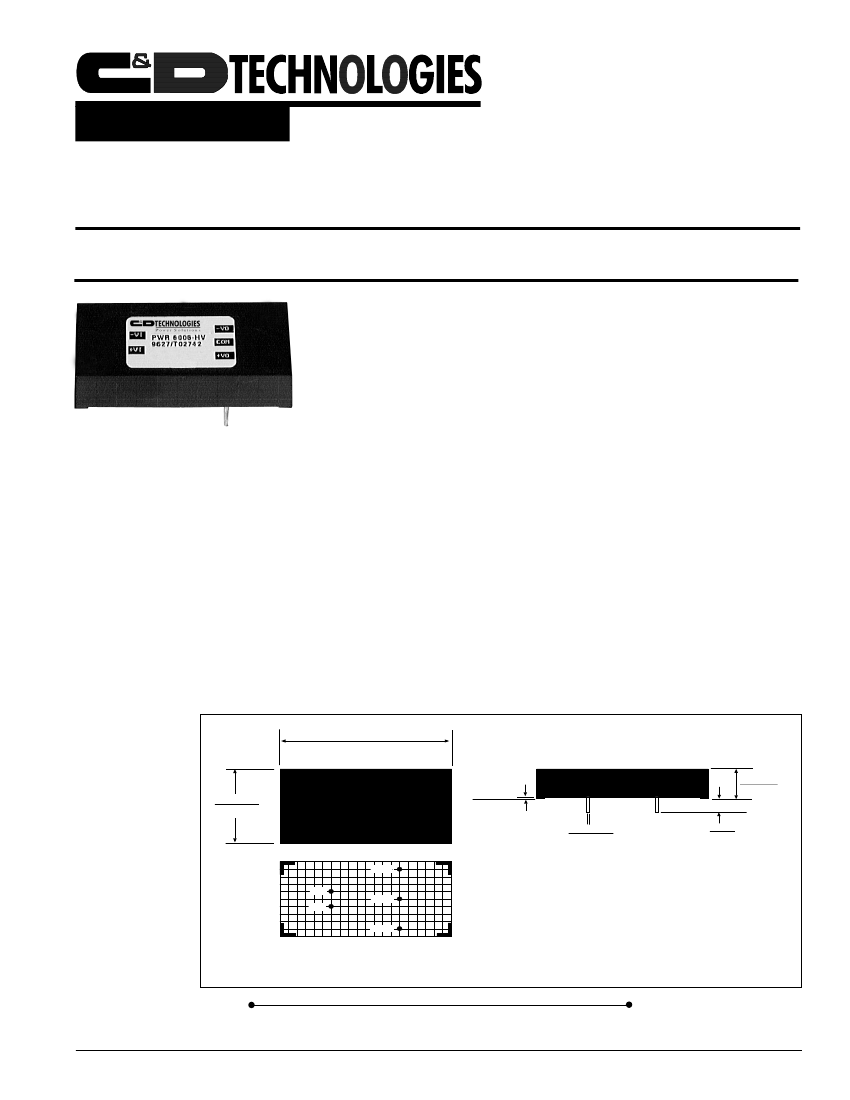

MECHANICAL
TOP VIEW
2.000±0.015"
(50.80±0.38)
SIDE VIEW
0.400±0.10"
(10.16)
1.000±0.015"
(25.4±0.38)
0.015±.005"
(0.38)
0.040±0.003"
(1.02±0.08)
0.170" Min.
(4.32)
+V
OUT
NOTES: All dimensions are in inches (millimeters).
GRID: 0.100 inches (2.54 millimeters)
PIN PLACEMENT TOLERANCE: ±0.015
+
V
IN
*
COM
-V
IN
-V
OUT
BOTTOM VIEW
*
Common pins are not present on single output models.
Product marked with specific model ordered, date code, job code.
MATERIAL: Units are encapsulated in a low thermal resistance
molding compound which has excellent chemical resistance, wide
operating temperature range, and good electrical properties under
high humidity environments. The encapsulant and the outer shell
of the unit have UL94V-0 ratings. Lead material is brass with a
solder plated surface to allow ease of solderability.
Power Electronics Division, Europe
C&D Technologies (Power Electronics) Ltd.
132 Shannon Industrial Estate, Shannon, Co. Clare, Ireland
Tel: +353.61.474.133
Fax:+353.61.474.141
Page 1
Internet: http://www.cdpowerelectronics.com
Power Electronics Division, United States
3400 E Britannia Drive, Tucson, Arizona 85706
Phone: 800.547.2537
Fax: 520.770.9369
PWR60XX 6/99 REV D

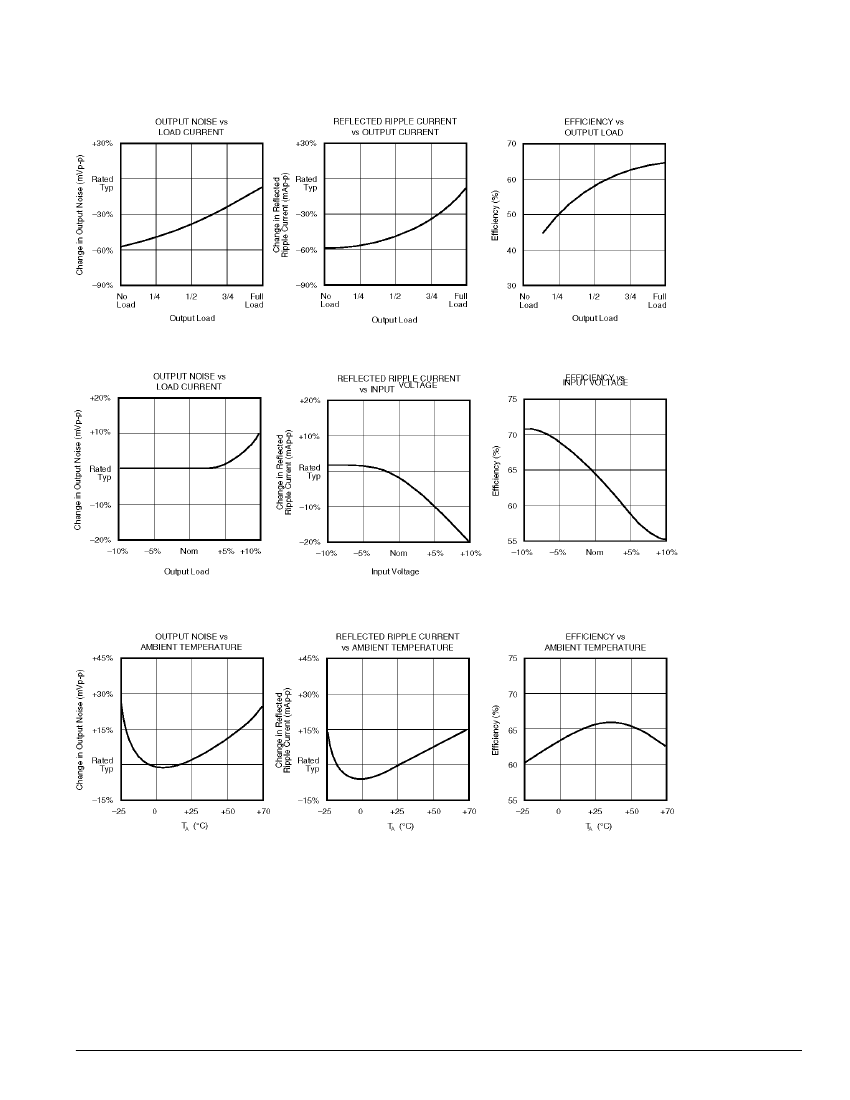

ELECTRICAL SPECIFICATIONS
Specifications typical at T
A
= +25°C, rated input voltage, rated output current unless otherwise specified.
NOMINAL
INPUT
VOLTAGE
MODEL
PWR6000
PWR6004
PWR6005
PWR6006
PWR6010
PWR6011
PWR6012
PWR6016
PWR6017
PWR6018
PWR6023
(V
DC
)
5
5
5
12
12
12
15
15
15
24
24
RATED
OUTPUT
VOLTAGE
(V
DC
)
5
±12
±15
5
±12
±15
5
±12
±15
5
±15
RATED INPUT CURRENT REFLECTED
OUTPUT
NO
RATED
RIPPLE
CURRENT
LOAD LOAD
CURRENT
EFFICIENCY
(mA)
360
±75
±60
360
±75
±60
360
±75
±60
360
±60
(mA)
70
70
70
30
30
30
25
25
25
13
13
(mA)
655
570
555
275
240
230
220
190
185
120
120
(mAp-p)
15
15
15
10
10
10
8
8
8
12
12
(%)
55
63
65
55
63
65
55
63
65
62
62
ABSOLUTE MAXIMUM RATINGS
Output Short-Circuit Duration
Outputs to Common .................. Continuous
Output to Output ....................... Momentary

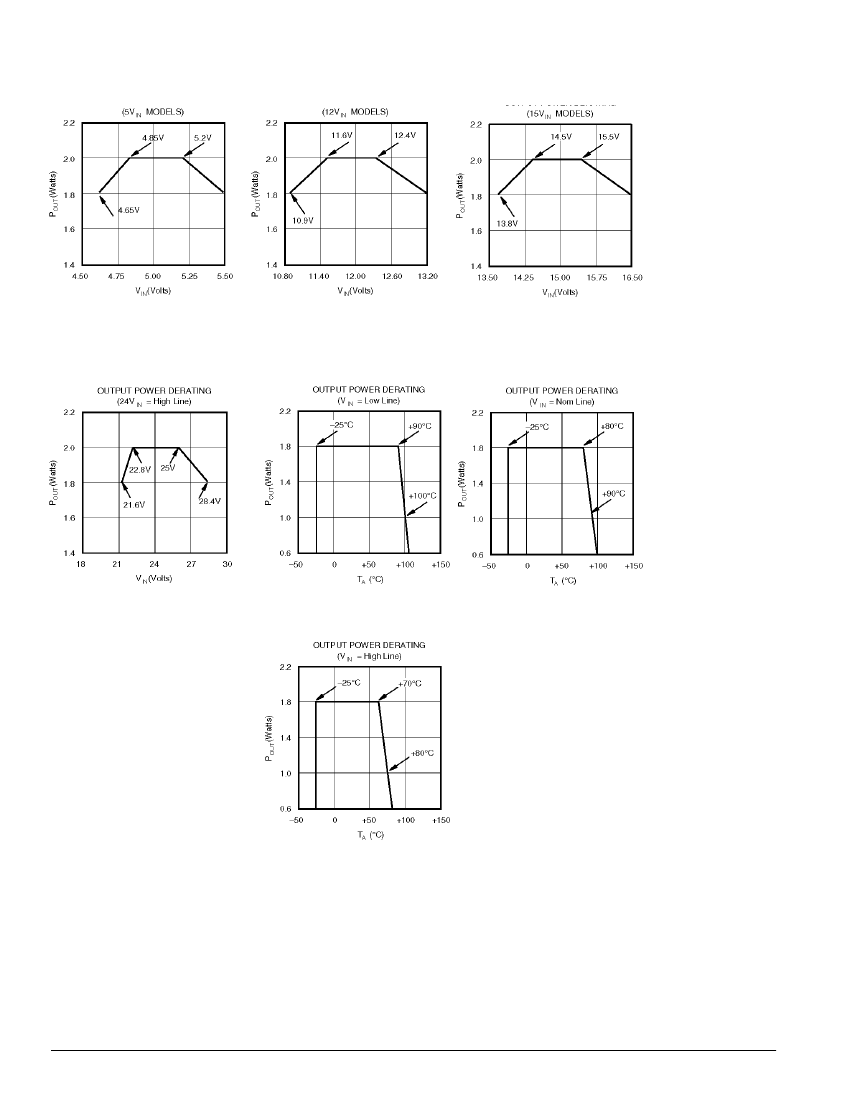

Output Power ......................................... 2.0W
Lead Temperature .............................. +300°C
(soldering, 10 seconds max)
TYPICAL APPLICATIONS
NOTE: Other input to output voltages may be available. Please consult factory.
COMMON SPECIFICATIONS
Specifications typical at T
A
= +25°C, rated input voltage, rated output current unless otherwise specified.
PARAMETER
INPUT
CONDITIONS
PWR6000
PWR6004
PWR6005
PWR6006
PWR6010
PWR6011
PWR6012
PWR6016
PWR6017
PWR6018
PWR6023
MIN
4.65
4.65
4.65
10.9
10.9
10.9
13.9
13.9
13.9
21.6
21.6
500
500
10
27
V
ISO
= 240V
AC
, 60Hz
5
TYP
5.0
5.0
5.0
12.0
12.0
12.0
15.0
15.0
15.0
24
24
MAX
5.5
5.5
5.5
13.2
13.2
13.2
16.5
16.5
16.5
26.4
26.4
UNITS
V
DC
V
DC
V
DC
V
DC
V
DC
V
DC
V
DC
V
DC
V
DC
V
DC
V
DC
V
DC
Vpk
GΩ
pF
µArms
ISOLATION (Standard)
Rated Voltage
Test Voltage
Resistance
Capacitance
Leakage Current
ISOLATION (–HV Option)
Rated Voltage
Test Voltage
Resistance
Capacitance
Leakage Current
OUTPUT
Rated Power
Voltage Setpoint Accuracy
Temperature Coefficient
Ripple and Noise
REGULATION
Line
Load
GENERAL
Switching Frequency
Package Weight
MTTF per MIL-HDBK-217, RevE
TEMPERATURE
Specification
Operation
Storage
1000
3000
10
27
V
ISO
= 240V
AC
, 60Hz
–25°C - T
A
- +70°C
Rated Load, Nominal Vin
BW =
DC
to 10MHz
High Line to Low Line
Full Load to No Load
1.8
±2
±0.01
20
±0.2
0.5
150
20
930,000
–25
–25
–40
+25
+70
+100
+110
45
±1.0
1.0
5
V
DC
Vpk
GΩ
pF
µArms
ORDERING INFORMATION
Watts
%
%/°C
mVp-p
%
%
kHz
g
Hr
°C
°C
°C
PWR
Device Family
PWR Indicates
DC/DC converter
Model Number
Selected From Table of Electrical
Characteristics
High Voltage Option
No Designator Indicates Standard Model
Screening Option
60XX
–HV
/H
Circuit Stress Method
Page 2
PWR60XX 6/99 REV D
