HD74LS114RP-EL datasheet, PDF - EEWORLD Datasheet

HD74LS114RP-EL: DescriptionLS SERIES, J-K FLIP-FLOP, PDSO14, FP-14DN; Categorylogic logic; File Size77KB，7 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

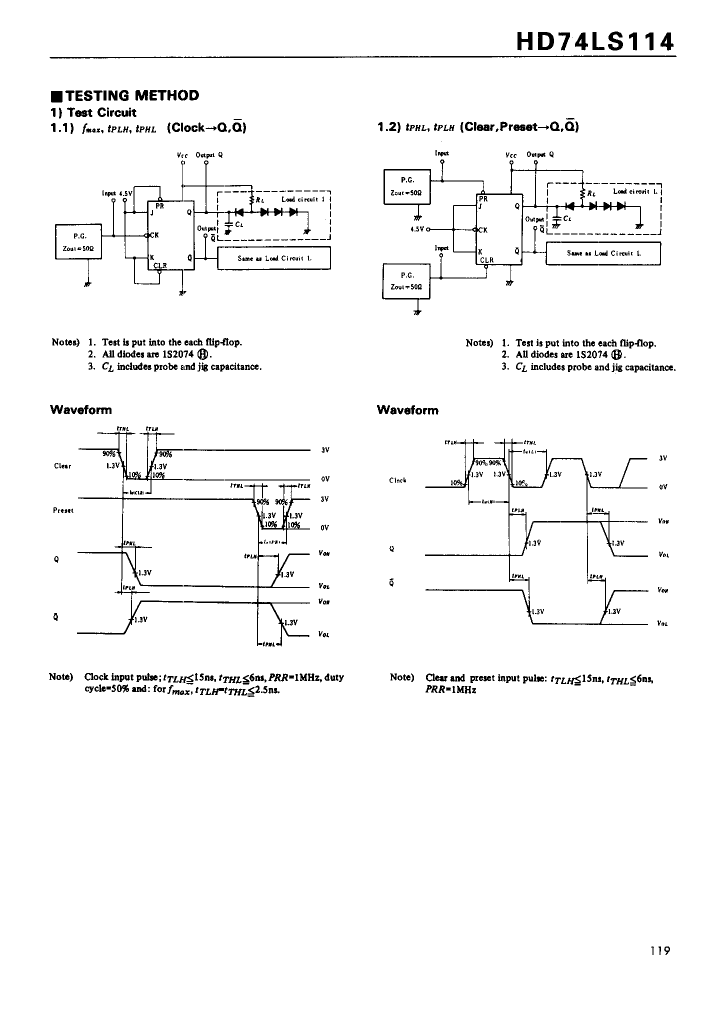

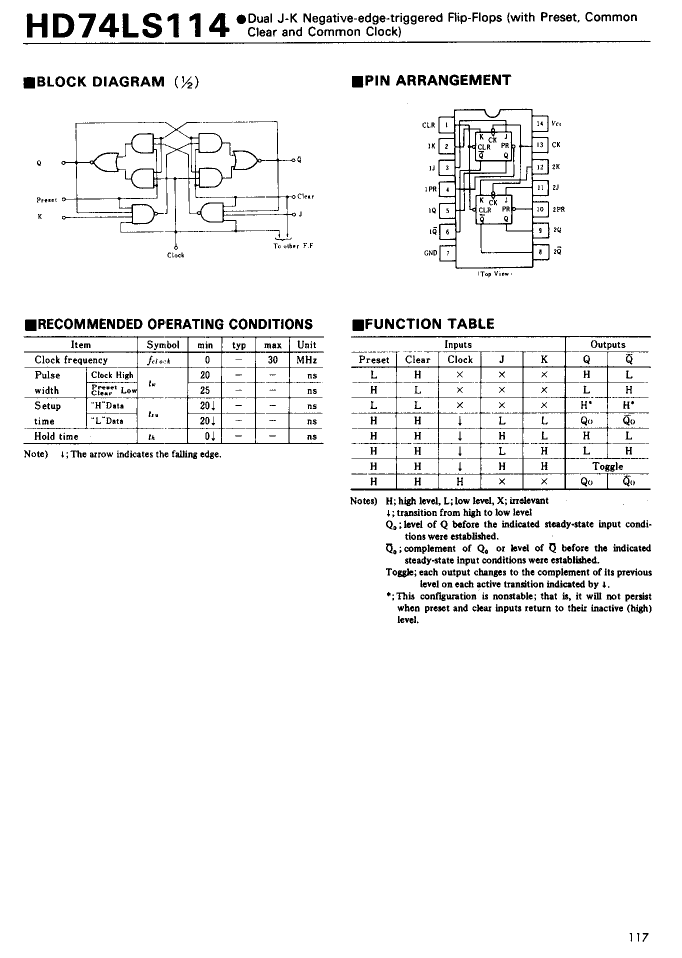

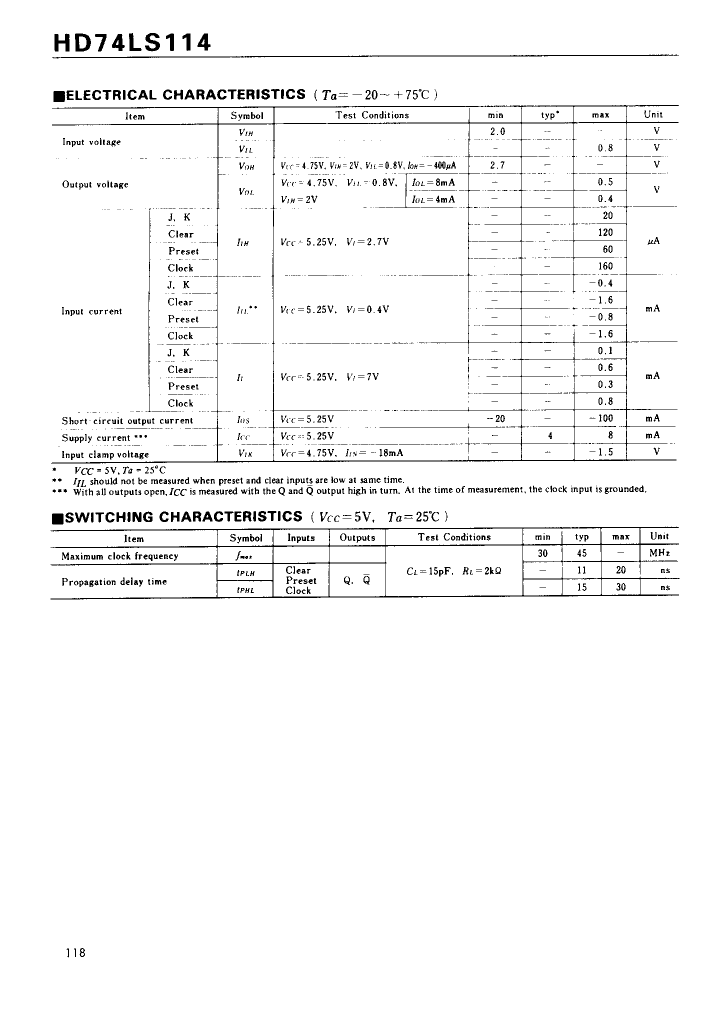

HD74LS114RP-EL Overview

LS SERIES, J-K FLIP-FLOP, PDSO14, FP-14DN

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	SOIC
package instruction	SOP,
Contacts	14
Reach Compliance Code	unknown
Other features	WITH INDIVIDUAL SET INPUTS
series	LS
JESD-30 code	R-PDSO-G14
length	8.65 mm
Logic integrated circuit type	J-K FLIP-FLOP
Number of digits	2
Number of functions	1
Number of terminals	14
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	NEGATIVE EDGE
width	3.95 mm
minfmax	30 MHz

	HD74LS114RP-EL	HD74LS114FP-EL
Description	LS SERIES, J-K FLIP-FLOP, PDSO14, FP-14DN	LS SERIES, J-K FLIP-FLOP, PDSO14, FP-14DA
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	SOIC	SOIC
package instruction	SOP,	SOP,
Contacts	14	14
Reach Compliance Code	unknown	unknown
Other features	WITH INDIVIDUAL SET INPUTS	WITH INDIVIDUAL SET INPUTS
series	LS	LS
JESD-30 code	R-PDSO-G14	R-PDSO-G14
length	8.65 mm	10.06 mm
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP
Number of digits	2	2
Number of functions	1	1
Number of terminals	14	14
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
propagation delay (tpd)	30 ns	30 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	2.2 mm
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Trigger type	NEGATIVE EDGE	NEGATIVE EDGE
width	3.95 mm	5.5 mm
minfmax	30 MHz	30 MHz
