TS178RL00 Series
1A Ultra Low Dropout Voltage Regulator
with Enable Function
ITO-220-4L
Pin Definition:
1. Input
2. Output
3. Ground
4. Enable
TO-252-5L
(PPAK)
Pin Definition:
1. Input
2. Enable
3. Output
4. N/C
5. Ground
General Description
The TS178RL00 Series is a low-dropout voltage regulator suitable for various electronic equipments. It provides
constant voltage power source with ITO-220-4L full mold package and TO-252-5L.
Dropout voltage of TS178RL00 Series is below 0.5V in full rated current (1A). This regulator has various functions
such as a peak current protection, thermal shut down, over voltage protection and an output disable function.
Features
●
●
●
●
●
●
Ultra Low Dropout performance 0.5Vmax. 1A
Over Current Protection & Thermal Shutdown
Short Circuit Protection
Output Enable Function
±2.4% Typical Total output
TO-220 Full-Mold Package (4Pin) and TO-25205L
Ordering Information
Part No.
Package
Packing
TS178RLxxCI4 C0
ITO-220-4L
50pcs / Tube
TS178RLxxCP5 RO TO-252-5L 2.5Kpcs / 13” Reel
Note: Where
xx
denotes voltage option,
33=3.3V, 05=5V, 08=8V, 09=9V, 12=12V, 15=15V

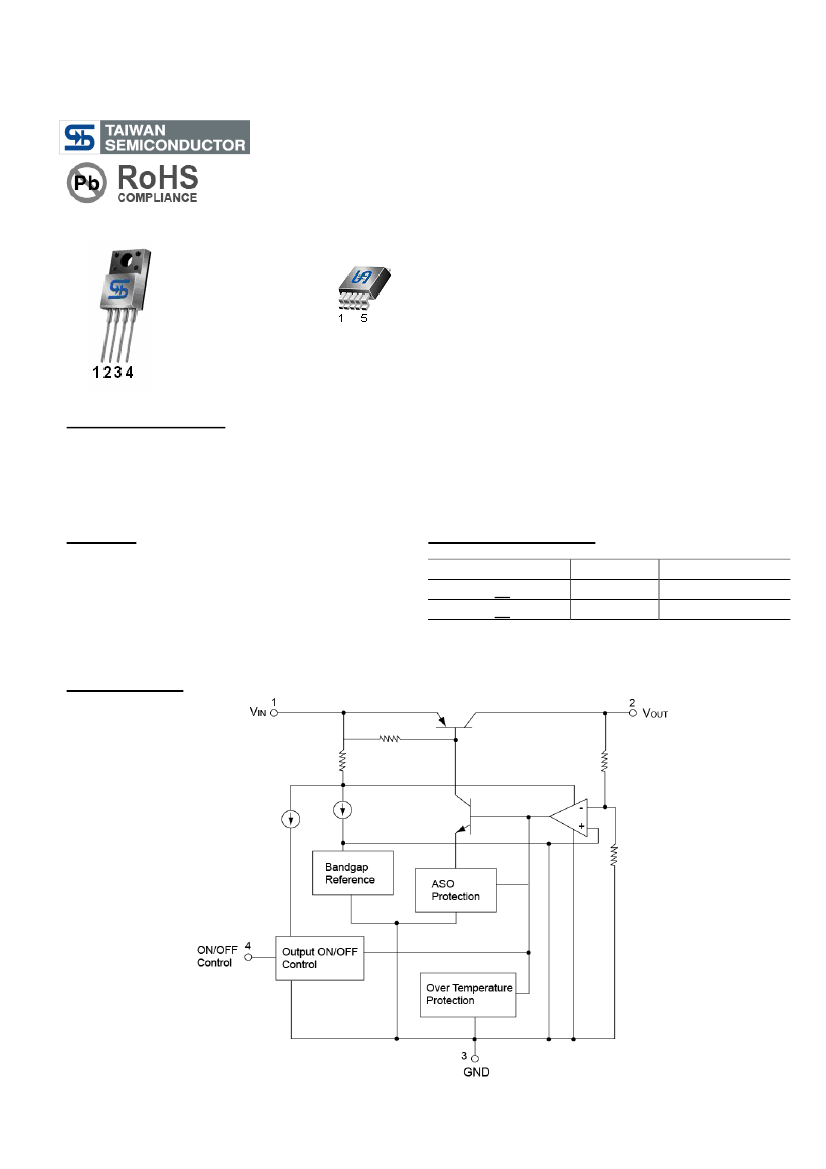

Block Diagram
1/6
Version: P07
Preliminary
TS178RL00 Series
1A Ultra Low Dropout Voltage Regulator
with Enable Function
Absolute Maximum Rating
Parameter
Input Voltage
Disable Voltage
Output Current
Power Dissipation 1
Power Dissipation 2
Power Dissipation
Symbol
V
IN
V
DIS
I
O
P
D
1
P
D
2
P
D
T
J
Rθ
JC
Rθ
JA
T
SD
Value
18
18
1
1.5
15
8
-40~+125
4.31
48.83
150
Unit
V
V
A
W
W
W
ºC
ºC / W
ºC / W
ºC
Remark
--
--
--
No heat sink
With heat sink
Infinite heat Sink
--
--
--
--
ITO-220-4L
TO-252-5L
Junction Temperature
Thermal Resistance, Junction-to Case (Note2)
Thermal Resistance, Junction-to Air (Note2)
Thermal Shutdown Temperature
Electrical Specifications
(V
IN
=Note 6, Io=1.0A, Ta=25ºC, unless otherwise specified).
Parameter
TS178RL33
TS178RL05
Output Voltage
TS178RL08
TS178RL09
TS178RL12
TS178RL15
Load Regulation
Line Regulation
Ripple Rejection Ratio
Dropout Voltage
Disable Voltage High
Disable Voltage Low
Disable Bias Current High
Disable Bias Current Low
Quiescent Current
REG
LOAD
REG
LINE
RR
V
DROP
V
DIS
H
V
DIS
L
I
DIS
H
I
DIS
L
Iq
Io =5mA~1A
Note 7
Note1
Io=1A
Output Active
Output Disabled
V
DIS
=2.7V
V
DIS
=0.4V
Io=0A
Vo
Symbol
Conditions
Min.
3.22
4.88
7.80
8.78
11.71
14.64
--
--
45
--
2.0
--
--
--
--
Typ.
3.3
5.0
8.0
9.0
12
15
0.1
0.5
55
--
--
--
--
--
--
Max.
3.38
5.12
8.20
9.22
12.28
15.36
2.0
2.5
--
0.5
--
0.8
20
-0.4
10
Unit
V
%
%
dB
V
V
V
uA
mA
mA
Note:
1.These parameters, although guaranteed, are not 100% tested in production.
2. Junction -to -case thermal resistance test environments.
3. Pneumatic heat sink fixture.
4. Clamping pressure 60psi through 12mm diameter cylinder.
5. Thermal grease applied between PKG and heat sink fixture
6. TS178RL33: V
IN
=5V, TS178RL05: V
IN
=7V, TS178RL08: V
IN
=10V, TS178RL09: V
IN
=11V, TS178RL12: V
IN
=15V,
TS178RL15: V
IN
=18V
7. TS178RL33: V
IN
=4~10V, TS178RL05: V
IN
=6~12V, TS178RL08: V
IN
=9~18V, TS178RL09: V
IN
=10~18V,
TS178RL12: V
IN
=13~18V, TS178RL15: V
IN
=16~18V
2/6
Version: P07
Preliminary
TS178RL00 Series
1A Ultra Low Dropout Voltage Regulator
with Enable Function

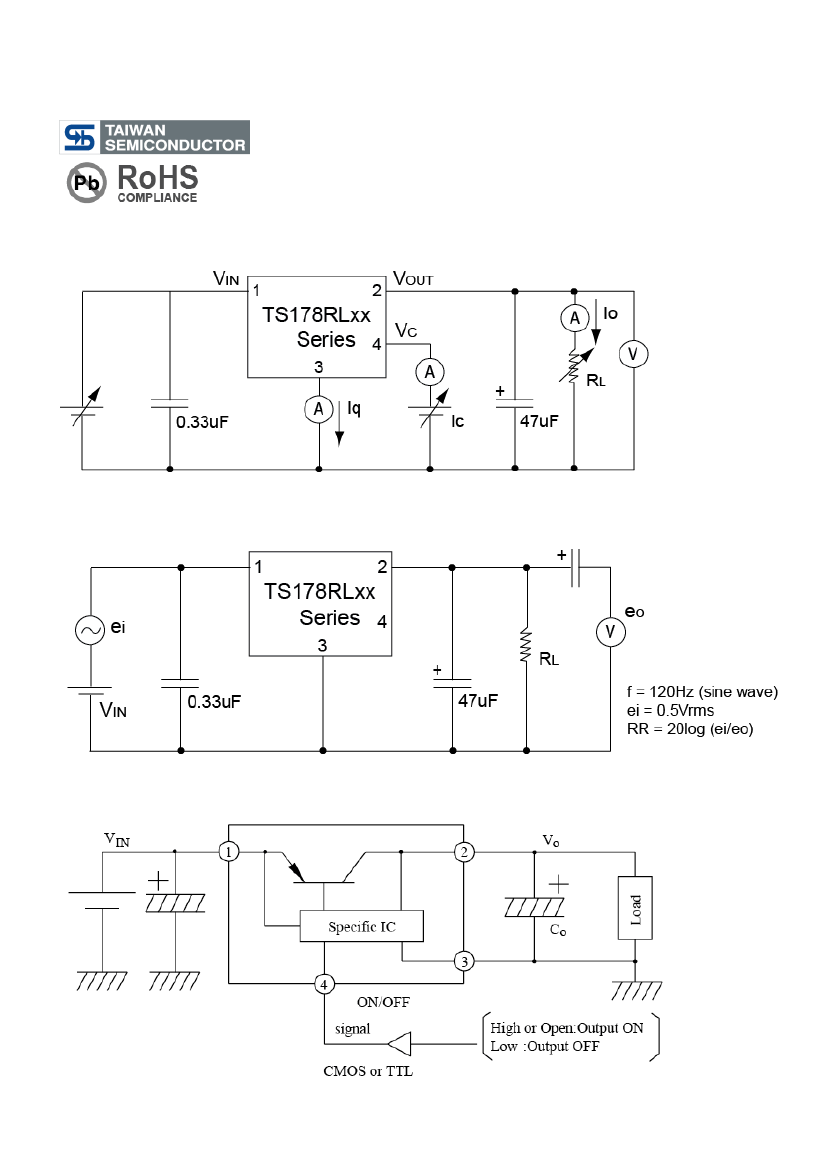

Standard Test Circuit
Ripple Rejection Test Circuit
Standard Application Circuit
3/6
Version: P07
Preliminary
TS178RL00 Series
1A Ultra Low Dropout Voltage Regulator
with Enable Function
ITO-220-4L Mechanical Drawing
DIM
A
A1
A2
D
E
E1
L
L2
L2
He
C
E
b
θ
ITO-220-4L DIMENSION
MILLIMETERS
INCHES
MIN
MAX
MIN
MAX
4.42
4.72
0.174
0.186
2.69
2.89
0.136
0.114
1.68
1.88
0.066
0.074
10.00
10.20
0.394
0.402
6.85
7.05
0.269
0.278
8.54
8.74
0.336
0.344
13.15
13.55
0.518
0.533
16.56
16.76
0.652
0.660
3.60
3.80
0.142
0.150
28.44
28.92
1.119
1.159
0.48
0.019
2.54(TYP)
0.1(TYP)
0.635(TYP)
0.025(TYP)
4°
7°
4°
7°
Marking Diagram
XX
= Voltage Code
(33=3.3V, 05=5V, 08=8V, 09=9V, 12=12V, 15=15V)
Y
= Year Code
M
= Month Code
(A=Jan,
B=Feb, C=Mar, D=Apl, E=May, F=Jun, G=Jul, H=Aug, I=Sep,
J=Oct, K=Nov, L=Dec)
L
= Lot Code
CI4
= Package Code for Adjustable type
(CI4 = ITO-220-4L)
4/6
Version: P07
Preliminary
TS178RL00 Series
1A Ultra Low Dropout Voltage Regulator
with Enable Function
TO-252-5L Mechanical Drawing
TO-252-5L DIMENSION
MILLIMETERS
INCHES
MIN
MAX
MIN
MAX.
6.350
6.730
0.250
0.265
9.080
10.440
0.357
0.411
0.460
0.640
0.018
0.025
1.27BSC
0.05BSC
2.19
2.380
0.086
0.094
0.460
0.570
0.018
0.022
1.400
1.780
0.055
0.070
0.460
0.570
0.018
0.022
5.34
5.550
0.210
0.219
1.520
2.030
0.060
0.080
DIM
A
B
C
D
E
F
G
H
I
J
Marking Diagram
XX
= Voltage Code
(33=3.3V, 05=5V, 08=8V, 09=9V, 12=12V, 15=15V)
Y
= Year Code
M
= Month Code
(A=Jan,
B=Feb, C=Mar, D=Apl, E=May, F=Jun, G=Jul, H=Aug, I=Sep,
J=Oct, K=Nov, L=Dec)
L
= Lot Code
CP5
= Package Code for Adjustable type
(CP5 = TO-252-5L)
5/6
Version: P07
