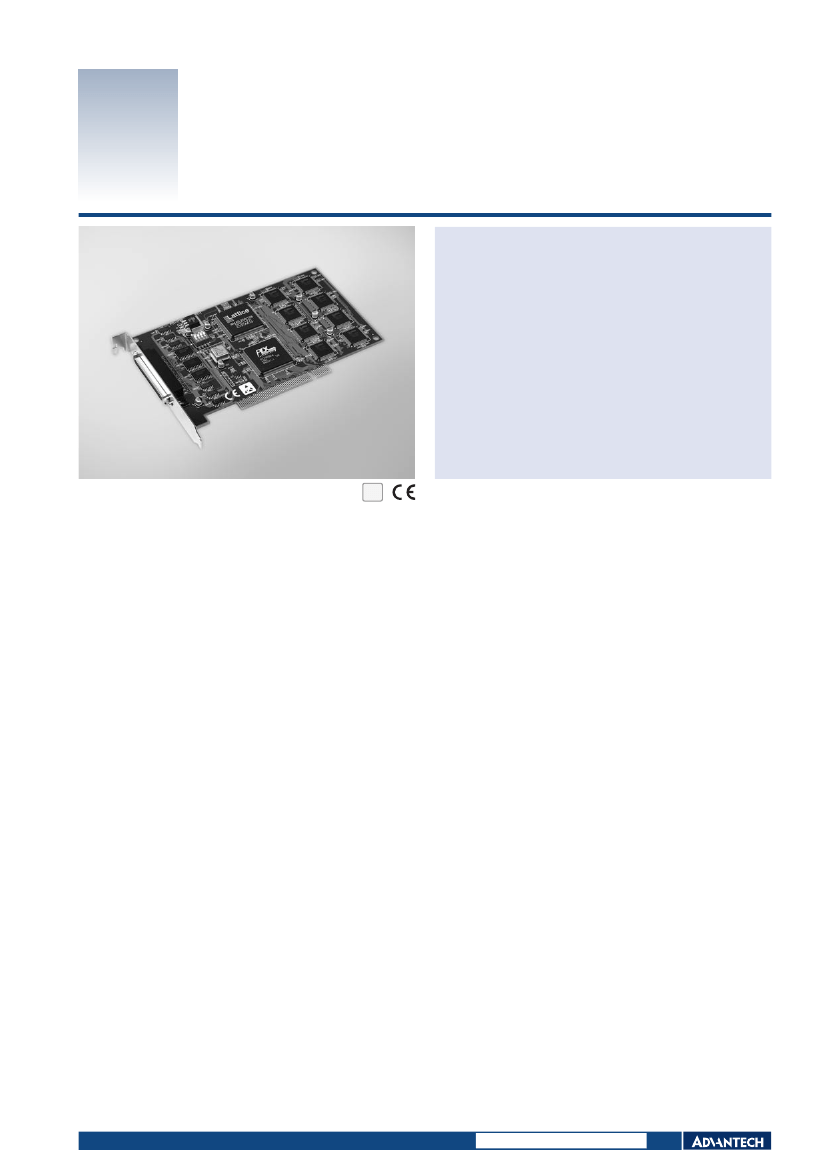

PCI-1780U
8-ch, 16-bit Counter/Timer Universal
PCI Card
Features
8 independent 16-bit counters
8 programmable clock source
8 digital TTL outputs and 8 digital TTL inputs
Up to 20 MHz input frequency
Multiple counter clock source selectable
Counter output programmable
Counter gate function
Flexible interrupt source select
BoardID™ switch
RoHS
2002/95/EC
COMPLIANT
Introduction
PCI-1780U is a general purpose multi-channel counter/timer card for the PCI bus. It targets the AM9513 to implement the counter/timer function by CPLD. It provides eight 16-bit
counter channels, 8 digital outputs and 8 digital inputs. Its powerful counter functions cater to a broad range of industrial and laboratory applications.
The card features 12 programmable counter modes, to provide one shot output, PWM output, periodic interrupt output, time-delay output, and to measure the frequency and the pulse
width. The PCL-10168 shielded cable works well with PCI-1780U to reduce noise. Its wires are all twisted pairs, and the input signals and output signals are separately shielded,
providing minimal cross talk between signals and the best protection against EMI/EMC problems.
Specifications
Digital Input
Channels
Compatibility
Input Voltage
Interrupt Capable Ch.
8
5 V/TTL
Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
CH0
General
Universal PCI V2.2
1 x 68-pin SCSI female connector
175 x 100 mm (6.9" x 3.9")
Typical: +5 V @ 900 mA
Max.: +5 V @ 1.2 A
Operating Temperature
0 ~ 60° C (32 ~ 140° F) (IEC 68-2-1, 2)
Storage Temperature
-20 ~ 70° C (-4 ~ 158° F)
Storage Humidity
5 ~ 95 % RH, non-condensing (IEC 68-2-3)
Bus Type
I/O Connectors
Dimensions (L x H)
Power Consumption
Digital Output
Channels
Compatibility
Output Voltage
Output Capability
8
5 V/TTL
Logic 0: 0.8 V
Logic 1: 2.0 V
Sink: 24 mA @ 0.8 V
Source: -15 mA @ 2.0 V
Ordering Information
PCI-1780
PCL-10168-1
PCL-10168-2
ADAM-3968
8-ch, 16-bit Counter/Timer Universal PCI Card
68-pin SCSI Shielded Cable, 1 m
68-pin SCSI Shielded Cable, 2 m
68-pin DIN-rail SCSI Wiring Board
Counter/Timer
Channels
Resolution
Compatibility
Max. Input Frequency
Reference Clock
8 (independent)
16 bits
5 V/TTL
20 MHz
Internal: 20 MHz
External clock: 20 MHz max.
12 (programmable)
8
8
Counter Modes
Interrupt Capable Ch.
PWM Channels
Online Download
