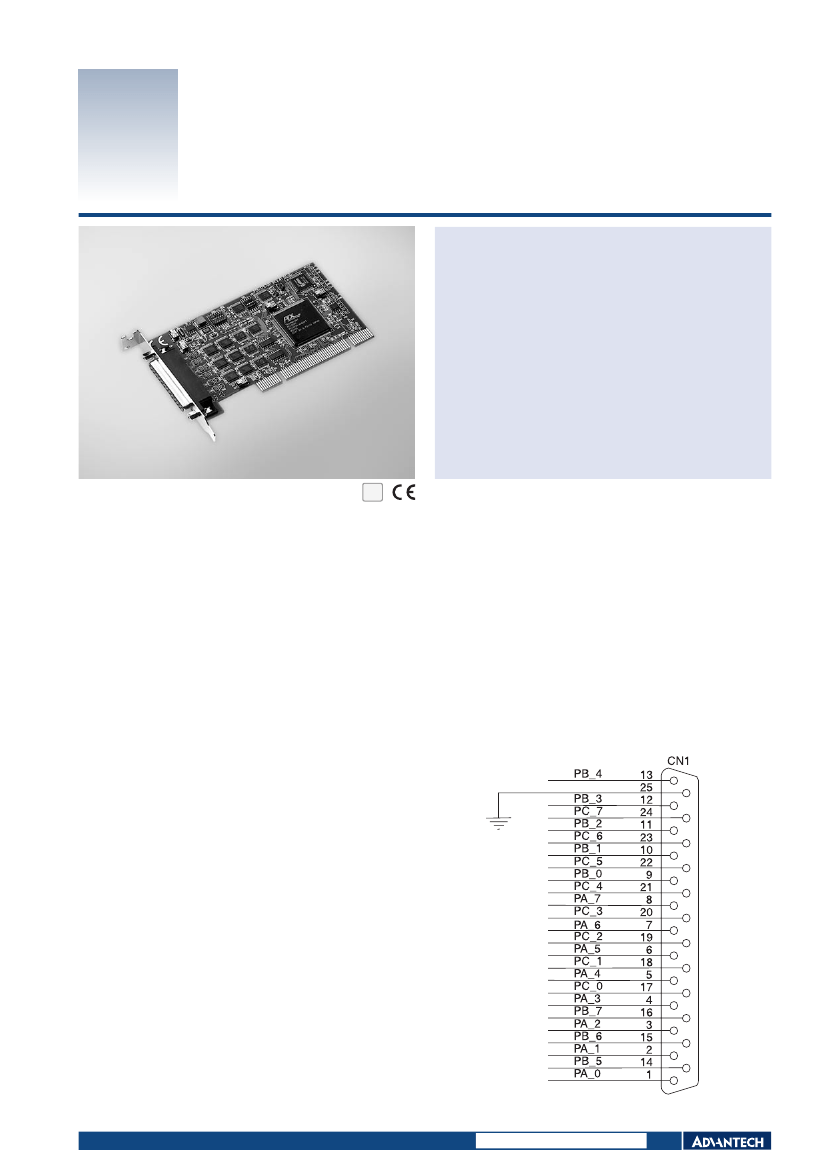

24-ch Digital I/O Low Profile Universal PCI Card

Preview

Download Datasheet

View All

PCI-1757UP

24-ch Digital I/O Low Profile Universal

PCI Card

Features



Low profile PCI form factor



Universal PCI bus



24 TTL level digital I/O channels



Emulates mode 0 of 8255 PPI



Buffered circuits provide higher driving capability



Output status read-back



I/O configurable by software or on board DIP switch



Keeps the output settings and values after system hot reset



BoardID™ switch



Convenient DB25 connector



Supports both dry and wet contact

RoHS

2002/95/EC

COMPLIANT

Introduction

PCI-1757UP is a 24-channel digital I/O low profile PCI card that meets the PCI standard REV.2.2 (universal PCI expansion card). The card also works with 3.3 V and 5 V PCI slots, and

provides you with 24 parallel digital input/output channels that emulate mode 0 of the 8255 PPI chip. However, the buffered circuits offer a higher driving capability than the 8255.

Specifications

Digital Input



Channels



Compatibility



Input Voltage



Interrupt Capable Ch.

24 (shared with output)

5 V/TTL

Logic 0: 0.8 V @ -0.2 mA

Logic 1: 2.0 V @ 20 mA

Ordering Information



PCI-1757UP

ADAM-3925

PCL-10125-1

PCL-10125-3

PCLD-782B

PCLD-785B

24-ch Digital I/O Low Profile Universal PCI Card

DB25 DIN-rail Wiring Board

DB25 Cable, 1 m

DB25 Cable, 3 m

24-ch IDI Board w/ 20-pin & 50-pin Flat Cables

24-ch Relay Board w/ 20-pin & 50-pin Flat Cables

Digital Output



Channels



Compatibility



Output Voltage



Output Capability

24 (shared with input)

5 V/TTL

Logic 0: 0.5 V max. @ -24 mA

Logic 1: 3.7 V max. @ 24 mA

Sink: 24 mA

Source: 15 mA

Pin Assignments

General

Universal PCI V2.2

1 x DB25 female connector

120 x 64 mm (4.7" x 2.5") Low profile MD1

Typical: 5 V @ 140 mA

Max: 5 V @ 200 mA



Operating Temperature

0 ~ 70° C (32 ~ 158° F)



Storage Temperature

-20 ~ 80° C(-4 ~ 176° F)



Storage Humidity

5 ~ 95% non-condensing



Bus Type

I/O Connectors

Dimensions (L x H)

Power Consumption

Online Download

www.advantech.com/products
