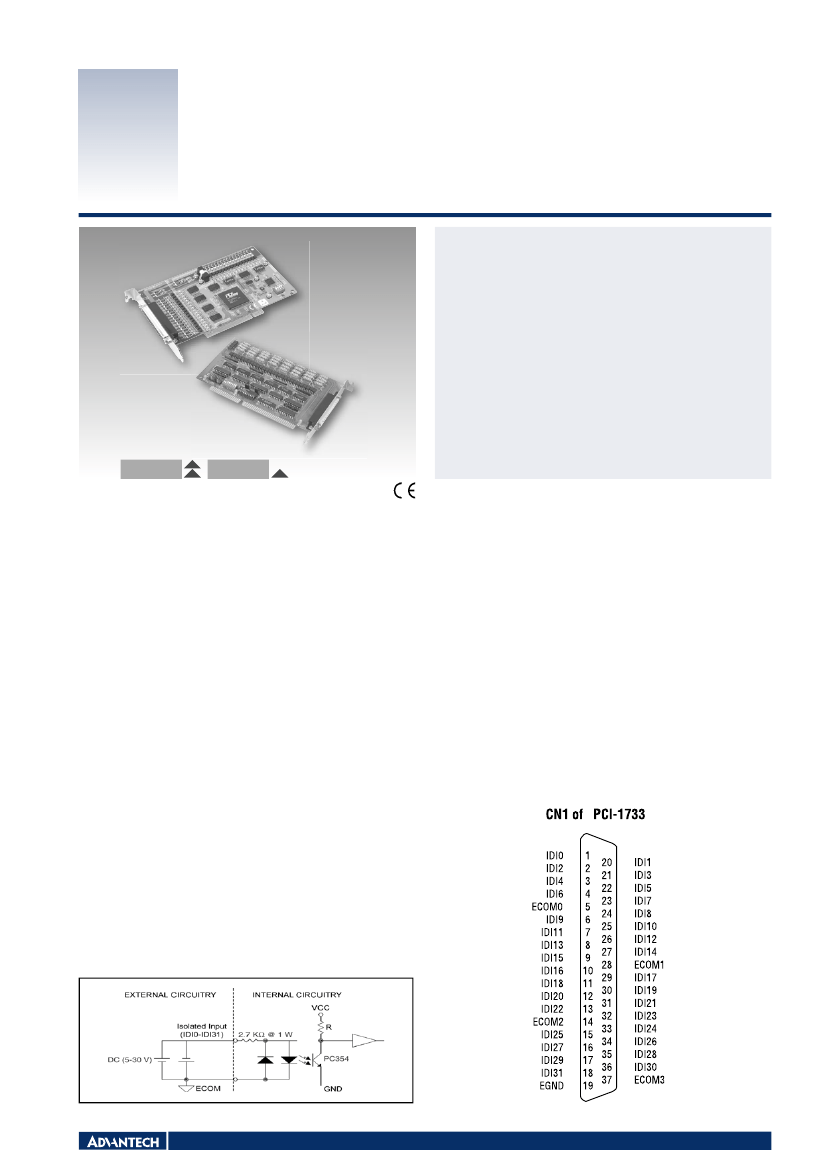

PCI-1733
PCL-733
Features
Interrupt capacity
32-ch Isolated Digital Input
Card with PCI Interface
32-ch Isolated Digital Input
Card with ISA Interface
32 isolated, digital input channels
High-voltage isolation (2,500 V
DC
)
D-type connectors for isolated input channels
Reverse voltage protection for isolated input channels (up to 24 V
DC
)
PCI-1733
PCL-733
Introduction
The PCI-1733 and PCL-733 cards offer 32 isolated digital input channels with isolation protection up to 2,500 V
DC
, which makes them ideal for industrial applications where high-
voltage isolation is required.
Specifications
Isolated Digital Input
Input Channels
Input Voltage
32 (16-ch/group)
Logic 0: PCI-1733: 2 V max., PCL-733: 1 V max.
Logic 1: 5 V min.
PCI-1733: 30 V max., PCL-733: 24 V max.
Interrupt Capable Ch.
4 for PCI-1733, 2 for PCL-733
Isolation Protection
2,500 V
DC
Opto-Isolator Response
PCL-733: 100 µs, PCI-1733: 25 µs
Input Resistance
PCI-1733: 2.7 kΩ @ 1 W
PCL-733: 1.2 kΩ @ 0.5 W
PCI-1733: PCI V2.2, PCL-733: ISA
1 x 37-pin D-type female
PCL-733: 185 x 100 mm (7.3” x 3.9”)
PCI-1733: 175 x 100 mm (6.9” x 3.9”)
Ordering Information
PCI-1733
PCL-733
PCLD-780
PCLD-880
ADAM-3937
PCL-10137-1
PCL-10137-2
PCL-10137-3
32-channel isolated PCI digital input card, manual and
driver CD-ROM (cable not included)
32-channel isolated digital input card, manual and
driver CD-ROM (cable not included)
Universal screw terminal board
Universal screw terminal board
DB37 wiring terminal for DIN-rail mounting
DB37 cable, 1m
DB37 cable, 2m
DB37 cable, 3m
General
Bus Type
I/O Connectors
Dimensions (L x H)
Power Consumption
PCL-733:
Pin Assignment
Typical: +5 V @ 320 mA
Max: +5 V @ 500 mA
PCI-1733:
Typical: 5V @ 200 mA, 12 V @ 50 mA
Max: 5V @ 350 mA, 12 V @ 75 mA
Operating Temperature
0 ~ 60° C (32 ~ 140° F)
Storing Temperature
PCL-733: -20 ~ 70° C (-4 ~ 158° F)
PCI-1733: -25 ~ 85° C (-13 ~ 185° F)
Storing Humidity
5 ~ 95% RH, non-condensing (IEC 68-2-3)
Isolated Input Circuit Diagram
Plug-in DA&C Cards
All product specifications are subject to change without notice
Last updated : 20-Jan-2006
