PCL-726
PCL-728

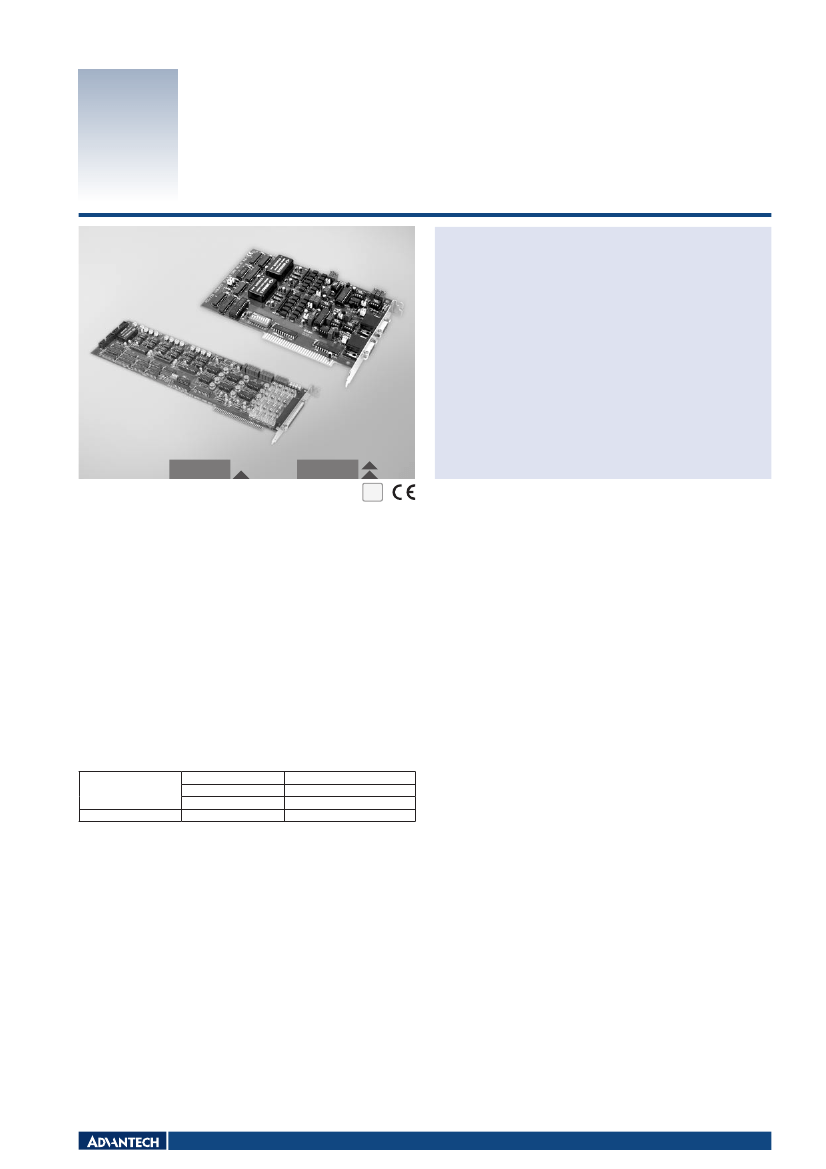

12-bit, 6-ch Analog Output ISA Card
with 32-ch Digital I/O
12-bit, 2-ch Isolated Analog Output
ISA Card
Features
Independent analog output channels
12-bit resolution double-buffered D/A converter
Multiple voltage ranges: ±10 V, ±5 V, 0 ~ +5 V, 0 ~ +10 V and 4 ~ 20 mA
current loop (sink)
16 digital input and 16 digital output channels (PCL-726)
Two DB9 connectors for easy wiring (PCL-728)
PCL-726
PCL-728
RoHS
2002/95/EC
COMPLIANT
Introduction
PCL-726, and PCL-728 are analog output cards with 12-bit analog output channels. You can individually configure each channel to any of the following ranges: 0 to +5 V, 0 to +10
V, ±5 V, ±10 V and 4 to 20 mA current loop (sink). Designed for use in industrial environments, these cards are ideal, economical solutions for applications that require multiple
analog outputs or current loops.
Specifications
Analog Output
Channels
Resolution
Output Rate
Reference Voltage
Output Range
Internal Reference
External Reference
General
PCL-726: 6
PCL-728: 2 isolated
12 bits, double buffered
Static update
Internal: -5 V (±0.05 V)
-10 V (±0.05 V)
External: DC or AC, ±10V max.
(Software programmable)
Bipolar (V)
Unipolar (V)
Current Loop (mA)
Bipolar (V)
±5
0 ~ 5, 0 ~10
4 ~ 20
±10
Bus Type
I/O Connectors
Dimensions (L x H)
Power Consumption
ISA
PCL-726: 4 x 20-pin box header
PCL-728: 2 x DB9 female connector
PCL-726: 340 x 100 mm (13.4" x 3.9")
PCL-728: 184 x 119 mm (7.25" x 4.7")
Isolation Protection
Driving Capability
Output Impedance
Operation Modes
Accuracy
Excitation Voltage
500 V
DC
(PCL-728)
5 mA
0.1
W
Software polling
0.012%
8 ~ 36 V for 4 ~ 20 mA current loop
PCI-726: +5 V @ 500 mA typical, 1 A max.
+12 V @ 80 mA typical, 110 mA max.
-12 V @ 60 mA typical, 90 mA max.
PCL-728: +5V @ 800 mA max.
Operating Temperature
0 ~ 50° C (32 ~ 122° F)
Storage Temperature
0 ~ 65° C (32 ~ 149° F)
Operating Humidity
5 ~ 95% RH, non-condensing (refer to IEC 68-2-3)
Ordering Information
PCL-726
PCL-728
PCL-10120-1
PCL-10120-2
PCLD-780
PCLD-782
PCLD-785
PCLD-880
ADAM-3909
ADAM-3920
12-bit, 6-ch AO ISA Card w/ Digital I/O
12-bit, 2-ch Isolated AO ISA Card
20-pin Flat Cable, 1 m
20-pin Flat Cable, 2 m
Screw Terminal Board w/ Two 20-pin Flat Cables
16-ch Isolated DI Board w/ 1m 20-pin Flat Cable
16-ch Relay Board w/ One 1m 20-pin Flat Cable
Wiring Board w/ Two 20-pin Flat Cables & Adapter
DB9 DIN-rail Wiring Board
20-pin DIN-rail Flat Cable Wiring Board
Digital Input (PCL-726)
Channels
Compatibility
Input Voltage
16
5 V/TTL
Logic 0: 0.8 V max.
Logic 1: 2.0 V min.
Digital Output (PCL-726)
Channels
Compatibility
Output Voltage
Output Capability
16
5 V/TTL
Logic 0: 0.5 V, Logic 1: 2.4 V
Sink: 0.5 V @ 0.4 mA max.
Source: 2.7 V @ 50 mA max.
Data Acquisition Boards
Embedded System
