PC/104
Isolated RS-232/422/ 485 Module
Dual-port RS-422/485 Module
4-port RS-232 High-Speed Module
u

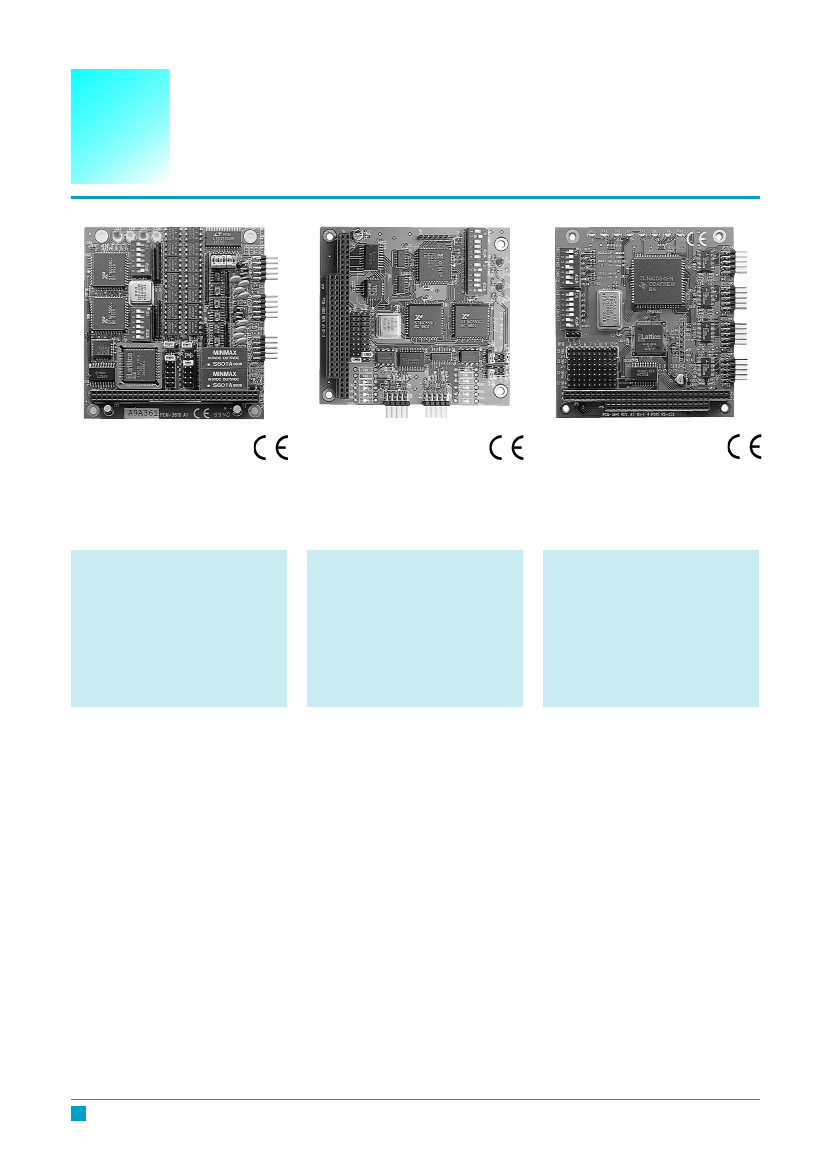

PCM-3610
Isolated RS-232/422/
485 Module
u
PCM-3612
Dual-port RS-422/485
Module
u
PCM-3640/3641
4-port RS-232
High-Speed Module
Features
• High speed transmission rate
• Automatic RS-485 data flow control
• Jumper selectable interrupt level
• Supports Windows 95/98/NT/2000/
ME, Linux (ICOM utility), DOS/
Windows 3.1
Features
• Long distance communication
• Automatic RS-485 data flow control
• Jumper selectable interrupt level
• Supports Windows 95/98/NT/2000/ME,
Linux (ICOM utility), DOS/Windows 3.1
Features
• Transmission speeds up to 460 Kbps
(PCM-3641)
• Shared IRQ settings for each of 4 RS-
232 ports (PCM-3641)
• Standard PC ports: COM1, COM2,
COM3, COM4 compatible
• Supports Windows 95/98/NT/2000/ME,
Linux (ICOM utility), DOS/Windows 3.1
Specifications
•
Channel 1:
RS-232,422,or 485
•
Channel 2:
RS-422, or RS-485
•
Baud rate:
50 ~ 115,200 bps
•
Character length:
5,6,7, or 8 bits
•
Parity:
Even, odd, or none
•
Stop bit:
1, 1.5, or 2
•
Interrupt level:
IRQ 3, 4, 5, 6, 7, 9
•
I/O connectors:
Dual male DB-9
•
Power consumption:
+5 V @ 400 mA typical
±12 V @ 950 mA max
•
Isolation:
500 V
DC
Specifications
•
Channel 1 and 2:
RS-422, or RS-485
•
Baud rate:
50 ~ 115,200 bps
•
Character length:
5,6,7,or 8 bits
•
Parity:
Even, odd, or none
•
Stop bit:
1, 1.5, or 2
•
Interrupt level:
IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12 or 15
•
I/O connectors:
dual male DB-9
•
Power consumption:
+5 V @ 400 mA typical
±12 V @ 950 mA max
•
LED:
Red LED for TX
Green LED for RX
Specification:
•
•
•
•
•
•
•
•
•
•
•
Bus interface:
PC/104
Number of ports:
4
I/O address:
0 x 0200 ~ 0 x 03F8
IRQ:
3, 4, 5, 6, 7, 9, 10, 11, 12, 15
Data bits:
5, 6, 7, 8
Stop bits:
1, 1.5, 2
Parity:
none, even, odd
Speed (bps):
50 ~ 460 K (PCM-3641)
50 ~ 115.2 K (PCM-3640)
Connectors:
Four DB-9 male
Data signals:
TxD, RxD, RTS, CTS, DTR,
DSR, DCD, RI, GND
Power requirement:
+5 V @ 200 mA (Typical) ;
+5 V @ 250 mA (Max.)
Operating Temperature:
0 ~ 65° C
(refer to IEC-68-1-1, 2)
Storage Temperature:
-25 ~ 80° C
•
•
Ordering Information
u
PCM-3610-A
Isolated RS-232/422/485 module
Ordering Information
u
PCM-3612-A
Dual port RS-422/485 module
Ordering Information
u
PCM-3641
4-port RS-232 High-Speed module
u
PCM-3640
4-port RS-232 module
7-32
Industrial Communications
PC/104
Jumperless Ethernet Module
PC/104-plus Ethernet Module
Dual-port Isolated CAN Interface Module
u

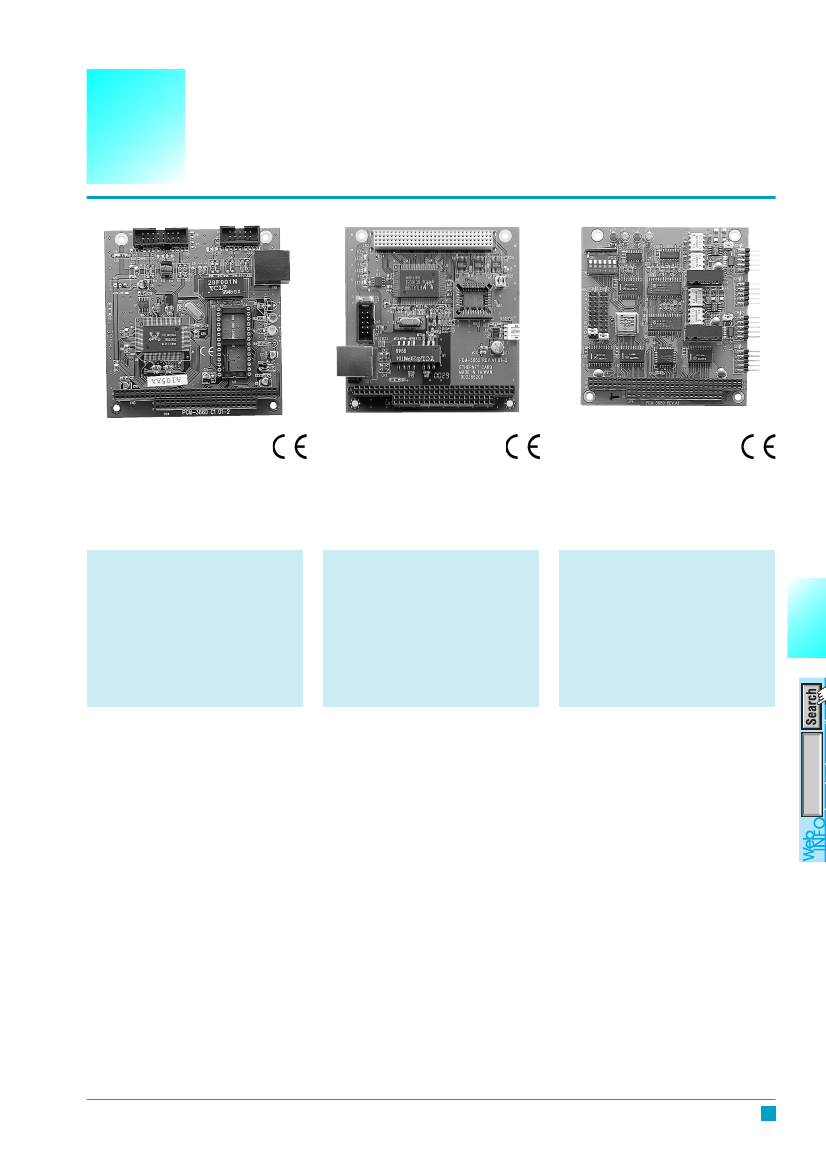

PCM-3660
Jumperless Ethernet
Module
u
PCM-3662
PC/104-plus Ethernet
Module
u
PCM-3680
Dual-port Isolated CAN
Interface Module
Features
• Automatically detects 8-bit or 16-bit
• AUI connector supports external
MAUs
• On-board 32 K byte buffer for muli-
package
Features
• Support IEEE 802.3u Ethernet
standard
• Support IEEE 802.3x Full Duplex Flow
Control
• Support 10/100 Base-T Ethernet
• Support Wake-On-LAN function
• Provide 4 modes LED definition
Features
• Operates two separate CAN networks
at the same time
• High speed transmission up to 1
Mbps
• Direct memory mapping enables very
fast access to the CAN controllers
• C library and examples included
• DOS Library, Utility and Win 3.1/NT
DeviceNet DLL drivers included
7
PCM-3610
Specifications
•
I/O address:
200, 220, 240, 260, 280,
2A0, 2C0, 300, 320, 340, 380, 3A0
•
Interrupt level:
IRQ 3, 4, 5, 9, 10, 11, 12 or 15
•
Boot ROM address:
C0000, C8000,
D0000, or D8000H
•
Data bus:
8-bit, 16-bit, or auto-sending
•
Connector:
16-bit PC/104 stackthrough
connector RJ-45 connector for 10Base-T,
16-pin insulation displacement connector
for AU1
•
Standard:
IEEE 802.3 10 Mbps CSMA/CD
10Base-T Transceiver
•
Power consumption:
+5 V @ 400 mA
max
Specifications
Hardware
•
PC-104 form-factor:
64 x 8 mm
•
Data bus:
32-bit
Software Driver support
• Windows 95/98/NT/2000 driver
• Novell server driver
• Windows for workgroups driver
• Unixware 7.0 driver
• WinCE driver for x86 platform
• Novell ODI client driver
• Novell ODI driverfor client32
• Linux driver
General
•
Power:
+5V @ 250 mA
•
Temperature:
0° C to 70° C (operating)
-15° C to 80° C (storage)
•
Humidity:
10% to 90% (operating)
Specifications
•
Port:
2
•
•
•
•
•
•
•
•
•
•
CAN controller:
SIA-1000
CAN transceiver:
SIA-1000
Signal aupport:
CAN_H, CAN_L
Memory segment base address:
From C800H to EFOOI
IRQ:
3, 4, 5, 6, 7, 9, 10, 11, 12 or 15
Isolation voltage:
1000 V
DC
Power consumption:
+5V @ 400 mA
typical, 950 mA
Connectors:
Dual DB-9 male connectors
(cable included)
Operating temperature:
32° F to 122° F
(0 to 50°C)
Dimmensions:
3.6" X 3.8" (90mm x 96
mm)
Ordering Information
u
PCM-3660-C1
Jumperless ethernet module
u
PCM-3661-A
10Base-2 transceiver module
Ordering Information
u
PCM-3662A
PC/104-
plus
Ethemnt Module
Ordering Information
u
PCM-3680
Dual-port Isolated CAN Interface Module
Industrial Communications
www.advantech.com
7-33
