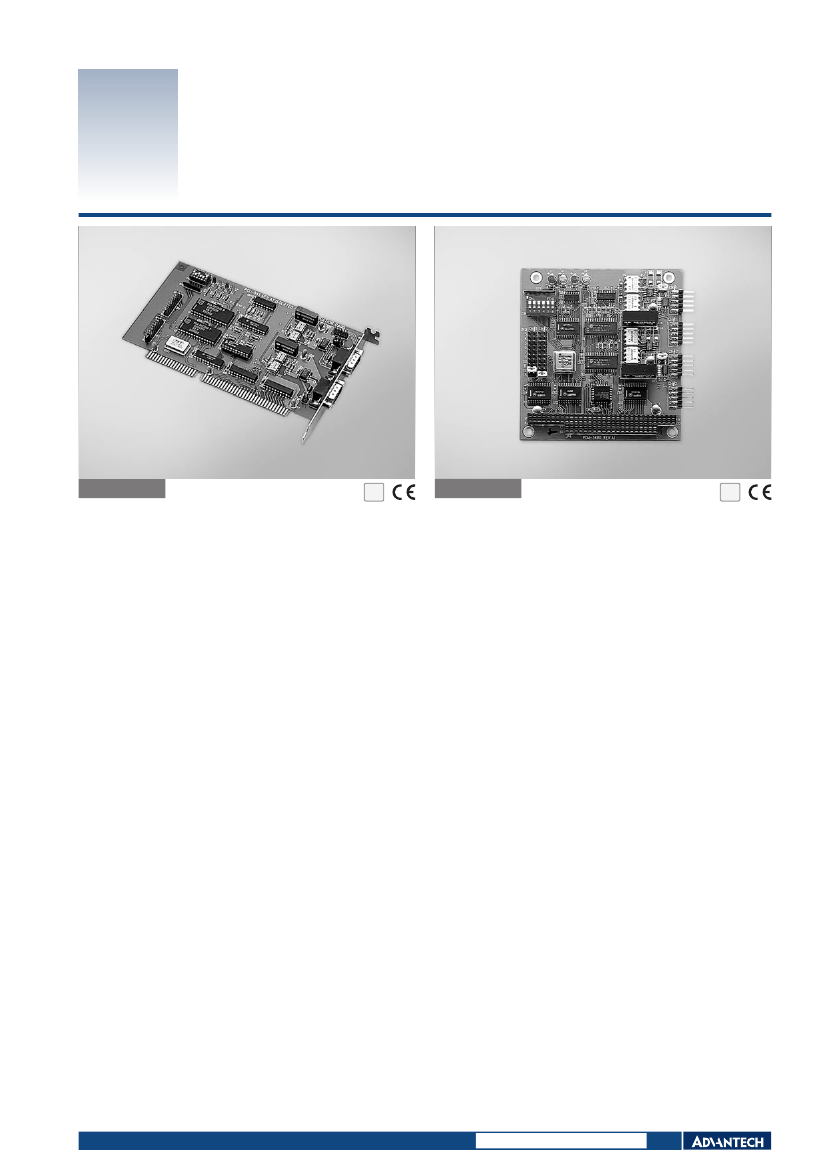

PCL-841
PCM-3680
2-port CAN-bus ISA Card with Isolation
Protection
2-port CAN-bus PC/104 Module with
Isolation Protection
PCL-841
RoHS
2002/95/EC
COMPLIANT
PCM-3680
RoHS
2002/95/EC
COMPLIANT
Features
Operates two separate CAN networks at the same time
High speed transmission up to 500 kbps
16 MHz CAN controller frequency
Optical isolation protection of 1000 V
DC
ensures system reliability
Wide IRQ selection for each port: IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12, 15
LEDs indicate Transmit/Receive status on each port
Direct memory mapping enables very fast access to the CAN controllers
Windows
®
DLL library and examples included
Supports Windows 2000/XP/Vista and Linux
Features
Operates two separate CAN networks at the same time
High speed transmission up to 500 kbps
16 MHz CAN controller frequency
Optical isolation protection of 1000 V
DC
ensures system reliability
Wide IRQ selection for each port: IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12, 15
LEDs indicate Transmit/Receive status on each port
Direct memory mapping enables very fast access to the CAN controllers
Windows DLL library and examples included
Supports Windows 2000/XP/Vista and Linux
Specifications
General
Card Interface
Certifications
Connectors
Dimensions
Ports
Power Consumption
Weight (Gross)
ISA
CE
2 x DB9-M
185 x 100 mm (7.3" x 3.9") (PCL-841)
2
+5 V @ 400 mA typical, 950 mA max.
0.6 kg (1.3 lb)
SJA-1000
82C250
CAN2.0 A/B
3, 4, 5, 6, 7, 9, 10, 11, 12 or 15
From C800H to EF00H
CAN_H, CAN_L
1,000 V
DC
Specifications
General
Card Interface
Certifications
Connectors
Dimensions
Ports
Power Consumption
PC/104
CE
2 x DB9-M w/cable
90 x 96 mm (3.6" x 3.8")
2
+5 V @ 400 mA
Communications
CAN Controller
CAN Transceiver
Protocol
IRQ
Memory Segment
Base Address
Signal Support
Communications
CAN Controller
CAN Transceiver
Protocol
IRQ
Memory Segment
Base Address
Signal Support
SJA-1000
82C250
CAN2.0 A/B
3, 4, 5, 6, 7, 9, 10, 11, 12 or 15
From C800H to EFOOH
CAN_H, CAN_L
Protection
Isolation Protection
Protection
Isolation Protection
1,000 V
DC
Environment
Operating Temperature
0 ~ 50° C (32 ~ 122° F)
Environment
Operating Temperature
0 ~ 65° C (32 ~ 122° F)
Ordering Information
PCL-841
Dual-port Isolated CAN-bus Interface Card
Ordering Information
PCM-3680
Dual-port Isolated CAN Interface Module
Online Download
www.advantech.com/products
