DM74S133 13-Input NAND Gate
August 1986
Revised April 2000
DM74S133
13-Input NAND Gate
General Description
This device contains a single gate which performs the logic
NAND function.
Ordering Code:
Order Number
DM74S133M
DM74S133N
Package Number
M16A
N16E
Package Description
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Connection Diagram
Function Table
Y
=
ABCDEFGHIJKLM
Inputs
A thru M
All Inputs H
One or More
Input L
H
=
HIGH Logic Level
L
=
LOW Logic Level
Output
Y
L
H
© 2000 Fairchild Semiconductor Corporation
DS006462
www.fairchildsemi.com
DM74S133
Absolute Maximum Ratings
(Note 1)
Supply Voltage
Input Voltage
Operating Free Air Temperature Range
Storage Temperature Range
7V
5.5V
0°C to
+70°C
−65°C
to
+150°C
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Recommended Operating Conditions
Symbol
V
CC
V
IH
V
IL
I
OH
I
OL
T
A
Supply Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
HIGH Level Output Current
LOW Level Output Current
Free Air Operating Temperature
0
Parameter
Min
4.75
2
0.8
−1
20
70
Nom
5
Max
5.25
Units
V
V
V
mA
mA
°C
Electrical Characteristics
over recommended operating free air temperature range (unless otherwise noted)
Symbol
V
I
V
OH
V
OL
I
I
I
IH
I
IL
I
OS
I
CCH
I
CCL
Parameter
Input Clamp Voltage
HIGH Level
Output Voltage
LOW Level
Output Voltage
Input Current @ Max Input Voltage
HIGH Level Input Current
LOW Level Input Current
Short Circuit Output Current
Supply Current with Outputs HIGH
Supply Current with Outputs LOW
Conditions
V
CC
=
Min, I
I
= −18
mA
V
CC
=
Min, I
OH
=
Max
V
IL
=
Max
V
CC
=
Min, I
OL
=
Max
V
IH
=
Min
V
CC
=
Max, V
I
=
5.5V
V
CC
=
Max, V
I
=
2.7V
V
CC
=
Max, V
I
=
0.5V
V
CC
=
Max (Note 3)
V
CC
=
Max
V
CC
=
Max
−40
3
5.5
2.7
3.4
0.5
1
50
−2
−100
5
10
Min
Typ
(Note 2)
Max
−1.2
Units
V
V
V
mA
µA
mA
mA
mA
mA
Note 2:
All typicals are at V
CC
=
5V, T
A
=
25°C.
Note 3:
Not more than one output should be shorted at a time, and the duration should not exceed one second.
Switching Characteristics
at V
CC
=
5V and T
A
=
25°C
R
L
=
280Ω
Symbol
Parameter
C
L
=
15 pF
Min
t
PLH
t
PHL
Propagation Delay Time
LOW-to-HIGH Level Output
Propagation Delay Time
HIGH-to-LOW Level Output
2
2
Max
6
7
C
L
=
50 pF
Min
2
3
Max
8
10
ns
ns
Units
www.fairchildsemi.com
2
DM74S133
Physical Dimensions
inches (millimeters) unless otherwise noted
16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150 Narrow
Package Number M16A
3
www.fairchildsemi.com
DM74S133 13-Input NAND Gate

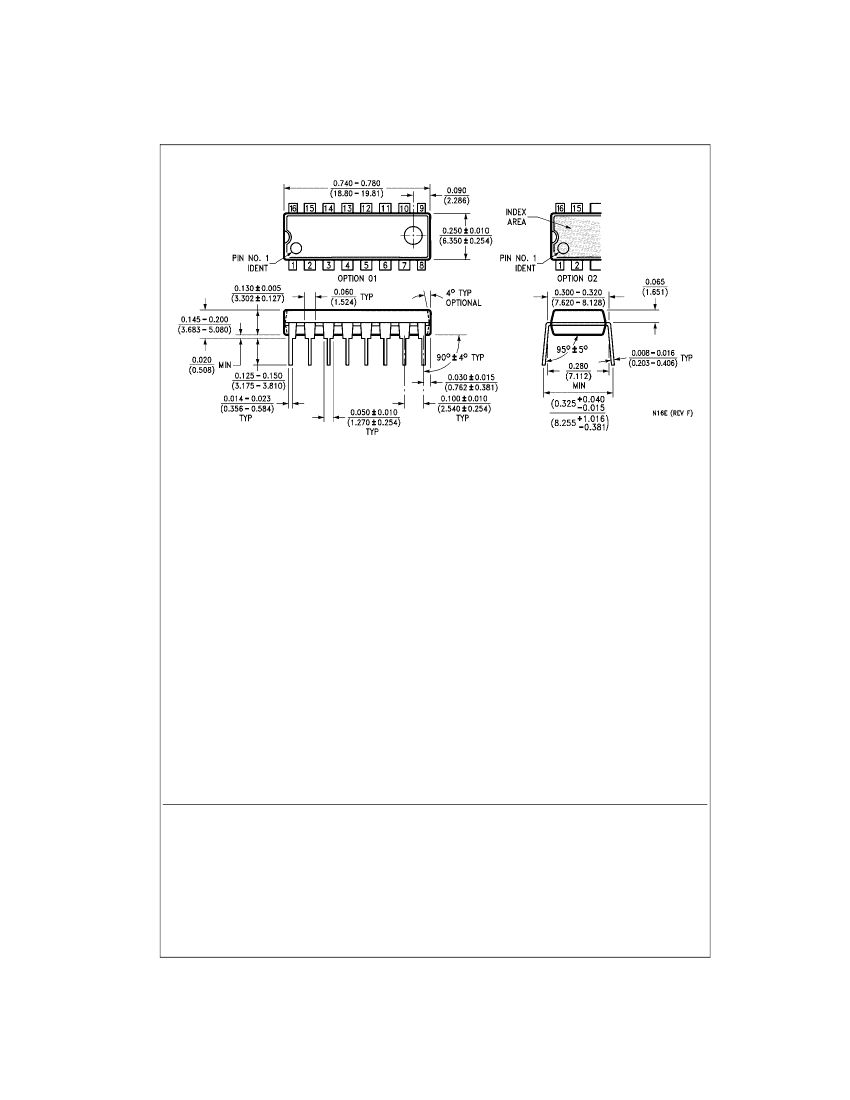

Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)
16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300 Wide
Package Number N16E
Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be rea-
sonably expected to result in a significant injury to the
user.
www.fairchildsemi.com
4
2. A critical component in any component of a life support
device or system whose failure to perform can be rea-
sonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
