PDC-190

NEW

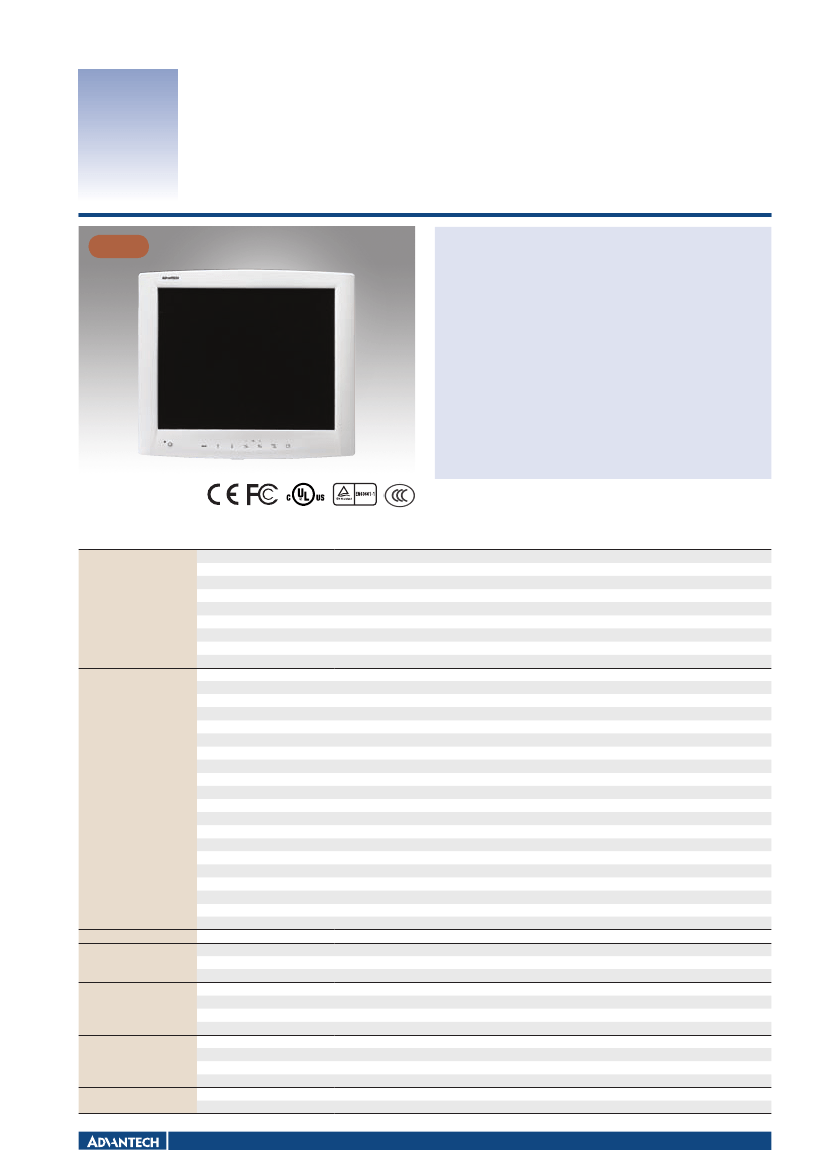

19" Medical Display with IP65 Front Panel

Features



19" MVA type LCD display with wide viewing angle (170°/170°)



HD Ready-Compatible to High Defintion Video (1280 x 720, 50/60Hz

Progressive)



DICOM preset function



IPX1 water resistant enclosure with additional IP65 dust-tight front panel



High brightness and contrast ratio



USB 2.0 hub function



UL60601-1/EN60601-1, CE & FCC Class B certified

Specifications

Display type

Max. Resolution

Max. Colors

Dot size (mm)

Viewing angle

Luminance

Contrast ratio

LCD MTBF

Backlight lifetime

19" MVA type TFT LCD

1280 x 1024

16.7M

0.294 x 0.294

170°/170°

600 cd/m

(DICOM preset at 400 cd/m

)

1000 : 1

50,000 hours

PDC-190S

Display

I/O Ports

Speakers

Power Supply

Optional Touchscreen

Environment

Physical Characteristics

PDC-190

Video Input Port

Composite

BNC x1

S-Video

mini DIN-4 x1

YPbPr/RGB

BNC x3

Ext SYNC

BNC x1

HD/SD-SDI

BNC x1

DVI

DVI-I x1

DVI-D x1

VGA*

Through DVI-I to HD15 adapter

HD-15 x1

Video output port (Loop through)

Composite

BNC x1

S-Video

mini DIN-4 x1

HD/SD-SDI

BNC x1

Audio/ USB hub/Power

Line-in

phone jack x1

USB downstream

type A x2

USB upstream

type B x1

DC power connector

DIN-4 x1

RS-232C communication Port

OSD remote control

DB9 x1

1 W speakers x 2

Universal AC/DC adapter (SINPRO model no. MPU100-105)

Input voltage

100 ~ 240 V

, 47 ~ 63 Hz

Output voltage

+12 V

, 8A max. (100 watts)

Type

Analog Resistive

Light transmission

75%

Controller

USB interface

Durability

30 million touches

Temperature

0 ~ 40 °C (Operating)

Humidity

10 ~ 95% @ 40 °C (non-condensing)

Vibration /Shock Resistance

5 ~ 500 Hz, 1G acceleration/30G half sine, 11 msec duration

Water/Dust Resistance

IPX1 for whole system

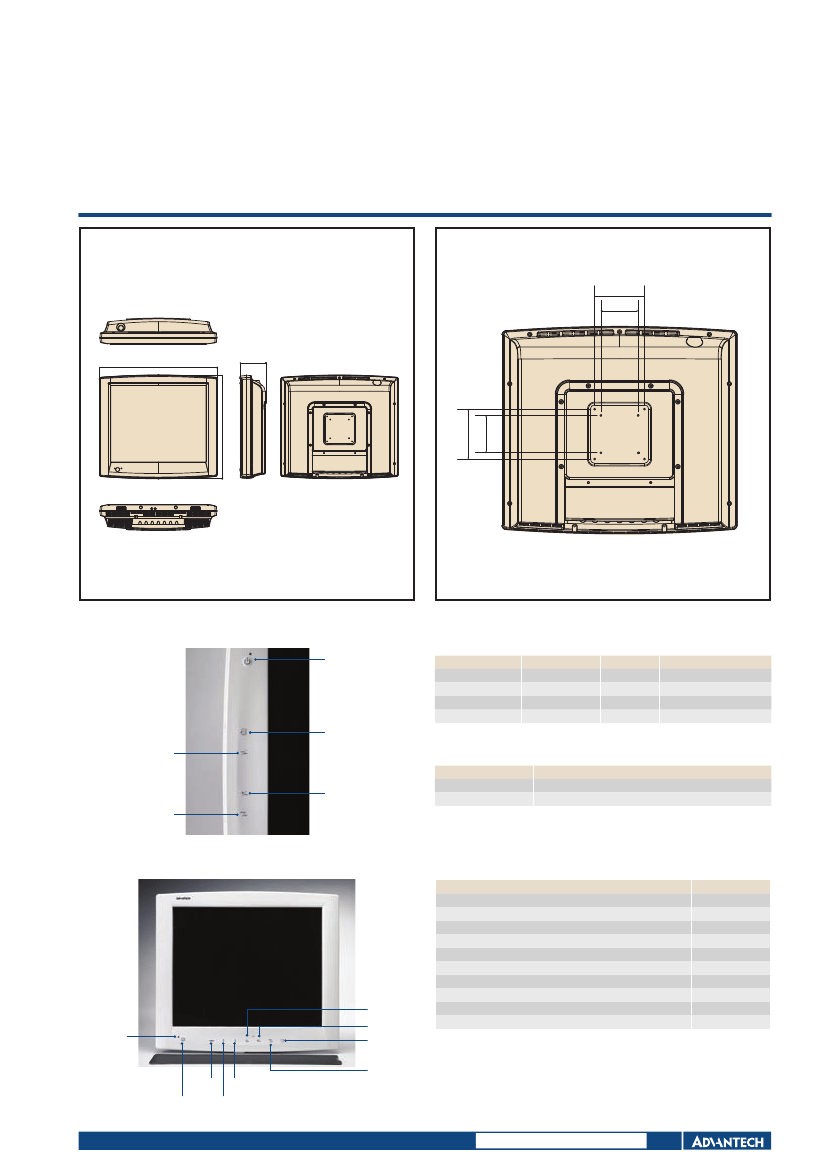

Dimensions (W x H x D)

472 x 416 x 104 mm (18.56" x 16.38" x 4.13")

Weight

6.5 kg (14.32 lb)

All products specifications are subject to change without notice.
