PIN-M106

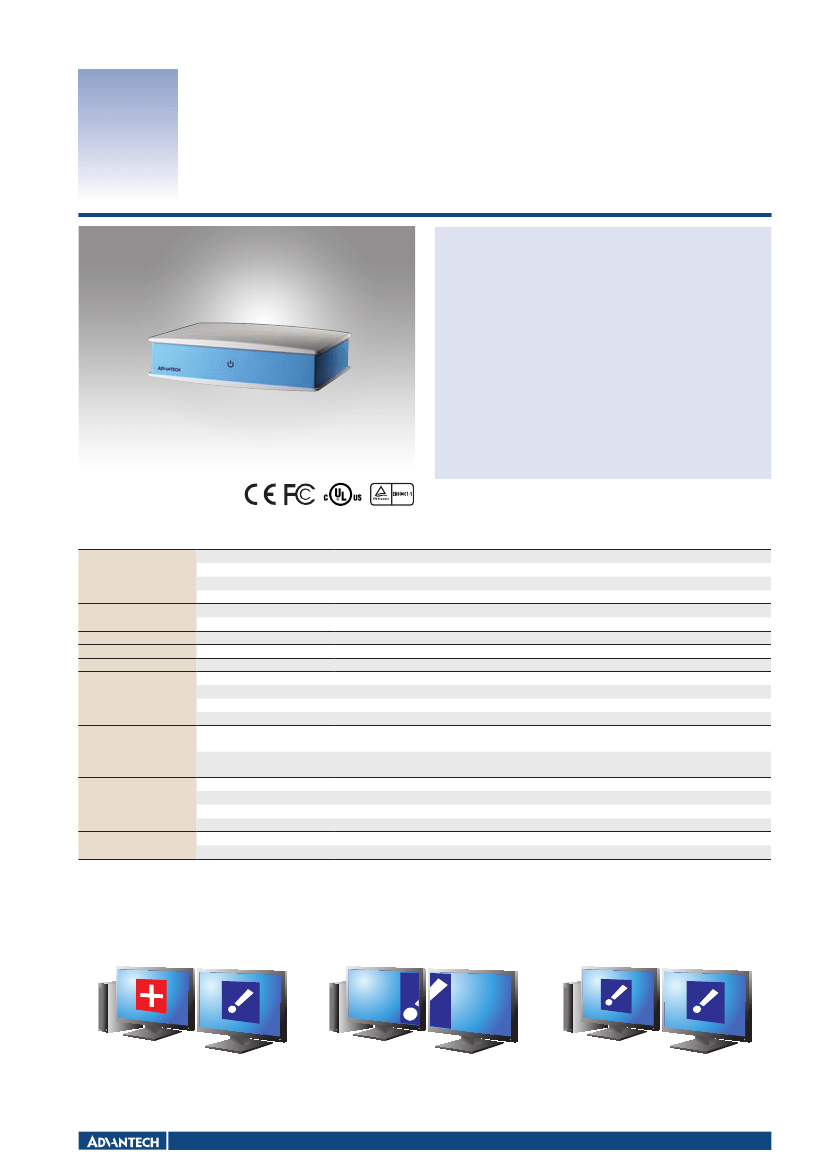

Features
Intel 945GME platform
Compact housing for limited space
Fanless design with low audible noise
Dual display up to a resolution of 1600 x 1200
Medical Mini PC
Isolated design provides unique electric leakage protection for COM ports
and LAN ports
UL60601-1/EN60601-1, CE & FCC Class B certified
IPX1 water resistant enclosure
Built - in bNAND Flash module (optional)
Specifications
Computing System
Chipset
CPU
Front Side Bus
Memory
Mini PCI
Mini PCI-e
HDD
Interface
Controller
VRAM
Max. Resolution (per display)
Video Out
Universal AC/DC adapter
Power Supply
Optional
Environment
Temperature
Humidity
Shock Resistance
Water/dust Resistance
Dimensions (W x H x D)
Weight
Intel 945GME/ICH7M Chipset
Intel Celeron M processor ULV 1.06 GHz
533 MHz FSB
2 x SODIMM sockets, Supports up to 4 GB DDR2 533 DRAM
1 x Mini PCI slot, supports type IIIA Mini PCI
1 x Mini PCI-e slot
1 x 2.5" SATA
3 x Gigabit LAN (RJ-45)
2 x RS-232; 4 x USB ports; 1 x DVI-I port, 1 x DVI-D port; MIC-in, Line-out jack
Intel 945GME integrated, GMA 950
Dynamic Video Memory Technology (DVMT) 3.0 supports up to 224 MB of video memory
1600 x 1200 at 60 Hz
Supports 24-bit digital output (DVI port x 2)
Sinpro Model no. MPU100-107
Input: +18 V
DC
, 5.55 A max (100 Watts)
XPiQ Model no. PCM80PS18
Input: +18 V
DC
, 4.44 A max (80 Watts)
0 ~ 40° C (Operating)
10 ~ 95% @ 40° C (non-condensing)
20 G peak acceleration (11ms duration)
IPX1 for whole system
261 x 185 x 67 mm (10.27" x 7.26" x 2.63")
4.0 kg (8.82 lb)
Expansion Slot
Storage
Ethernet
I/O Ports
Integrated Graphics Chip
Physical Characteristics
Dual Display Support
Independent Model
Extended Model
Mirror Model
Maximum Resolution: Up to 1600 x 1200
58
All products specifications are subject to change without notice.
PIN-M106

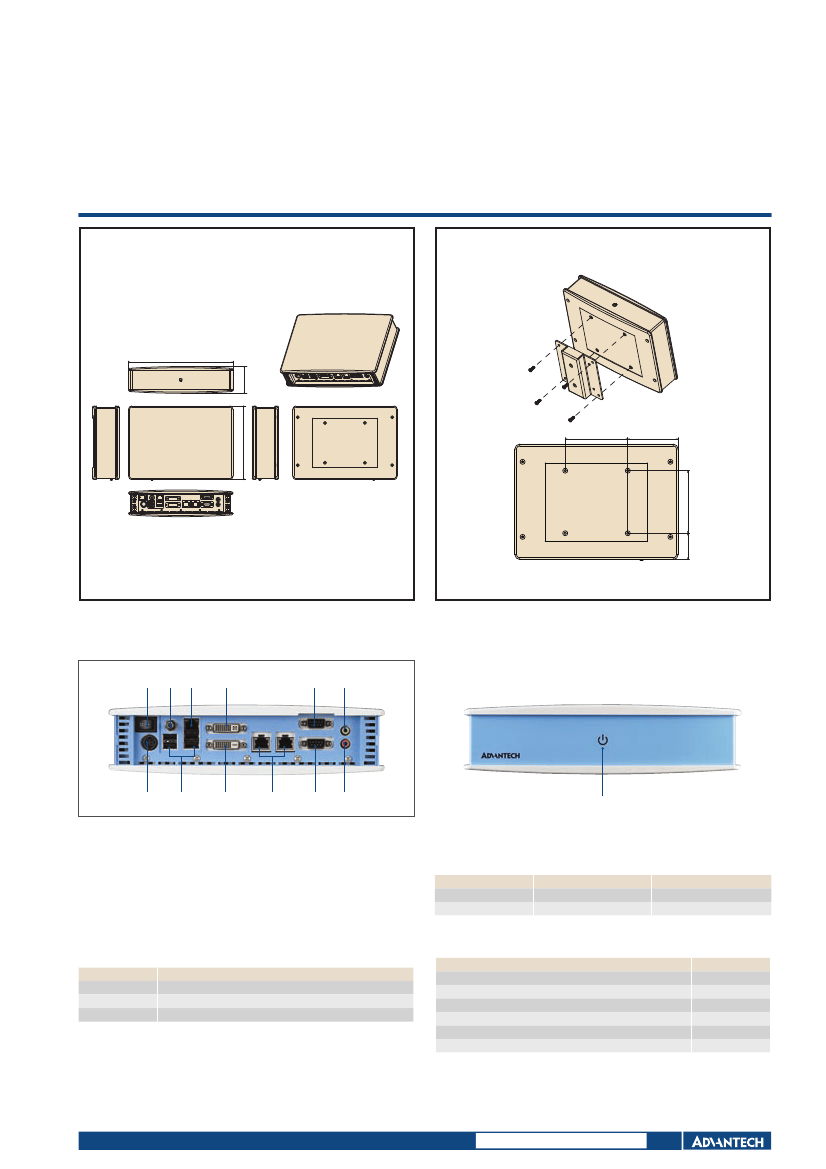

Dimensions
Unit: mm
Mounting
Unit: mm
261
67
185
100
80.5
VESA: 100 x 100 mm
I/O Drawing
1
3
5
6
8
11
Function keys
2
4
7
9
10
12
Power On Indicator
1.
2.
3.
4.
5.
6.
On/Off key
DC jack
Ground pin
USB 2.0 Ports
RJ45 Gigabit LAN port
DVI-I port
7. DVI-D port
8. Isolated RS-232 COM port (COM2)
9. Isolated RJ-45 Gigabit LAN Port
10. Isolated RS-232 COM port (COM1)
11. Line Out
12. Microphone-in
Ordering Information
Part Number
PIN-M106-100-AE
PIN-M106-14I-AE
HDD 24 x 7
-
40 G SATA
RAM
1 GB
1 GB
Accessories
Part Number
Description
1702002600
Power Cable (USA) 1.83M
1702002605
Power Cable (Europe) 1.8M
*
802.11 b/g wireless LAN module
* This accessory goes with the T Part Number. Please contact Advantech sales for more
details.
Packing List
Description
AC 100W SPS MPU100-107 W/PFC 100-240
Startup manual
Advantech 2-year warranty card
CD-ROM for Driver & Utility
China RoHs report & Manual
HDD Mounting Accessories
Quantity
1
1
1
1
1
1
42
100
Online Download
www.advantech.com/products
