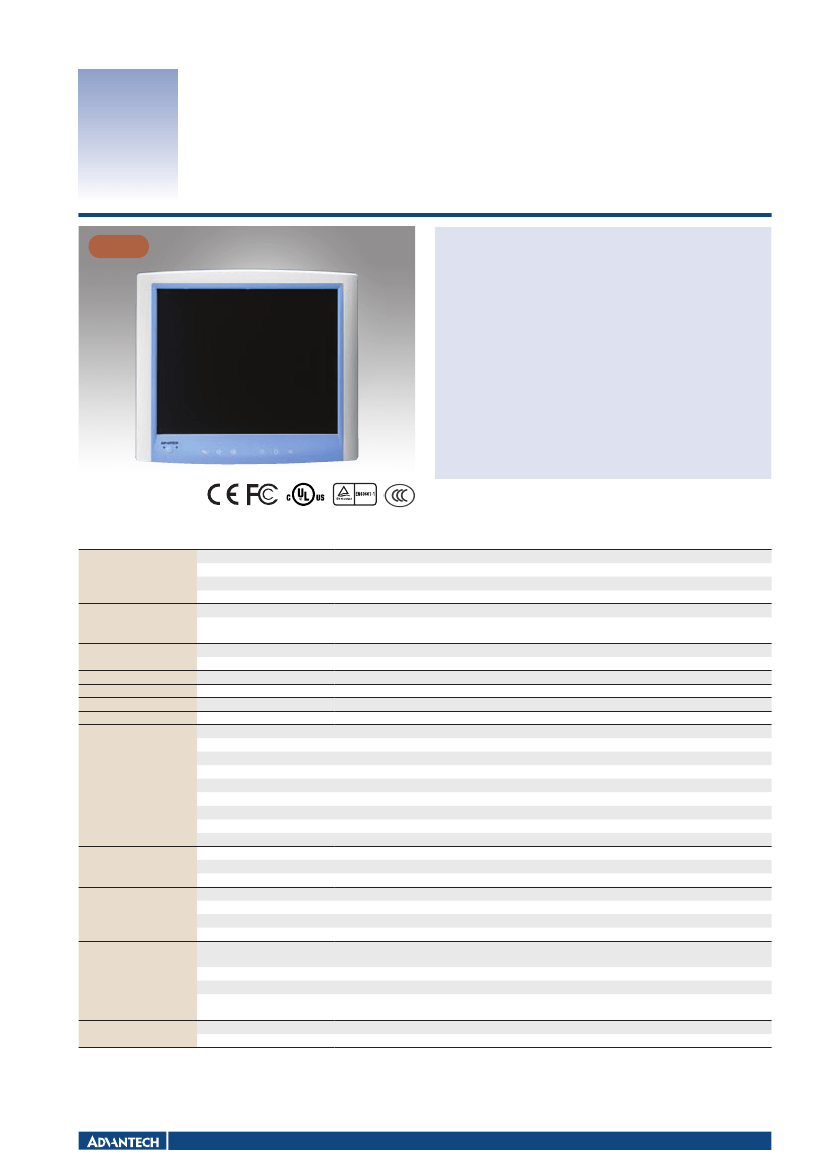

POC-S196

NEW

19" Slim Point-of-Care Terminal

with Intel

Core™ Duo Processor

Features



19" LCD display with 16.7 M colors



Intel

Core™ Duo (low-power) processor



Fanless design with low audible noise



Isolated design provides unique electric leakage protection for COM ports

and LAN ports



IP54/IPX1 enclosure with additional IP65 dust-tight front panel



UL60601-1/EN60601-1, CE & FCC Class B certified



Optional 802.11a/b/g/n WLAN module and touchscreen

Specifications

Intel 945GME GMCH/ICH7M

Intel Core Duo processor 1.66 GHz/1.2 GHz

Computing System

667 MHz/533 MHz

Supports up to 4 GB DDR2 533/667 Mhz SDRAM*

Intel 945GME integrated

Graphics

Dynamic Video Memory Technology (DVMT) 3.0 to dynamically allocate up to 224 MB of system memory for

VRAM

graphics usage.

Mini PCI

1 x Mini PCI slot, supports type IIIA Mini PCI

Expansion Slot

Mini PCI-E

1 x Mini PCI-E slot

Storage

HDD

1 x 2.5" SATA device

Ethernet

Interface

2 x Gigabit Ethernet interfaces (RJ-45)

I/O Ports

1 x RS-232/422/485 (by jumper option, isolated) serial port; 4 x USB ports; 1 x DVI-I port

Speakers

2 x 1 W speakers; 1 x MIC-in and 1 x Line/Headphone Out

Display Type

19" TFT LCD.

Max. Resolution

1280 x 1024

Max. Colors

16.7 M (RGB 8-bit data)

Dot Size (mm)

0.294 x 0.294

Display

Viewing angle

178/178°

Luminance

300 cd/m

Contrast Ratio

1300 : 1

LCD MTBF

50,000 hours

Backlight Lifetime

50,000 hours

Universal AC/DC adapter (Sinpro Model no. MPU100-107)

Power Supply

Input Voltage

100 ~ 240 V

, 47 ~ 63 Hz, 1.25 ~ 0.5 A

Output Voltage

+18 V

, 5.55 A max. (100 watts)

Type

Analog Resistive

Light Transmission

75%

Optional Touchscreen

Controller

RS-232 interface (use COM3)

Durability

30 million touches

0 ~ 40° C (Operating) for POC-S196-166 series

Temperature

0 ~ 35° C (Operating) for POC-S196-120 series

Humidity

10 ~ 95% @ 40° C (non-condensing)

Environment

Shock Resistance

20 G peak acceleration (11 ms duration)

IPX1 water resistant rating for POC-S196 with 1.66G CPU

Water/Dust Resistance

IP54 enclosure for POC-S196 with 1.2G CPU

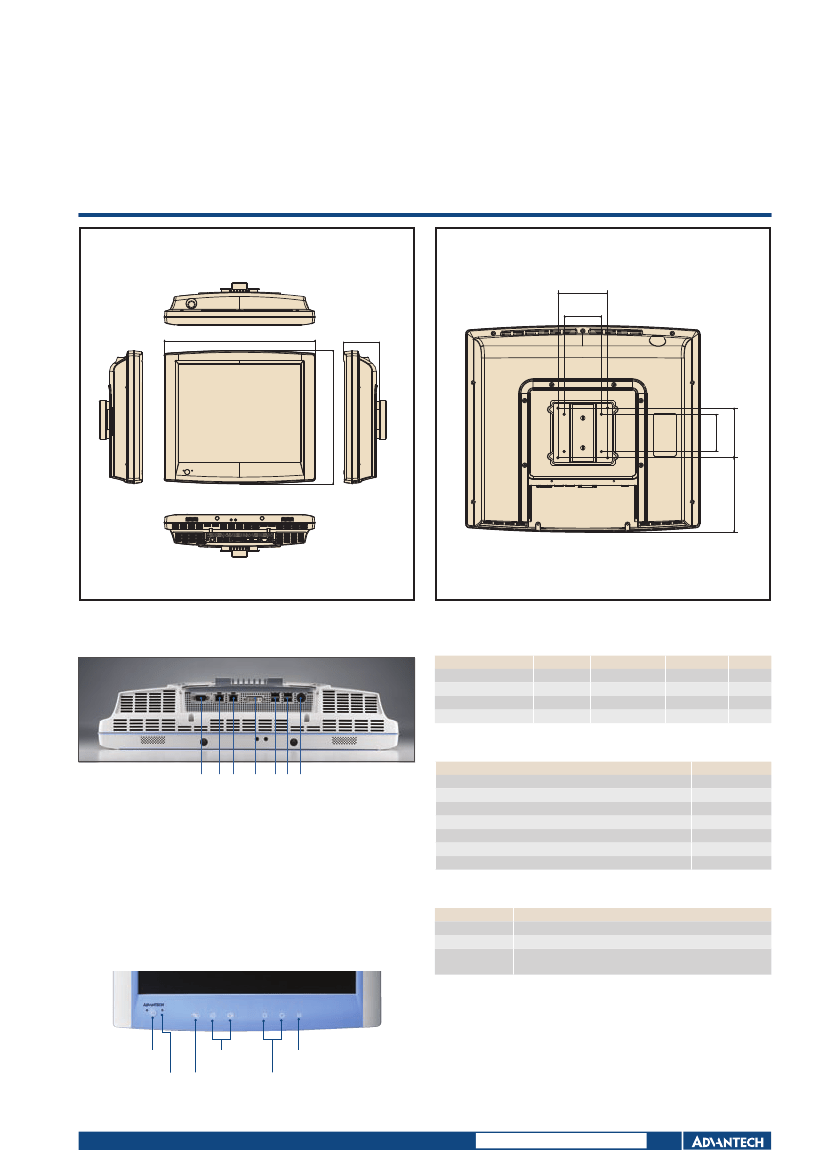

Dimensions (W x H x D)

472 x 416 x 111 mm (18.58" x 16.38" x 4.37")

Physical Characteristics

Weight

10 kg (22.05 lb)

* For memory-mapped I/O (MMIO) space reserved, 32-bit operating systems limit the total available memory to 3.12 GB to avoid potential driver compatibility issues.

Chipset

CPU

Front Side Bus

Memory

Controller

All products specifications are subject to change without notice.
