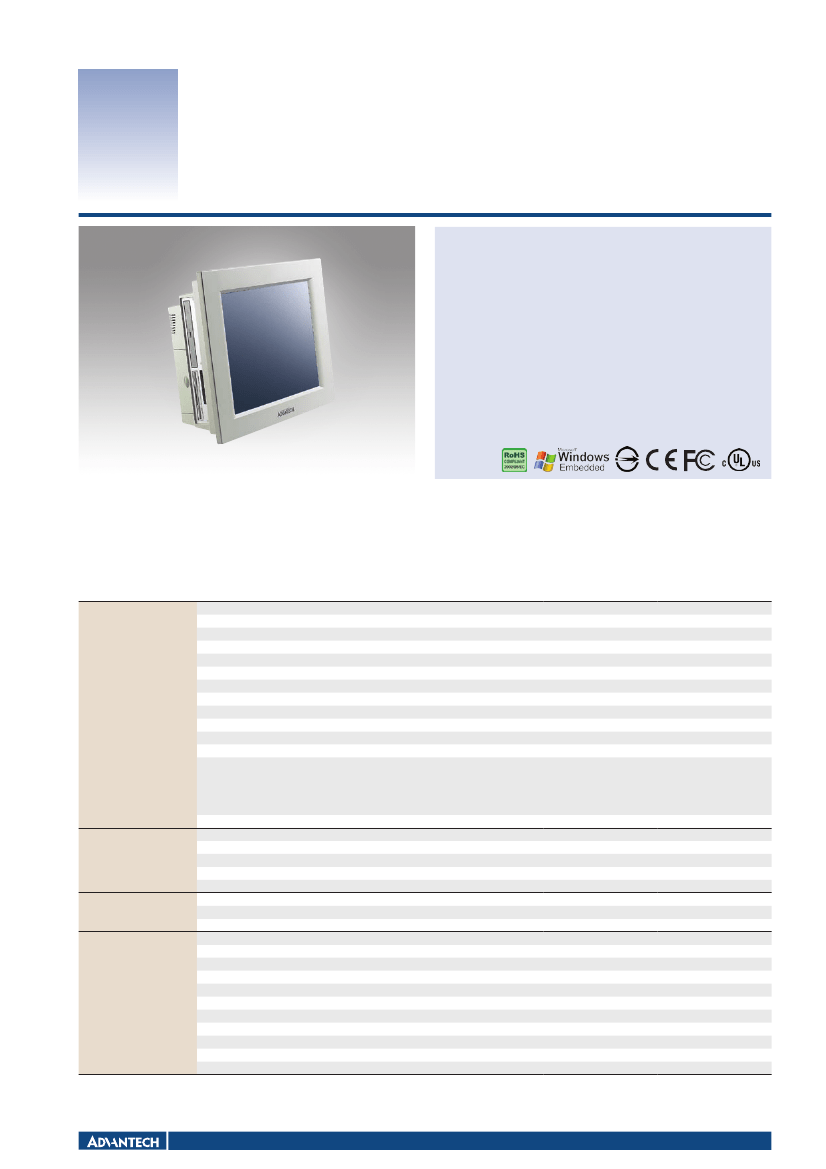

PPC-154T
Features
15" TFT XGA LCD
15" Panel PC Panel PC with
Intel
®
Pentium
®
4 Processor
Intel
®
Pentium
®
4 processor up to 3.06 GHz
System memory up to 2 GB DDR SDRAM
Built-in FDD/CD-ROM drive
Built-in PCMCIA Type II x 2
10/100 Mbps Ethernet (Gigabit optional)
Optional 6-in-1 card reader (MS, SD, SM, MC and CF type I/II sockets)
Resistive, capacitive, SAW and infrared touchscreen are available
Introduction
The PPC-154T is an Intel Pentium 4 based Panel PC with 15" color TFT LCD (resolution up to 1024 x 768). It features multimedia devices, various connectors, and can be installed
in virtually any application. In addition, its user-friendly interface makes it a great host for information appliances.
Specifications
CPU
Disk Drive Housing
Dimensions (W x H x D)
Weight
Front Panel Protection
HDD
CD-ROM Drive
DVD+/RW Drive
Combo Drive
Memory
FDD
Network (LAN)
I/O Ports
Bus Expansion
Operating Temperature
Relative Humidity
Shock
EMC
Safety
Output Rating
Input Voltage
Output Voltage
Display Type
Max. Resolution
Max. Colors or Grayscales
Pixel Pitch (mm)
Luminance (cd/m2)
Contrast Ratio
Viewing Angle
Operating Temperature
VR Controls
Simultaneous Mode
LCD MTBF
Supports Socket 478 based Pentium 4 CPU up to 3.06 GHz
Room for 1 x 2.5" HDD
420 x 323.3 x 130.5 mm (16.54" x 12.72" x 5.12")
7 kg (15.4 lb)
IP65/NEMA 4 compliant (not for SAW model)
IDE HDD interface (2.5" HDD bay), SATA interface is available, but converter board needed.
Compact 24X or above
Optional 8X or above
Optional DVD/CD-RW 8D/24W/24E/24R or above
Supports up to 2 GB DDR SDRAM (184-pin)
Supports 720 KB / 1.44 MB FDD
10/100 Mbps Ethernet interface (Gigabit optional)
- 2 x serial ports: 1 x RS-232, 1 x RS-232/422/485
- 2 x IEEE 1394 ports
- 1 x parallel port, 4 x USB 2.0 ports
- 6-in-1 card reader: supports CompactFlash,
- 2 x PCMCIA Type II
Micro Drive, Smart Media, Secure Digital,
- 1 x PS/2 mouse and keyboard interface
Memory Stick & Multimedia Card
- Mic-in, Line-in, Line-out
- S-Video port
1 x PCI expansion slot
0 ~ 45° C (32 ~ 113° F)
10 ~ 95% @ 40° C, non-condensing
10 G peak acceleration (11 msec. duration)
BSMI, VCCI, CE, FCC Class B, CCC
CB, CE, UL
180 W (max.)
100~240 V
AC
@ 50 ~ 60 Hz
+3.3 V @ 16.8 A, +5 V @ 12 A, +12 V @ 10 A, -12 V @ 0.8 A, +5 VSB @ 2 A
15" Color TFT LCD
1024 x 768
262 K
0.297 x 0.297
350
400 : 1
60° (left), 60° (right), 40° (up), 60° (down)
0 ~ 50° C (32 ~ 122° F)
Brightness
Yes
50,000 hrs
Processor System
Environmental Specifications
Power Supply
LCD Display
Panel PCs
All product specifications are subject to change without notice
Last updated : 22-April-2009

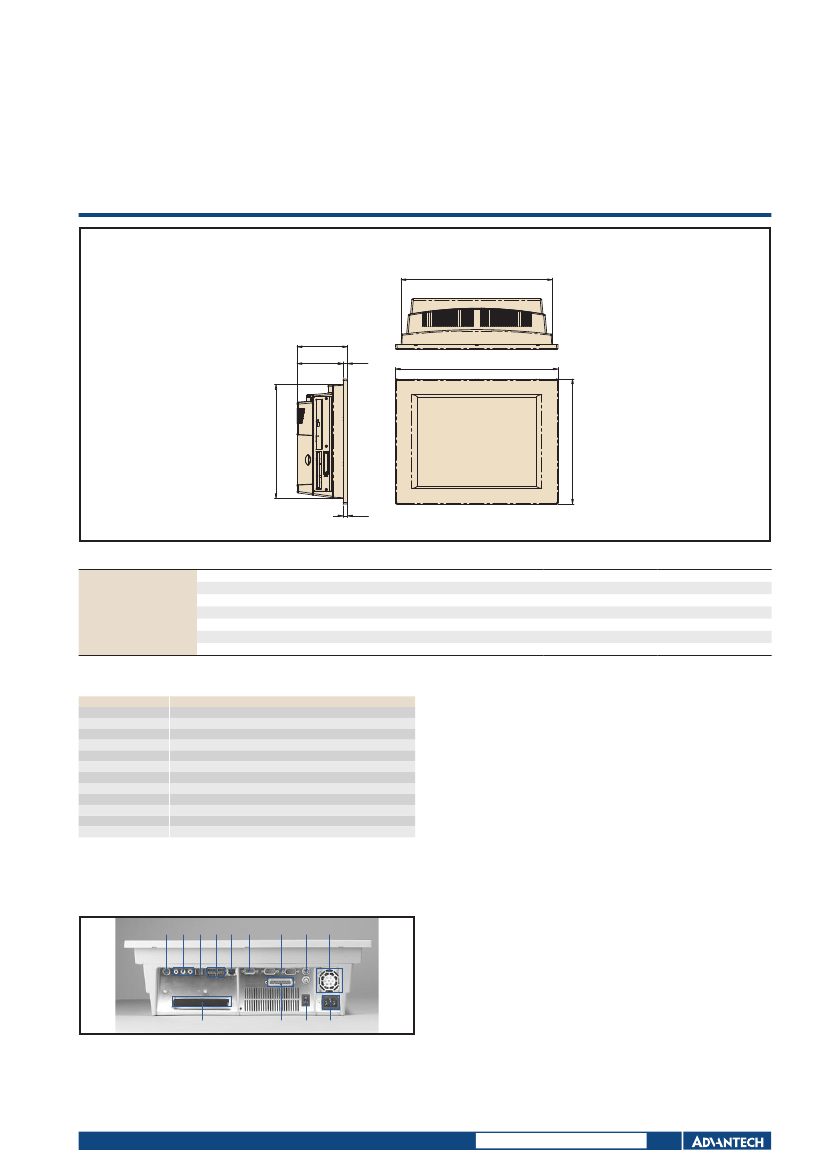

PPC-154T
Dimensions
Unit: mm
391
130.5
118.5
12
420
294.5
2.4
Touchscreen (Optional)
Types
Resolution
Light Transmission
Controller
Power Consumption
Software Driver
Durability (Touches)
Analog Resistive
Capacitive
Continuous
1024 x 1024
80%
91.5%
USB Interface
USB Interface
+5 V @ 200 mA
+5 V @ 100 mA
Supports both DOS and Windows
35 million
225 million
Surface Acoustic Wave
4096 x 4096
91%
USB Interface
+5 V @ 150 mA
50 million
323.3
Infrared
4096 x 4096
91%
USB Interface
+5 V @ 150 mA
100,000 hrs
Ordering Information
Part No.
Description
PPC-154T-BAREE
Panel PC with 15" color TFT LCD display (resolution 1024 x 768)
PPC-154T-BARE-TE
PPC-154T with resistive touchscreen
PPC-154T-BARE-CE
PPC-154T with capacitive touchscreen
PPC-154T-BARE-SE
PPC-154T with SAW touchscreen
PPC-120 STAND
Stand kit for PPC-154/153/150 and PPC-123/120 series
PPC-154 SWINARM
Swingarm kit for PPC-154 series
PPC-120 WL-MT
Wall mount kit for PPC-154/153/150 and PPC-123/120 series
PPC-ARM-A03
VESA standard ARM for PPC-123/153/154 series series
1702002600
Power cable UL/CSA(USA) 180D 125V10A 1.83M
9898007100E
2.5" PATA to SATA HDD Converter Board
PPC-FP-A01E
USB Fingerprint Accessory Kit
1702002605
POWER CABLE 90D 220V EUROPEAN 250V/6A 1.8M
* Intel Pentium 4 CPU, DDR SDRAM and 2.5" HDD are available as optional items.
* FDD, CD-ROM and PCMCIA are removable as OEM items
* Infrared touchscreen with sunlight readable panel can be ordered via OEM process; both items
can be ordered separately
Feature Details
Protection
To meet the requirements of a public environment, the front panel of PPC-154T complies
with the IP65/NEMA 4 protection standards. Furthermore, the watchdog timer and
power management features make the system secure and stable. The onboard hardware
monitoring feature provides automatic protection that prevents the CPU from becoming
overheated.
Networking
Two serial ports and a 10/100 Mbps Ethernet port (Gigabit optional) give the
PPC-154T advanced networking capabilities, and provide a great solution for versatile
applications.
Expansion
To extend functionality, the PPC-154T is designed with one expansion slot for PCI
cards, four USB 2.0 (Univeral Serial Bus) ports, one S-Video port, a 6-in-1 cardreader
interface and one PCMCIA card bus (Type II x 2). With these expansion capabilities, the
PPC-154T not only functions as an HMI, but also as a computing center to build your
applications on.
Fully Integrated I/O
A
B
C
D
E
F
G
H
I
Easy Maintenance
Maintaining and replacing the LCD and touchscreen are made easier through the PPC-
154T's modular design. In order to replace a defective LCD or touchscreen, one merely
needs to remove the front cover and LCD bracket instead of disassembling the whole
system.
M
L
K
J
A. S-Video
B. Line-in/Line-out/Mic-in
C. IEEE 1394 x 2
D. USB 2.0 x 4
E. 10/100 Mbps Ethernet (Gigabit Optional)
F. VGA port
G. Com port x 2
H. PS/2 mouse & keyboard
I. ATX Power Supply
J. AC inlet
K. Power Switch
L. Parallel port
M. PCI slot
Touchscreen Options
Customers can choose from three optional types of standardized touchscreens: resistive,
capacitive and SAW (Surface Acoustic Wave). These options make the PPC-154T a more
user-friendly interface for different environments.
Online Download
www.advantech.com/products
