PPC-154T-EPCE
Features
15" TFT XGA LCD
15" Panel PC Panel PC with
Intel
®
Pentium
®
4 Processor
Intel
®
Pentium
®
4 CPU up to 3.06 GHz
System memory up to 2 GB DDR SDRAM
10/100Base-T Ethernet (Gigabit optional)
RoHS
COMPLIANT
2002/95/EC
Introduction
The PPC-154T is an Intel Pentium 4 based Panel PC with 15" color TFT LCD (resolution up to 1024 x 768). It features multimedia devices, various connectors, and can be installed
in virtually any application. In addition, its user-friendly interface makes it a great host for information appliances.
Specifications
CPU
Disk Drive Housing
Dimensions (W x H x D)
Weight
Front Panel Protection
Memory
Network (LAN)
I/O Ports
Bus Expansion
Operating Temperature
Relative Humidity
Shock
EMC
Safety
Output Rating
Input Voltage
Output Voltage
Display Type
Max. Resolution
Max. Colors or Grayscales
Pixel Pitch (mm)
Luminance (cd/m
2
)
Contrast Ratio 400 : 1
Viewing Angle
Operating Temperature
Lamp Life
Types
Resolution
Light Transmission
Controller
Power Consumption
Software Driver
Durability (Touches)
Supports Socket 478 based Pentium 4 CPU up to 3.06 GHz
Room for 1 x 2.5" HDD
420 x 323.3 x 130.5 mm (16.54" x 12.72" x 5.12")
6.5 kg (14.32 lbs)
IP65/NEMA 4 compliant (not for SAW model)
Supports up to 2 GB DDR SDRAM (184-pin)
10/100Base-T Ethernet interface (Gigabit optional)
- 2 x serial ports
- 4 x USB 2.0 ports
- 1 x PS/2 mouse and keyboard interface
- Mic-in, Line-in, Line-out
1 x PCS Slot
0 ~ 45° C (32 ~ 113° F)
10 ~ 95% @ 40° C, non-condensing
10 G peak acceleration (11 msec. duration)
BSMI, VCCI, CE, FCC Class B, CCC
CB, CE, UL
180 W (max.)
100 ~ 240 V
AC
@ 50 ~ 60 Hz
+3.3 V @ 16.8 A, +5 V @ 12 A, +12 V @ 10 A, -12 V @ 0.8 A, +5 VSB @ 2 A
15" Color TFT LCD
1024 x 768
262 K
0.297 x 0.297
250
500
70° (left), 65° (right), 75° (up), 75° (down)
0 ~ 50° C (32 ~ 122° F)
60,000 hrs
Analog Resistive (Default) Capacitive (Optional)
Surface Acoustic Wave (Optional)
Continuous
1024 x 1024
4096 x 4096
80%
91.5%
91%
USB Interface
USB Interface
USB Interface
+5 V @ 200 mA
+5 V @ 100 mA
+5 V @ 150 mA
Supports both DOS and Windows
35 million
225 million
50 million
Processor System
Environmental
Specifications
Power Supply
LCD Display
Touchscreen (Optional)
Infrared (Optional)
4096 x 4096
91%
USB Interface
+5 V @ 150 mA
100,000 hrs
Panel PCs
PPC-154T-EPCE

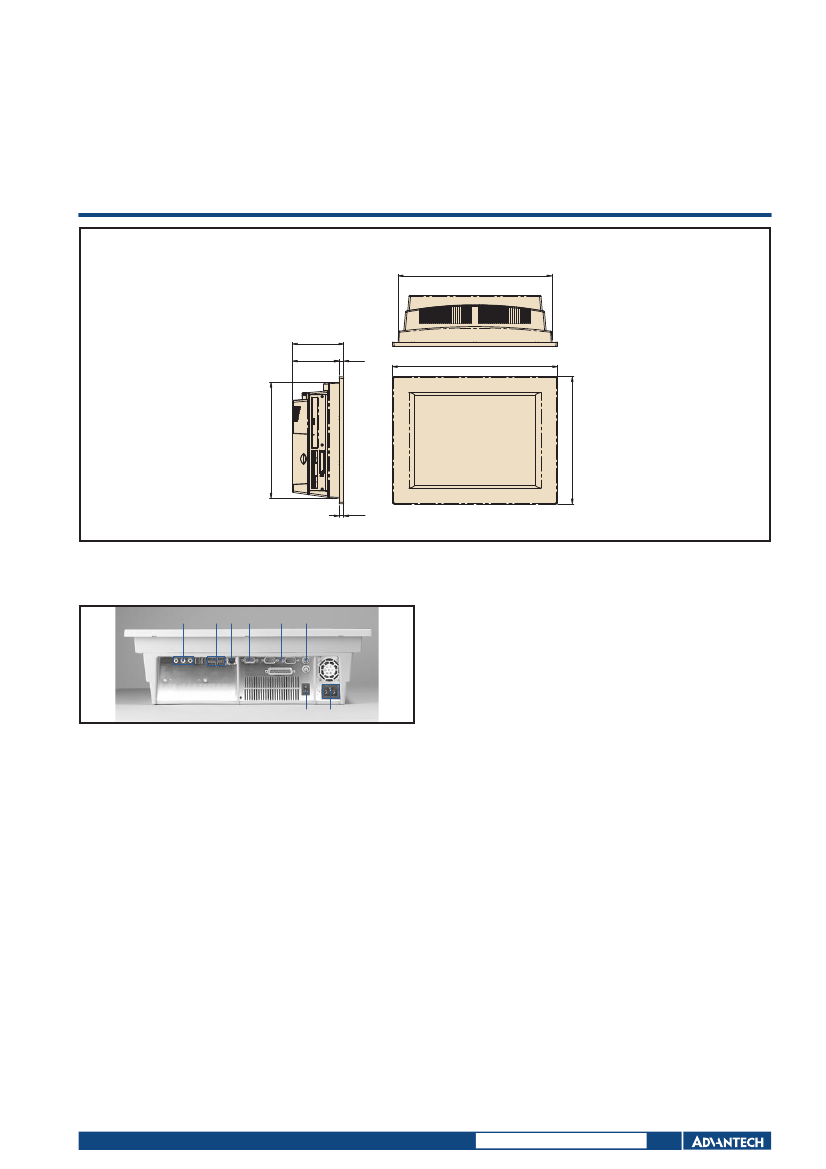

Dimensions
391
Unit: mm (inches)
130.5
118.5
12
420
294.5
2.4
Fully Integrated I/O
A
B
C
D
E
F
Feature Details
Protection
To meet the requirements of a public environment, the front panel of PPC-154T complies
with the IP65/NEMA 4 protection standards. Furthermore, the watchdog timer and
power management features make the system secure and stable. The onboard hardware
monitoring feature provides automatic protection that prevents the CPU from becoming
overheated.
G
H
Networking
Two serial ports and a 10/100Base-T Ethernet port (Gigabit optional) give the
PPC-154T advanced networking capabilities, and provide a great solution for versatile
applications.
A: Line-in/Line-out/Mic-in
B: USB 2.0 x 4
C: 10/100Base-T Ethernet
D: VGA port
E: Com port x 2
F: PS/2 mouse & keyboard
G: AC inlet
H: Power Switch
Easy Maintenance
Maintaining and replacing the LCD and touchscreen are made easier through the PPC-
154T's modular design. In order to replace a defective LCD or touchscreen, one merely
needs to remove the front cover and LCD bracket instead of disassembling the whole
system.
Touchscreen Options
Customers can choose from three optional types of touchscreens: Resistive change to
Infrared capacitive and SAW (Surface Acoustic Wave). These options make the PPC-154T
a more user-friendly interface for different environments.
Online Download
www.advantech.com/products
323.3
