DV4023BN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV4023BN

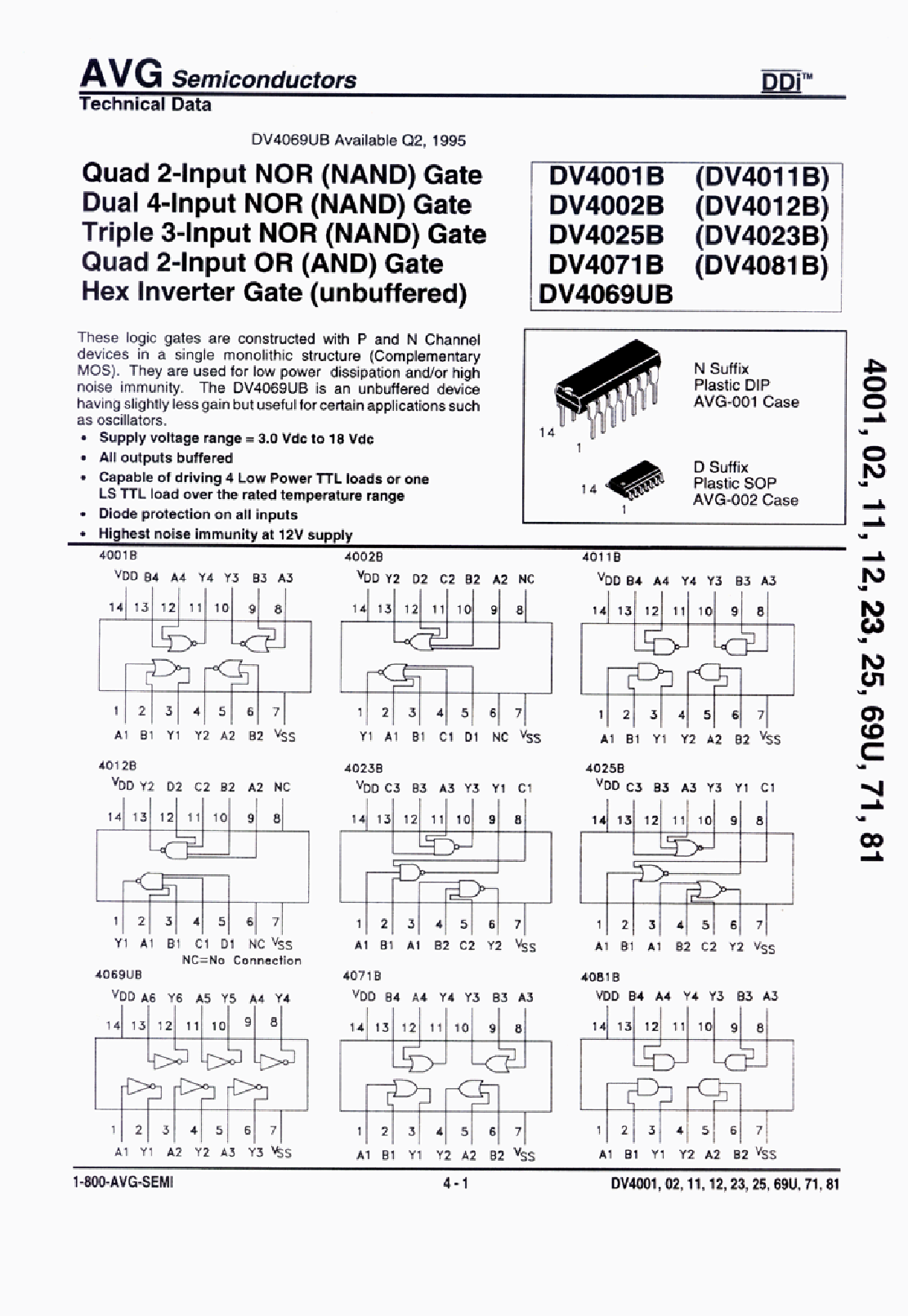

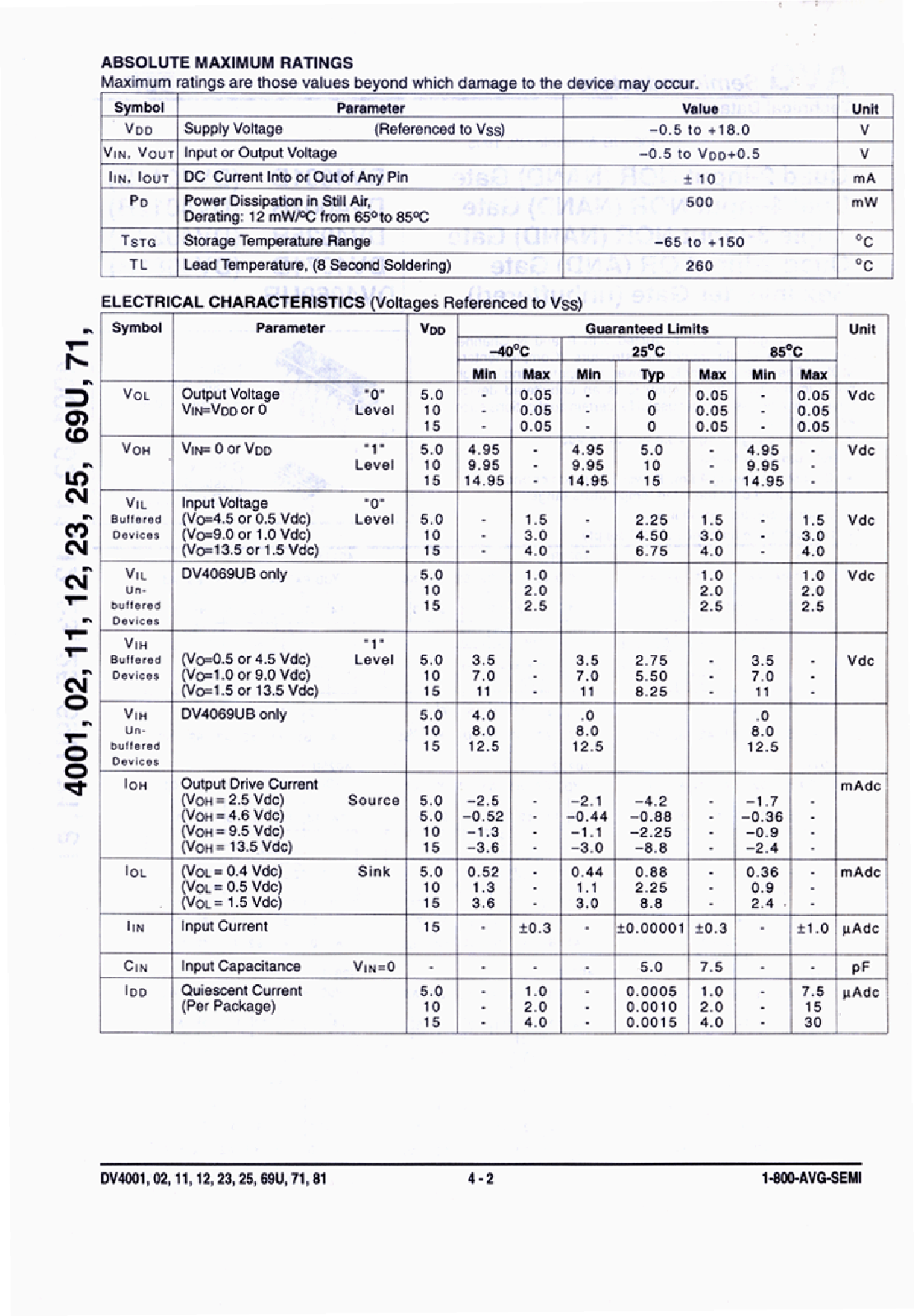

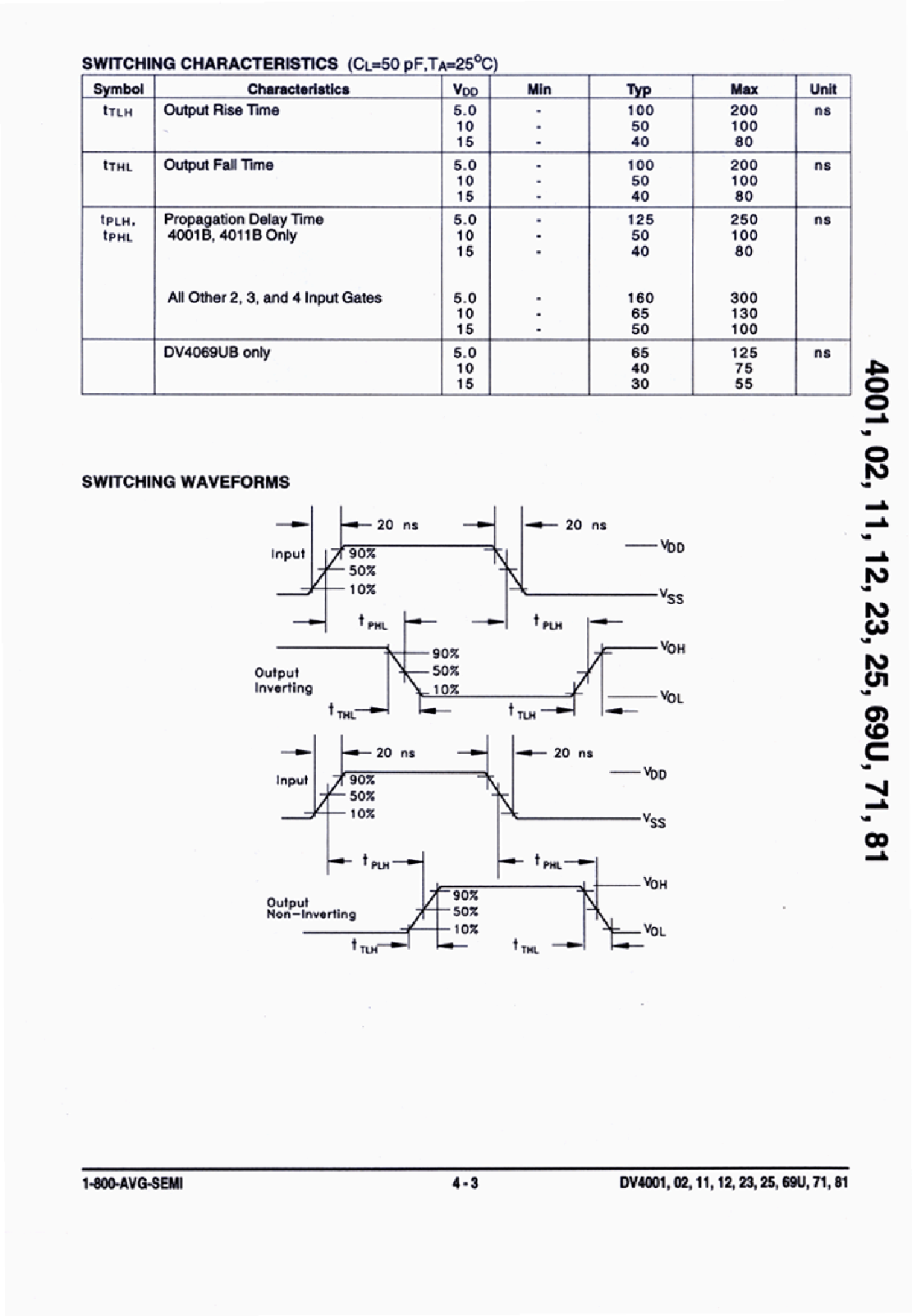

DV4023BN: DescriptionNAND Gate, 4000/14000/40000 Series, 3-Func, 3-Input, CMOS, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size529KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV4023BN Overview

NAND Gate, 4000/14000/40000 Series, 3-Func, 3-Input, CMOS, PDIP14, PLASTIC, DIP-14

DV4023BN Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	DIP, DIP14(UNSPEC)
Contacts	14
Reach Compliance Code	unknown
series	4000/14000/40000
JESD-30 code	R-PDIP-T14
length	18.86 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	8.8e-7 A
Number of functions	3
Number of entries	3
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14(UNSPEC)
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Prop。Delay @ Nom-Sup	300 ns
propagation delay (tpd)	300 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	4.69 mm
Maximum supply voltage (Vsup)	18 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

DV4023BN Related Products

	DV4023BN	DV4012BN	DV4081BN	DV4025BN	DV4071BN	AA0603DR-139K76	DV4011BN	DV4002BN
Description	NAND Gate, 4000/14000/40000 Series, 3-Func, 3-Input, CMOS, PDIP14, PLASTIC, DIP-14	NAND Gate, 4000/14000/40000 Series, 2-Func, 4-Input, CMOS, PDIP14, PLASTIC, DIP-14	AND Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14	NOR Gate, 4000/14000/40000 Series, 3-Func, 3-Input, CMOS, PDIP14, PLASTIC, DIP-14	OR Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14	ANTI-SULFURATED CHIP RESISTORS AUTOMOTIVE GRADE	NAND Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14	NOR Gate, 4000/14000/40000 Series, 2-Func, 4-Input, CMOS, PDIP14, PLASTIC, DIP-14
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	-	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP	DIP	DIP	DIP	DIP	-	DIP	DIP
package instruction	DIP, DIP14(UNSPEC)	DIP, DIP14(UNSPEC)	PLASTIC, DIP-14	PLASTIC, DIP-14	DIP, DIP14(UNSPEC)	-	PLASTIC, DIP-14	DIP, DIP14(UNSPEC)
Contacts	14	14	14	14	14	-	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	-	unknown	unknown
series	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	-	-	4000/14000/40000	4000/14000/40000
JESD-30 code	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	R-PDIP-T14	-	-	R-PDIP-T14	R-PDIP-T14
length	18.86 mm	18.86 mm	18.86 mm	18.86 mm	-	-	18.86 mm	18.86 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	-	-	50 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE	AND GATE	NOR GATE	-	-	NAND GATE	NOR GATE
Number of functions	3	2	4	3	-	-	4	2
Number of entries	3	4	2	3	-	-	2	4
Number of terminals	14	14	14	14	-	-	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	-	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-	-	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	-	-	DIP	DIP
Encapsulate equivalent code	DIP14(UNSPEC)	DIP14(UNSPEC)	DIP14(UNSPEC)	DIP14(UNSPEC)	-	-	DIP14(UNSPEC)	DIP14(UNSPEC)
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-	-	IN-LINE	IN-LINE
power supply	5/15 V	5/15 V	5/15 V	5/15 V	-	-	5/15 V	5/15 V
Prop。Delay @ Nom-Sup	300 ns	300 ns	300 ns	300 ns	-	-	250 ns	300 ns
propagation delay (tpd)	300 ns	300 ns	300 ns	300 ns	-	-	250 ns	300 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	-	-	NO	NO
Maximum seat height	4.69 mm	4.69 mm	4.69 mm	4.69 mm	-	-	4.69 mm	4.69 mm
Maximum supply voltage (Vsup)	18 V	18 V	18 V	18 V	-	-	18 V	18 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	-	-	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	-	-	5 V	5 V
surface mount	NO	NO	NO	NO	-	-	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	-	-	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	-	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	-	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	-	-	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	-	-	7.62 mm	7.62 mm
