PPC-L106T

10.4" Fanless Panel PC with

AMD Geode™ LX 800 (500 MHz) Processor

Features



10.4" TFT LCD



AMD Geode™ LX 800 (500 MHz) CPU on board



System memory up to 1 GB SDRAM (256 MB default built-in)



One CompactFlash Type I/II socket (True IDE Mode)



10/100 Mbps Ethernet or Dual LAN (Optional)



Fanless and ultra-low power consumption



Optional PCI/ISA expansion kit



Automatic data flow control over RS-485

Introduction

PPC-L106T fanless Panel PC supports the low power AMD Geode LX 800 (500 MHz) processor. It is a powerful and compact Panel PC, ideally suited for operator interface (HMI)

applications. Its 10.4" 800 x 600 display, 1 GB SDRAM capacity and auto-sensing 10/100 Mbps Ethernet controller make it the ideal choice for many applications. It is great, for

example, for thin clients, health care and other networked environments, and of course traditional process control in industrial automation.

Specifications

CPU

Memory

Chipset

BIOS

SSD

HDD

Watchdog Timer

Bus Expansion

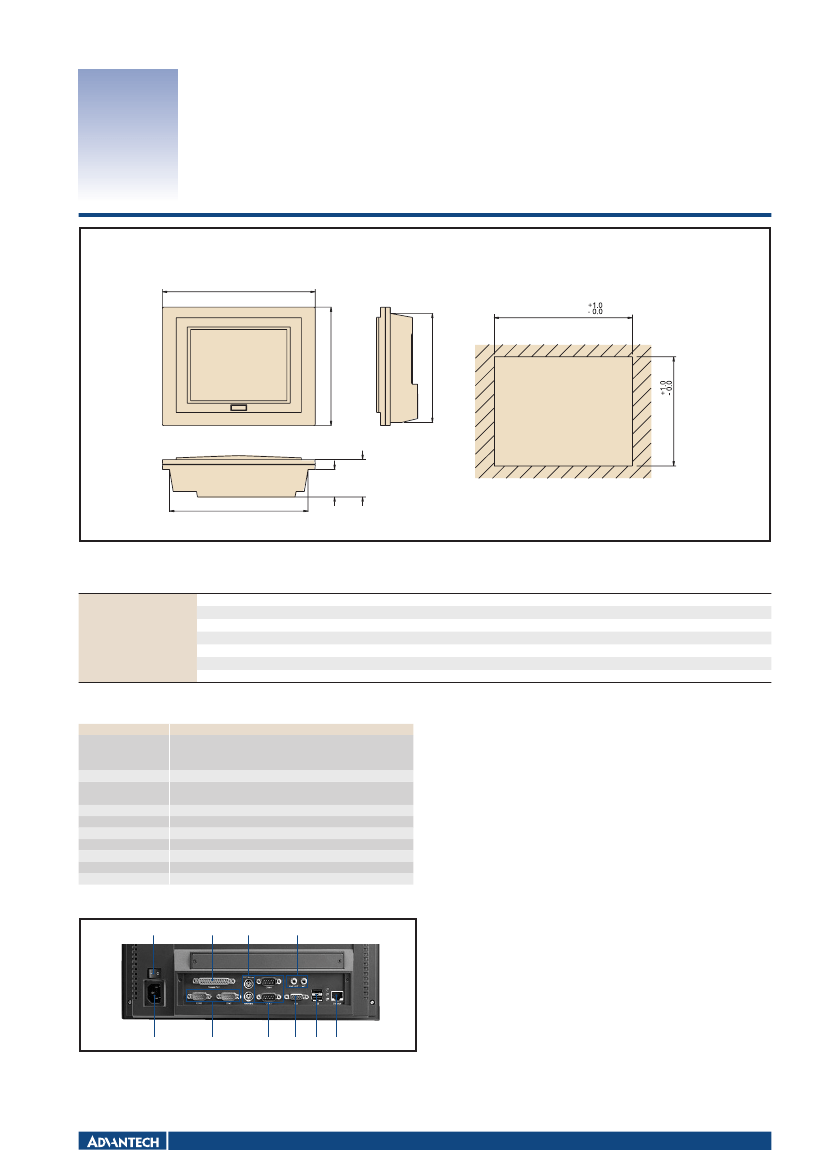

Dimensions (W x H x D)

Weight

Microsoft

Serial Ports

Parallel Ports

Keyboard/Mouse Ports

VGA

Sound

Ethernet

USB Ports

LCD Type

Resolution/Colors

Pixel Pitch (mm)

Luminance (cd/m

)

Viewing Angle

VR Adjustment

Simultaneous Mode

Backlight MTBF

Output Rating

Input Voltage

Output Voltage

Type

Light Transmission

Controller

Software Driver

Durability (Touches)

Onboard AMD Geode LX 800 (500 MHz)

1 x 200-pin SODIMM socket that accepts a 256/512/1204 MB DDR 266/333

Standard is built-in 256 MB

AMD Geode CX5536

4 Mbit Flash BIOS

1 x Type II CompactFlash, build in 64MB in PPC-L106T-CE-RTE

1 x internal IDE interface, 2.5" drive

255 timer levels; setup by software

1 x optional PCI/ISA expansion kit

1 x Mini PCI socket

342 x 265 x 92.4 mm (13.5" x 10.4" x 3.64")

3.2 kg (7.1 lbs)

Windows XPE, CE, XP

3 x RS-232, 1 x RS-232/422/485 (COM 2)

1 x SPP/EPP/ECP port

PS/2 interface

Supports simultaneous CRT displays

Mic-in/Line-out

10/100 Mbps, Dual LAN (Optional)

2 external USB 2.0, 2 internal USB 2.0

10.4" color TFT LCD

800 x 600 @ 262 K

0.264 x 0.264

230

60° (left), 60° (right), 35° (up), 60° (down)

Yes

20,000 hrs (min.)

65 W

100 ~ 240 V

@ 50/60 Hz, autoranging

+5 V @ 3.5 A, +12 V @ 4 A

Analog resistive, continuous resolution

80%

RS-232 interface (COM 4)

Optional USB interface

Supports Windows XP, CE

35 million

Processor System

OS Support

Complete I/O Ports

LCD Display

Power Supply

Touchscreen (optional)

Online Download

www.advantech.com/products
