PPC-L156T
15" Fanless Panel PC with
Intel Celeron M
®
Pentium M
®
Processor
Features
15" TFT XGA LCD
Embedded Intel
®
ULV Celeron
®
M 1.0 GHz/Pentium
®
M 1.1 GHz
Support for up to 2 GB Double Data Rate (DDR) memory
Two built-in 1 W speakers
Fanless and ultra-low power consumption
Automatic data flow control over RS-485
Removable front bezel
Optional Smart Battery Module with UPS functionality
Optional wireless antenna and one optional PCI expansion kit
Introduction
The PPC-L156T is a 15" fanless panel computer which is the ideal solution for low noise operating environments and clean room applications. PPC-L156T has two power sources;
an optional battery pack and an AC power supply. The battery charges when the PPC-L156T is connected to the AC power adapter. The optional rechargeable battery pack has more
than 60 minutes battery life and can be used as a UPS during expected loss of power. The PPC-L156T meets the VESA standard for mounting holes so it can be used in many different
kinds of installations. The front bezel can be removed to make maintenance of the LCD and touchscreen easier and quicker.
Specifications
CPU
Secondary Cache
Chipset
Memory
BIOS
SSD
HDD
I/O Ports
Bus Expansion
Dimensions (W x H x D)
Weight
COMBO Drive
OS support
Ethernet
Power Supply
Chipset
Speed
DC to DC Converter
AC to DC Converter
Display Type
Max. Resolution
Max. Colors
Dot Size (mm)
Luminance (cd/m
2
)
Viewing Angle
Operating Temperature
Brightness Adjustment
Backlight Lifetime
Types
Resolution
Light Transmission
Controller
Power Consumption
Software Driver
Durability (Touches)
Operating Temperature
Relative Humidity
Shock
Vibration
EMC
Safety
Front Panel Protection
Embedded Intel ULV Celeron 1.0 GHz, Embedded Intel Pentium M 1.1 GHz
PPC-L156T-R83-XE: None; PPC-L156T-R81-XE: 1 MB
Intel 852GM/ICH4 (PPC-L156T-R83-XE), Intel 855GME/ICH4 (PPC-L156T-R81-XE)
2 x 200-pin SODIMM sockets, supporting DDR200/266 modules for up to 2 GB Standard is built-in 256 MB
AWARD 4 Mbit Flash BIOS
Supports CompactFlash card Type I/II
1 x internal 2.5" IDE interface
- 3 x serial: 2 x RS-232, 1 x RS-232/422/485 (COM2)
- 2 x built-in speakers (1 W each)
- 4 x USB 2.0 ports: 2 x external, 2 x internal
- 2 x type II PCMCIA ports
- 1 x PS/2 mouse and keyboard port
- Line-in, Line-out & Mic-in port
- 1 x VGA port, 1 x parallel port
1 x Mini PCI socket and 1 x 32-bit PCI expansion kit (optional)
415 x 333 x 76.5 mm (16.3" x 13.1" x 3.0")
6 kg (13.2 lb)
Optional DVD/CD-RW 8D/24W/24E/24R or above
Microsoft Windows XPE, CE, XP pro, 2000
Intel 82551QM, and 82541GI
10/100 Mbps; 10/100/1000 Mbps (optional)
Input voltage: 18 ~ 25 V
DC
- Input Voltage: 100 ~ 240 V
AC
@ 50 ~ 60 Hz
- Output Voltage: 19 V @ 3.16 A
15" Color TFT LCD
1024 x 768
262 K
0.297 x 0.297
350 cd/m
2
60° (left), 60° (right), 40° (up), 60° (down)
0 ~ 50° C (32 ~ 122° F)
Yes
50,000 hours
Analog Resistive 5 wires
Capacitive
Infrared
Continuous
1024 x 1024
4096 x 4096
80%
90%
90%
RS-232 Interface (uses COM4)
+5 V @ 200 mA
+5 V @ 100 mA
+5 V @ 100 mA
Supports both DOS and Windows
35 million
225 million
100,000 hrs
0 ~ 45° C (32 ~ 113° F) ; 0-40° C with Battery Pack
10 ~ 95% @ 40° C, non-condensing
10 G peak acceleration (11 ms duration)
1G
CE, FCC Class B, BSMI
CE-CB, UL, BSMI, CCC
IP65/NEMA4 compliant
Processor System
LCD Display
Touchscreen (Optional)
Environmental Specifications
Online Download
www.advantech.com/products
PPC-L156T

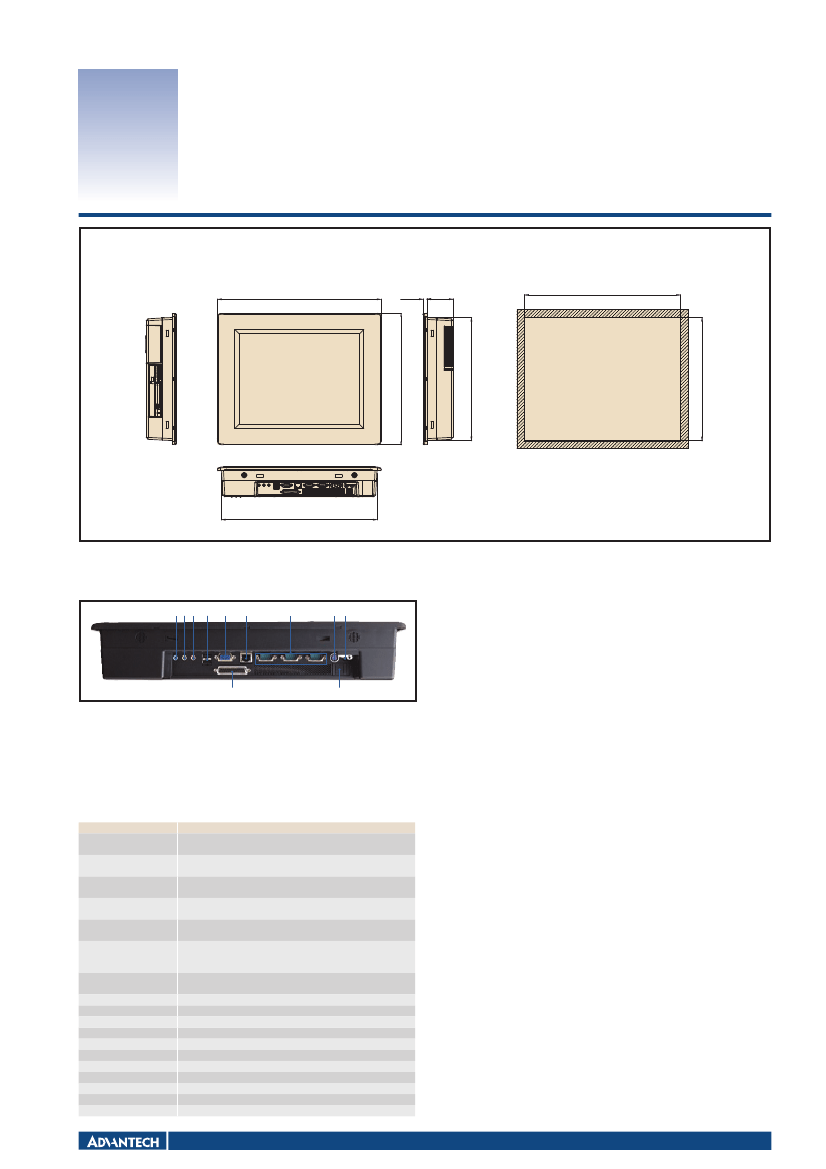

Dimensions
414.6
10.0
66.2
395.5
Unit: mm (inch)
333.3
312.7
CUTOUT
Panel Mount
394.7
Fully Integrated I/O
A B C
D
E
F
G
H I
Feature Details
Protection
To meet the requirements of a public environment, the front panel of PPC-L156T complies
with the IP65/NEMA4 protection standard. The watchdog timer and power management
features make the system secure and stable. The onboard hardware monitoring feature
provides automatic protection that prevents the CPU from overheating.
J
K
Networking
Three serial ports and a 10/100 Mbps Ethernet port (Gigabit optional) give the
PPC-L156T advanced networking capabilities, and provide a great solution for versatile
applications.
A. Line-in
B. Line-out
C. Mic-in
D. USB 2.0 x 2
E. VGA port
F. 10/100 Mbps Ethernet
G. COM port x 3
H. PS/2 mouse and keyboard port
I. DC inlet
J. Parallel port
K. Power switch
Expansion
To extend functionality, the PPC-L156T is designed with one expansion slot for 32-bit
PCI cards, one mini-PCI socket, four USB 2.0 (Univeral Serial Bus) ports, two RS-232
ports, one RS-232/422/485 port, one VGA port, and two PCMCIA CardBus ports. With
these expansion capabilities, the PPC-L156T not only functions as an HMI, but also as
a computing center to build your applications on.
Ordering Information
Part No.
PPC-L156T-083-XE
PPC-L156T-R83-XE
PPC-L156T-R81-XE
PPC-L156T-C83-XE
PPC-L156T-C81-XE
PPC-L156T-V83-XE
PPC-L156T-V81-XE
PPC-S15X Stand-BLK
PPC-ARM-A03
PPC-174 WL-MT
PPC-EXP-L156
989KL15600E
989KL15611E
989KL15612E
989KL15613E
176000797
1700001542
170203183C
Description
Intel ULV Celeron M 1.0 GHz Processor-based Fanless Panel PC with
15"TFT LCD
Intel ULV Celeron M 1.0 GHz processor-based Fanless Panel Computer
with 15" TFT LCD, Resistive Touchscreen
Intel Pentium M 1.1 GHz processor-based Fanless Panel Computer with
TFT 15" LCD, Resistive Touchscreen
Intel ULV Celeron M 1.0 GHz processor-based Fanless Panel Computer
with TFT 15" LCD, Capacitive Touchscreen
Intel Pentium M 1.1 GHz processor-based Fanless Panel Computer with
TFT 15" LCD, Capacitive Touchscreen
Intel ULV Celeron M 1.0 GHz processor-based Fanless Panel
Computer with TFT 15" LCD, vandal proof infrared touchscreen (meets
60950/UL1950)
Intel Pentium M 1.1 GHz processor-based Fanless Panel Computer with
TFT 15" LCD, vandal proof infrared touchscreen (meets 60950/UL1950)
Desktop Stand, Black, PPC-S15X
VESA Standard ARM for PPC series
Wall mount kit for PPC-174T
PCI expansion kit for PPC-L156T
Wireless LAN module
COMBO module for PPC-L156T
CD-ROM module for PPC-L156T serial
USB 2.0 x 2 module
Smart Li-ion 3S2P11.1V4400mAh-BQ2000/L126/L156
POWER CABLE 3P/3P POWER SUPPLY 1.8M FPM-306
Power CABLE 3P Europe (WS-010+083)183cm
Easy Maintenance
Maintaining and replacing the LCD and touchscreen are made easier through the
PPC-L156T's modular design. In order to replace a defective LCD or touchscreen, one
merely needs to remove the front cover and LCD bracket instead of disassembling the
whole system.
Touchscreen Options
Customers can choose from three optional types of standardized touchscreens: resistive,
capacitive and infrared. These options make the PPC-L156T a more user-friendly interface
for different environments.
Panel PCs
All product specifications are subject to change without notice
Last updated : 24-Mar-2009
