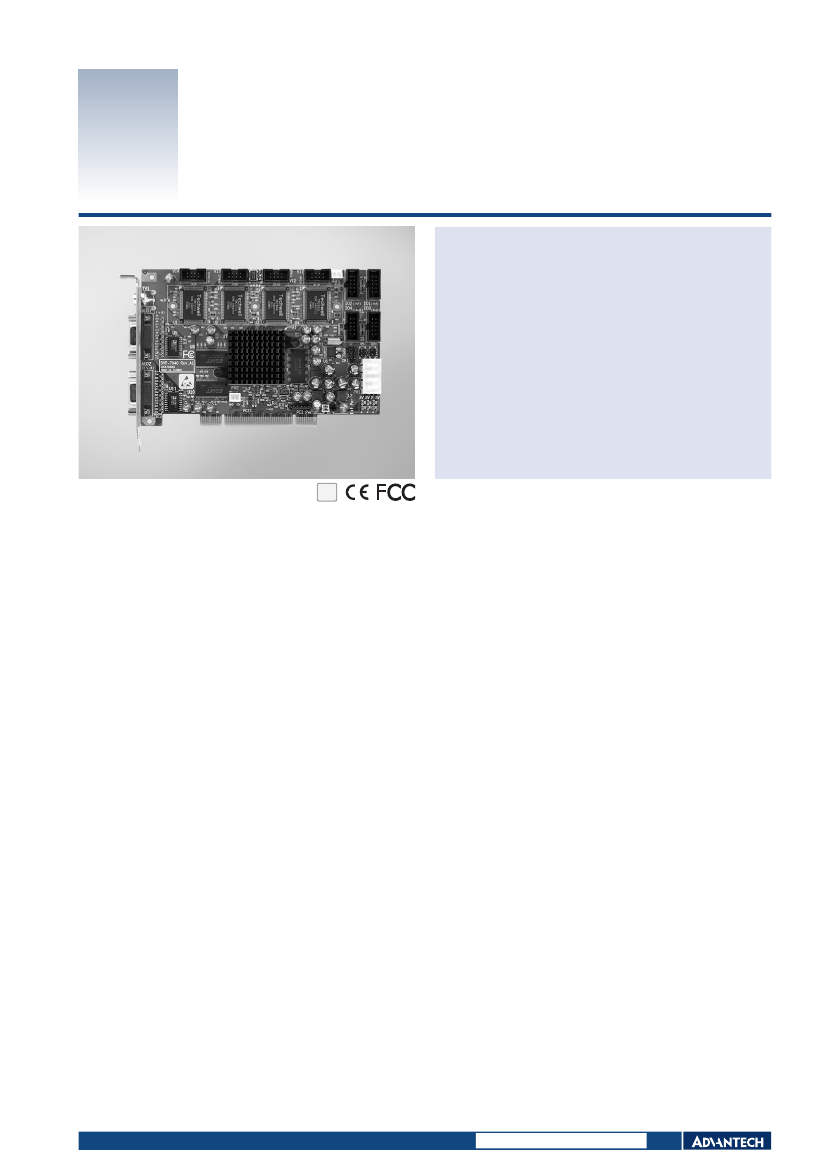

PV-1000E

16-ch Real-Time MPEG-4 Video Capture Card

with PowerView

Features



16 channel composite inputs with MPEG-4 compression



480/400 fps (NTSC/PAL) at D1 resolution for recording and display



Alogics APC-915 video capture chips on board



Support ADAM-4055 8DI/8DO Module



Bundled with PowerView 6000 advanced surveillance software



Supports Watchdog function

RoHS

2002/95/EC

COMPLIANT

Introduction

PV-1000E DVR kit supports 16 channels real time video monitoring capability in one card. PV-1000E provides not only a real-time video monitoring capability but also more flexibility,

and it is a good choice for which to build a high performance digital surveillance system. The PV-1000E is the application-ready digital video surveillance card with PowerView DVR

application software, which provides the user with high expansion and integration capabilities. PowerView 6000 series comprise an advanced and extensive digital video surveillance

system that supplies full functions integrated with digital recording, network monitoring, video backup, alarm notification and security control.

Specifications

Video



Video Standard



Video Input



Resolution



Max Recording Rate

Display Rate

Video Compression

Video Output

Composite for NTSC/PAL

16 BNC connectors

352 x 240, 704 x 240 and 704 x 480(NTSC)

352 x 288, 704 x 288 and 704 x 576(PAL)

480/400 fps (NTSC/PAL) @ CIF for all channels*

MPEG-4 Software Compression

Multiple YCrCb, RGB, and YUV planar formats

supported

16 x stereo inputs

Ordering Information



PV-1000E

16-ch MPEG-4 Video Capture Card w/ PowerView



Audio Input

Physical Characteristics



Host Interface

DI/O

Operating Temperature

Storing Temperature

Dimensions

Application Software

Operating System

PCI V2.2

Support ADAM-4055 8DI/8DO Module

-10 ~ 60° C (14 ~ 140° F)

-20 ~ 70° C (-4 ~ 158° F)

162 x 106 mm (6.3" x 4.2")

PowerView 6000

Supports Windows XP/XPe and Windows 2000

*Note:

Performance test on Intel Core 2 Duo 6400 CPU and 1024 MB Memory
