PM108AZ2/38510 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> PM108AZ2/38510

PM108AZ2/38510: DescriptionIC OP-AMP, 500 uV OFFSET-MAX, CDIP8, HERMETIC SEALED, CERAMIC, DIP-8, Operational Amplifier; CategoryAnalog mixed-signal IC Amplifier circuit; File Size98KB，3 Pages; ManufacturerADI; Websitehttps://www.analog.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PM108AZ2/38510 Overview

IC OP-AMP, 500 uV OFFSET-MAX, CDIP8, HERMETIC SEALED, CERAMIC, DIP-8, Operational Amplifier

PM108AZ2/38510 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ADI
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.002 µA
Minimum Common Mode Rejection Ratio	96 dB
Maximum input offset voltage	500 µV
JESD-30 code	R-GDIP-T8
Negative supply voltage upper limit	-20 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.08 mm
minimum slew rate	0.05 V/us
Maximum slew rate	0.6 mA
Supply voltage upper limit	20 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Minimum voltage gain	80000
width	7.62 mm

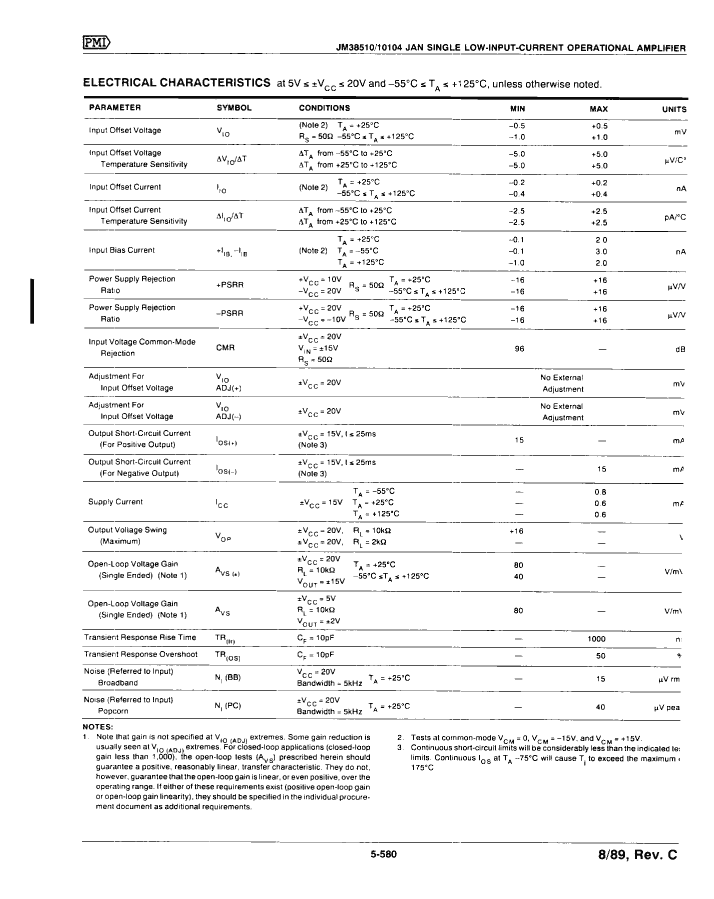

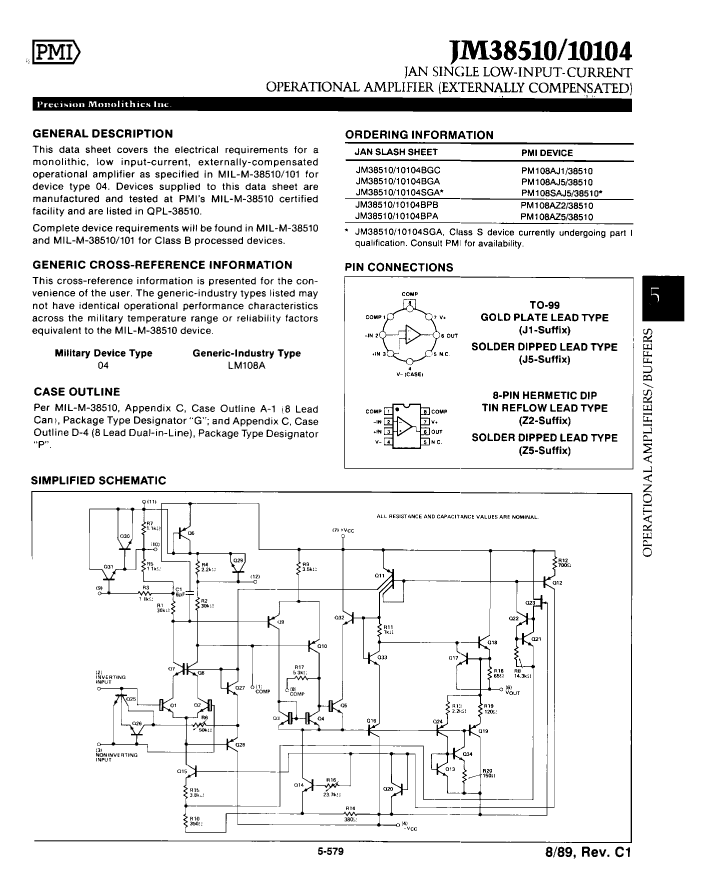

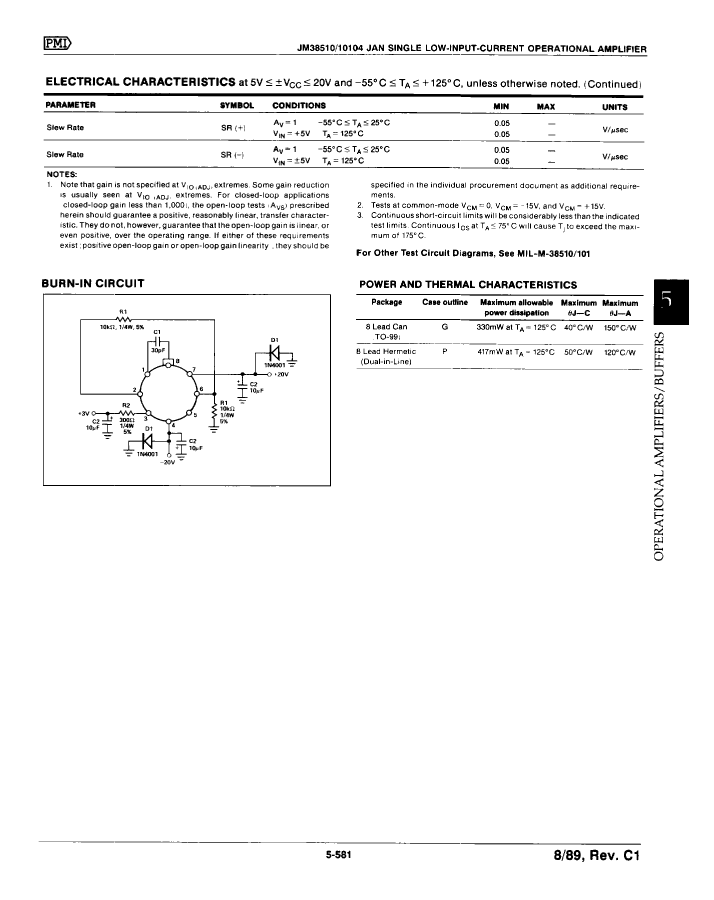

Preview

Download Datasheet

View All

PM108AZ2/38510 Related Products

	PM108AZ2/38510	PM108AZ5/38510	PM108SAJ5/38510
Description	IC OP-AMP, 500 uV OFFSET-MAX, CDIP8, HERMETIC SEALED, CERAMIC, DIP-8, Operational Amplifier	IC OP-AMP, 500 uV OFFSET-MAX, CDIP8, HERMETIC SEALED, CERAMIC, DIP-8, Operational Amplifier	IC OP-AMP, 500 uV OFFSET-MAX, MBCY8, METAL CAN, TO-99, 8 PIN, Operational Amplifier
Is it Rohs certified?	conform to	conform to	incompatible
Maker	ADI	ADI	ADI
Parts packaging code	DIP	DIP	BCY
package instruction	DIP,	DIP,	METAL CAN, TO-99, 8 PIN
Contacts	8	8	8
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.002 µA	0.002 µA	0.002 µA
Minimum Common Mode Rejection Ratio	96 dB	96 dB	96 dB
Maximum input offset voltage	500 µV	500 µV	500 µV
JESD-30 code	R-GDIP-T8	R-GDIP-T8	O-MBCY-W8
Negative supply voltage upper limit	-20 V	-20 V	-20 V
Number of functions	1	1	1
Number of terminals	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	METAL
encapsulated code	DIP	DIP	TO-99
Package shape	RECTANGULAR	RECTANGULAR	ROUND
Package form	IN-LINE	IN-LINE	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	0.05 V/us	0.05 V/us	0.05 V/us
Maximum slew rate	0.6 mA	0.6 mA	0.6 mA
Supply voltage upper limit	20 V	20 V	20 V
surface mount	NO	NO	NO
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	WIRE
Terminal location	DUAL	DUAL	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Minimum voltage gain	80000	80000	80000
Is it lead-free?	Lead free	Lead free	-
Maximum seat height	5.08 mm	5.08 mm	-
Terminal pitch	2.54 mm	2.54 mm	-
width	7.62 mm	7.62 mm	-
