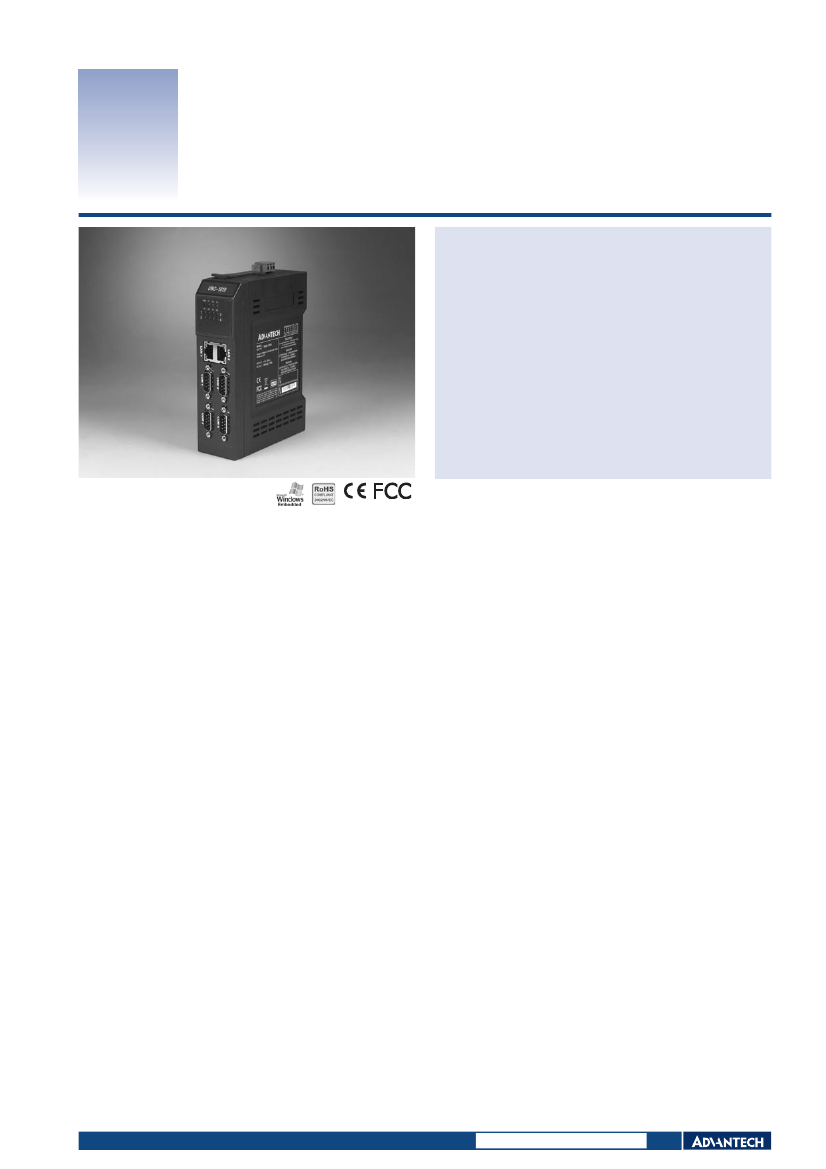

UNO-1019
Marvell
®
XScale UNO with 2 x LAN,
4 x COM, 4 x DI/O
Features
Marvell
®
XScale PXA-255 200 MHz Processor
64 MB SDRAM on board, 32 MB Flash
2 x RS-232, 2 x RS-232/422/485 Serial Ports
Dual 10/100 Mbps Ethernet
1 x CompactFlash
®
for DATA storage
Windows
®
CE 5.0 Ready Platform and optional uClinux OS support
Included Advantech DaigAnywhere for Easy Configuration
DIN-rail and Wallmounting Options
Onboard system & I/O LED indicators
Supports Microsoft .NET compact framework 2.0 (WinCE 5.0 only)
Fanless and no internal cabling design
Introduction
Advantech’s UNO-1019 is a RISC-grade embedded platform that offers 2 LANs, 4 serial ports and 4 Digital Inputs/Outputs and a CompactFlash slot. UNO-1019 also comes with
Windows CE 4.2/5.0 OS, offering a pre-built image onboard. Additionally, UNO-1019 operates under 0 ~ 70° C, and its small size and lightweight design allows it to be installed in
tight industrial environments. UNO-1019 is an excellent communication gateway for converting communication protocosl, I/O control, and data storage in the industrial field.
Specifications
General
Certifications
CE, FCC Class A
Dimensions (W x H x D)
46 x 162 x 126 mm (1.8" x 6.4" x 5")
Enclosure
ABS+PC with solid mounting hardware
Mounting
DIN-rail, wallmount
Power Consumption
8.5 W
Power Input
10 ~ 30 V
DC
(13 W), AT
Weight
400 g
Digital Input/Digital Output
Digital Inputs
2 x Digital Inputs
Dry contact
Logic level 0: Open
Logic level 1: Close
Wet contact
Logic level 0: +3 V max
Logic level 1: +10 V
DC
to 30 V
DC
2 x Digital Outputs
Open Collect to 30 V
200 mA max Load, power dissipation 450 mW
Digital Outputs
System Hardware
CPU
Memory
Indicators
Storage
32-bit Marvell XScale PXA255 200 MHz
Onboard 64 MB SDRAM
Power, Serial (Tx, Rx), 3 x User Defined LEDs
Onboard 16 or 32 MB Flash Memory
SSD: 1 x external type I/II CompactFlash
®
slot
Realtime clock, Watchdog timer
Environment
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
0 ~ 70° C (32 ~ 158° F)
-20 ~ 80° C (-4 ~ 176° F)
20 ~ 95% (non-condensing)
0 ~ 95% (non-condensing)
Other
System Software
Operating System
Remote Display
Windows CE 4.2/5.0
(Pre-installed on onboard flash memory)
Advantech DiagAnywhere (optional)
Ordering Information
UNO-1019ACE-A1E
UNO-1019ACE-A2E
PCLS-DIAGAW10
Marvell XScale UNO w/2 x LAN, 4 x COM, Windows
CE 4.2, onboard 16 MB Flash Memory
Marvell XScale UNO w/2 x LAN, 4 x COM, Windows
CE 5.0, onboard 32 MB Flash Memory
Advantech Remote Monitoring & Diagnosis Utility
Communications
Serial Ports
Serial Port Speed
LAN
2 x RS-232, 2 x RS-232/422/485 with DB9 connectors,
Automatic RS-485 data flow control
RS-232: 300 ~ 115.2 kbps
RS-422/485: 300 ~ 115.2 kbps
2 x 10/100 Base-T RJ-45 ports
Online Download
www.advantech.com/products
