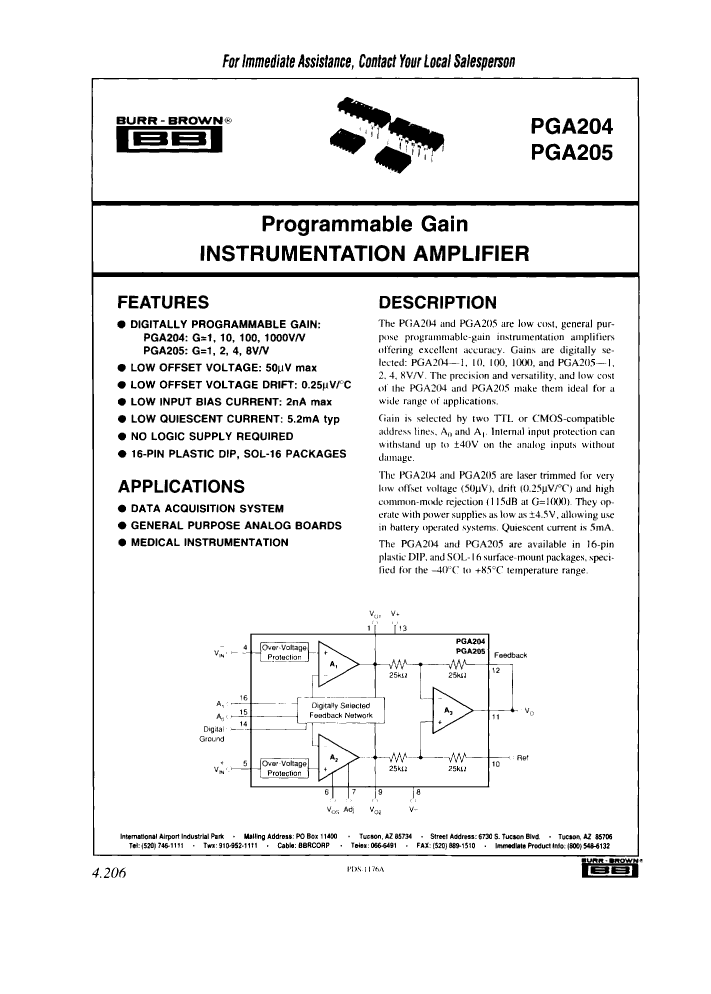

Instrumentation Amplifier, 1 Func, 150uV Offset-Max, 1MHz Band Width, PDSO16,

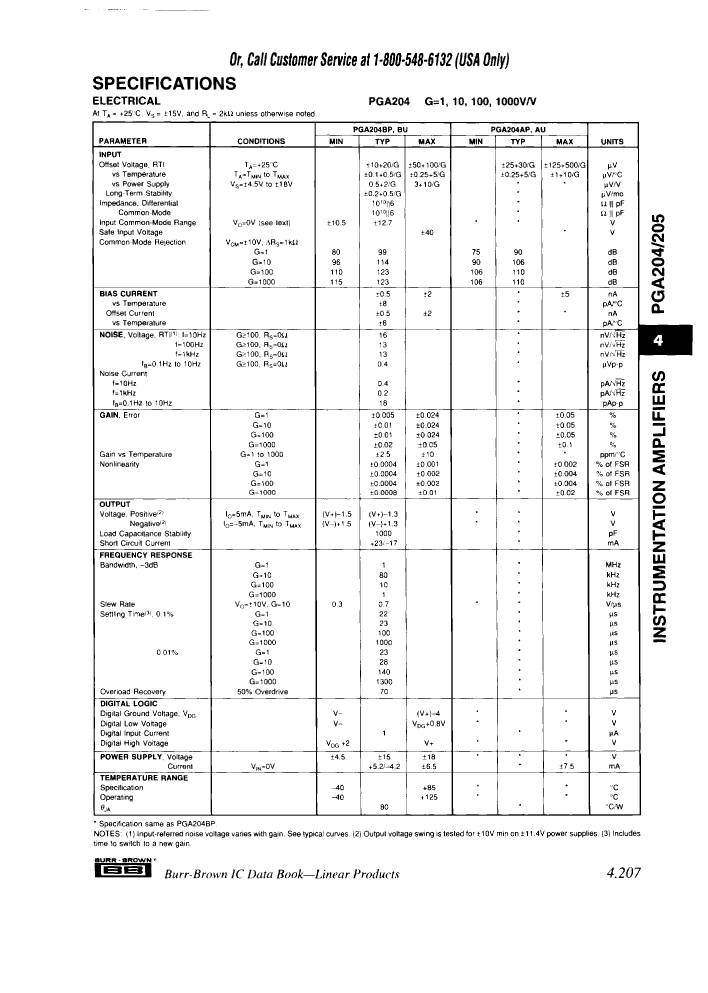

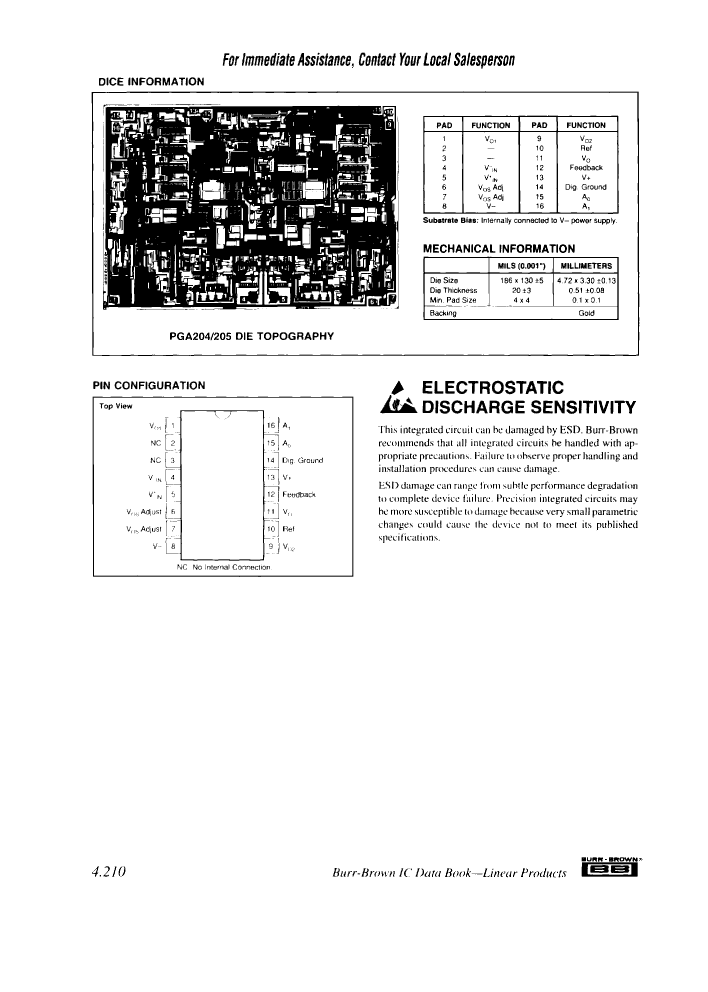

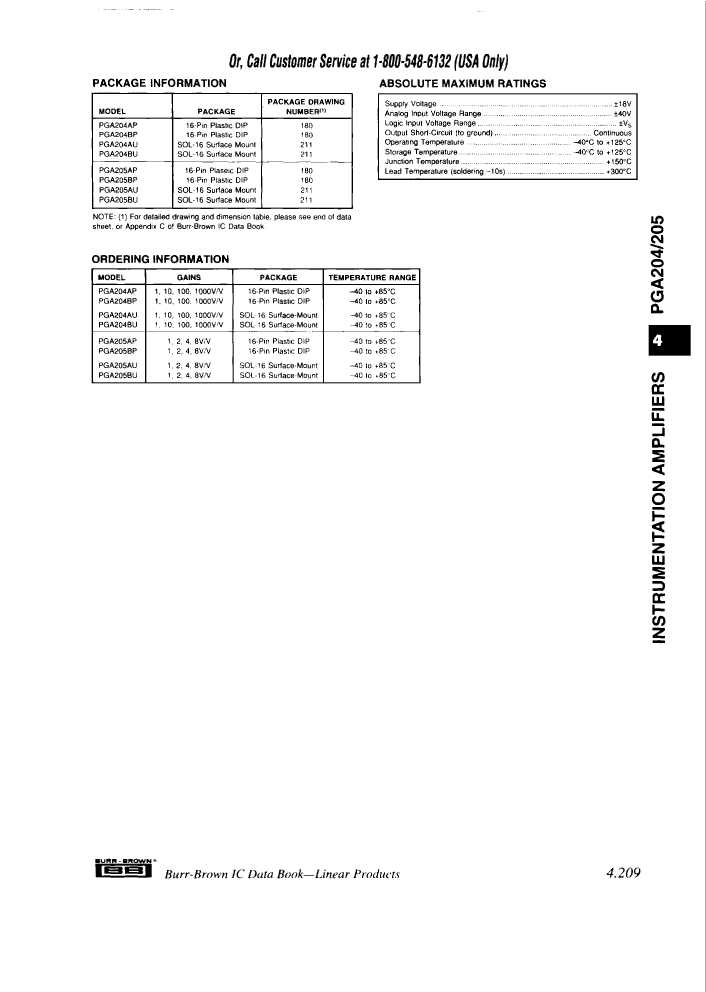

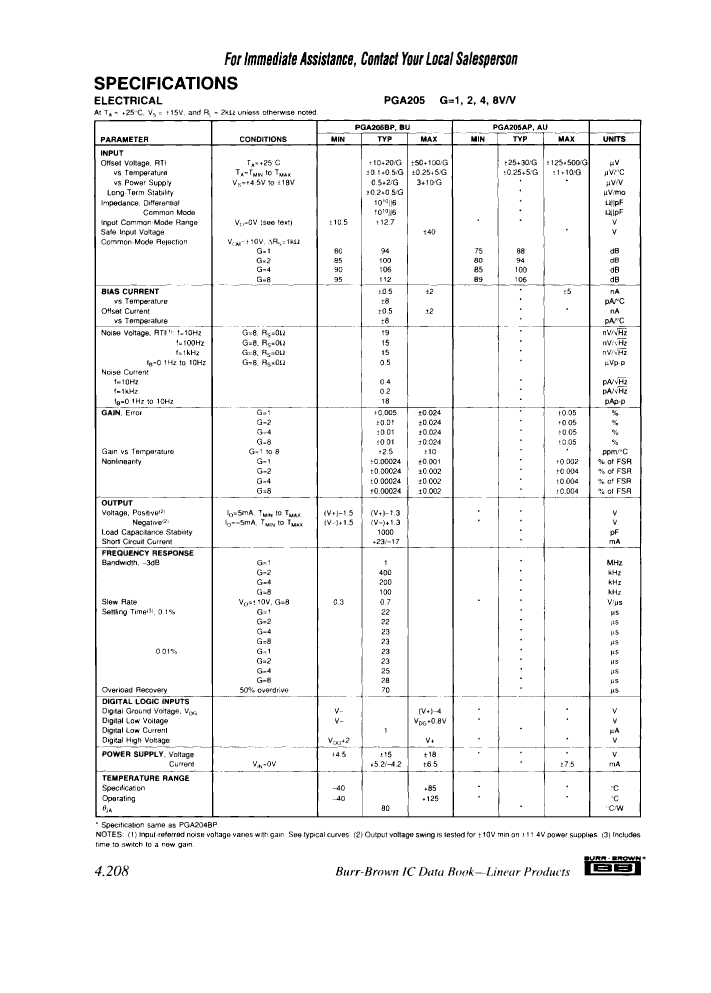

| Parameter Name | Attribute value |
| Maker | Burr-Brown |
| Reach Compliance Code | unknown |
| Amplifier type | INSTRUMENTATION AMPLIFIER |
| Maximum average bias current (IIB) | 0.002 µA |
| Nominal bandwidth (3dB) | 1 MHz |
| Minimum Common Mode Rejection Ratio | 80 dB |
| Maximum input offset current (IIO) | 0.002 µA |
| Maximum input offset voltage | 150 µV |
| JESD-30 code | R-PDSO-G16 |
| Negative supply voltage upper limit | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| maximum nonlinearity | 0.01% |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Nominal slew rate | 0.7 V/us |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| Temperature level | INDUSTRIAL |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| Maximum voltage gain | 1000 |
| Minimum voltage gain | 1 |
| PGA204BU-TR | PGA204AU-TR | PGA205AU-TR | PGA205BU-TR | |
|---|---|---|---|---|
| Description | Instrumentation Amplifier, 1 Func, 150uV Offset-Max, 1MHz Band Width, PDSO16, | Instrumentation Amplifier, 1 Func, 625uV Offset-Max, 1MHz Band Width, PDSO16, | Instrumentation Amplifier, 1 Func, 625uV Offset-Max, 1MHz Band Width, PDSO16, | Instrumentation Amplifier, 1 Func, 150uV Offset-Max, 1MHz Band Width, PDSO16, |
| Maker | Burr-Brown | Burr-Brown | Burr-Brown | Burr-Brown |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| Amplifier type | INSTRUMENTATION AMPLIFIER | INSTRUMENTATION AMPLIFIER | INSTRUMENTATION AMPLIFIER | INSTRUMENTATION AMPLIFIER |
| Maximum average bias current (IIB) | 0.002 µA | 0.005 µA | 0.005 µA | 0.002 µA |
| Nominal bandwidth (3dB) | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Minimum Common Mode Rejection Ratio | 80 dB | 75 dB | 75 dB | 80 dB |
| Maximum input offset current (IIO) | 0.002 µA | 0.002 µA | 0.002 µA | 0.002 µA |
| Maximum input offset voltage | 150 µV | 625 µV | 625 µV | 150 µV |
| JESD-30 code | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 |
| Negative supply voltage upper limit | -18 V | -18 V | -18 V | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V |
| maximum nonlinearity | 0.01% | 0.02% | 0.02% | 0.01% |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal slew rate | 0.7 V/us | 0.7 V/us | 0.7 V/us | 0.7 V/us |
| Supply voltage upper limit | 18 V | 18 V | 18 V | 18 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V |
| surface mount | YES | YES | YES | YES |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| Maximum voltage gain | 1000 | 1000 | 8 | 8 |
| Minimum voltage gain | 1 | 1 | 1 | 1 |
