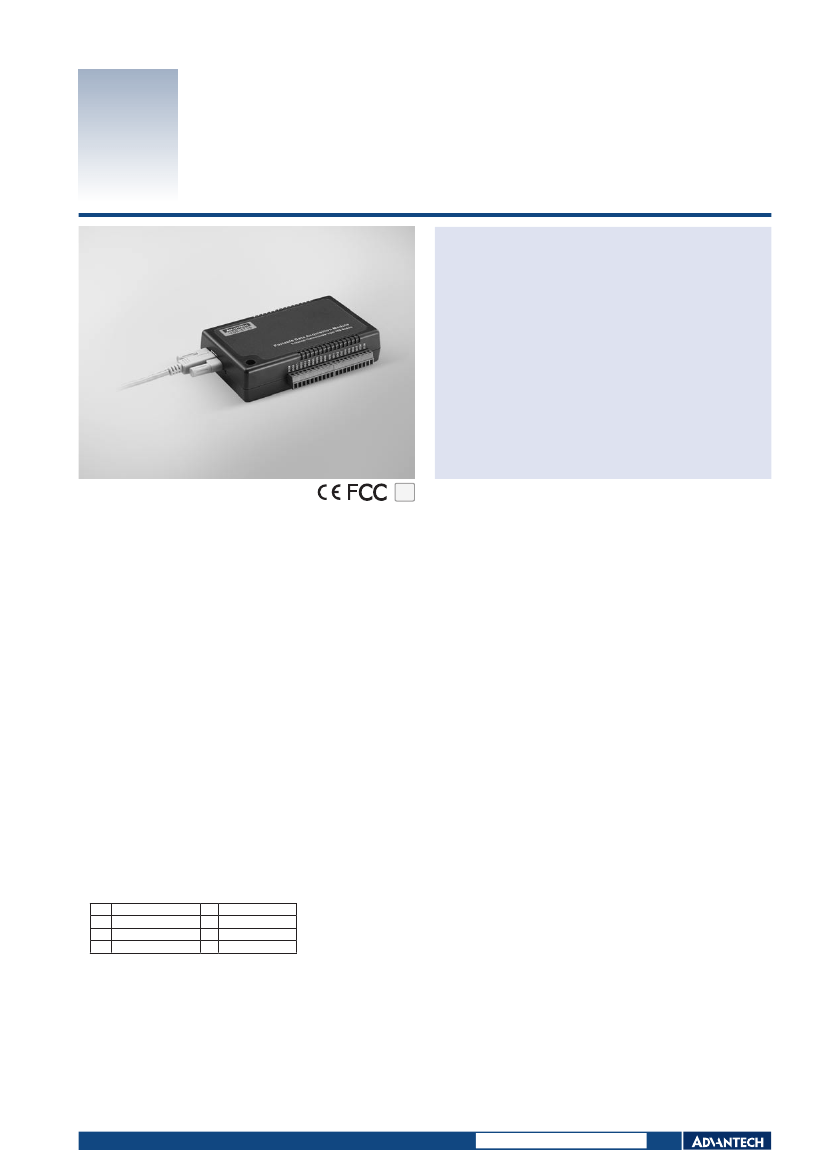

USB-4718
8-ch Thermocouple Input USB Module
with 8-ch Isolated Digital Input
Features
Supports USB 2.0
Supports voltage, current, and thermocouple inputs
Bus-powered
8 thermocouple input channels
2,500 V
DC
isolation
Supports 4 ~ 20 mA current input
Detachable screw terminal on modules
8-ch isolated DI and 8-ch isolated DO
Suitable for DIN-rail mounting
One lockable USB cable for secure connection included
RoHS
2002/95/EC
COMPLIANT
Introduction
The USB-4700 series consists of true Plug & Play data acquisition devices. No more opening up your computer chassis to install boards-just plug in the module, then get the data.
It’s easy and efficient. USB-4718 offers 8 thermocouple inputs with 16-bit resolution, up to 0.1% input range accuracy. Portable design makes the USB-4718 suitable for the field
research. Also the input channels can be set separately make it possible handling multiple types of sensor with only one USB-4718 module.
Reliable and rugged enough for industrial applications, yet inexpensive enough for home projects, the USB-4718 is the perfect way to add measurement and control capability to any USB
capable computer. The USB-4700 series is fully plug and play and easy to use. It obtains all required power from the USB port, so no external power connection is ever required.
Specifications
Analog Input
Accuracy
Bandwidth
±0.1% for voltage input
13.1 Hz @ 50 Hz,
15.72 Hz @ 60 Hz
Channels
8 differential
Ch. Independent Conf.
Yes
CMR @ 50/60 Hz
92 dB min.
Resolution
16 bits
Input Impedance
1.8 MΩ
lnput Range
0 ~ 15 mV, 0 ~ 50 mV, 0 ~ 100 mV, 0 ~ 500 mV,
0 ~ 1 V, 0 ~ 2.5 V, 0 ~ 20 mA, 4 ~ 20 mA
lnput Types
Thermocouple, mV, V, mA
Sampling Rate
10 S/s (total)
Span Drift
±25 ppm/° C
T/C Type and Temperature Ranges
J
K
T
E
0 ~ 760° C
0 ~ 1370° C
-100 ~ 400° C
0 ~ 1000° C
R
S
B
500 ~ 1750° C
500 ~ 1750° C
500 ~ 1800° C
Isolated Digital Output
Channels
Output Type
Isolation Protection
Output Voltage
Sink Current
Opto-isolator Response
8
Sink (NPN)
2,500 V
DC
5 ~ 30 V
DC
, 1.1 A max./ total
200 mA max./channel
25 μs
General
Bus Type
I/O Connector
Dimensions (Lx W x H)
Power Consumption
Watchdog Timer
Operating Temperature
Storage Temperature
Storage Humidity
USB 2.0
Onboard screw terminal
132 x 80 x 32 mm
100 mA @ 5 V
1.6 sec. (system)
0 ~ 60° C (32 ~ 140° F) (refer to IEC 68-2-1, 2)
-20 ~ 70° C (-4 ~ 158° F)
5 ~ 95% RH non-condensing (refer to IEC 68-2-3)
TVS/ESD Protection
Zero Drift
Built-in
±0.3 μV/° C
Ordering Information
USB-4718
1960004544
1960005788
8-ch Thermocouple Input USB Module
Wallmount Bracket
VESA Mount Bracket
Isolated Digital Input
Channels
Input Voltage
8
Logic 0: 2 V max.
Logic 1: 5 V min. (30 V max.)
Isolation Protection
2,500 V
DC
Opto-isolator Response
25 μs
Online Download
www.advantech.com/products
