RMCA-EA16LMY-OM03-C datasheet, PDF

Datasheet> All Categories > The connector> The connector> RMCA-EA16LMY-OM03-C

RMCA-EA16LMY-OM03-C: DescriptionPCMCIA Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size74KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.

Download Datasheet Parametric View All

RMCA-EA16LMY-OM03-C Overview

PCMCIA Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal,

RMCA-EA16LMY-OM03-C Parametric

Parameter Name	Attribute value
Maker	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	PCMCIA CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	16

Preview

Download Datasheet

View All

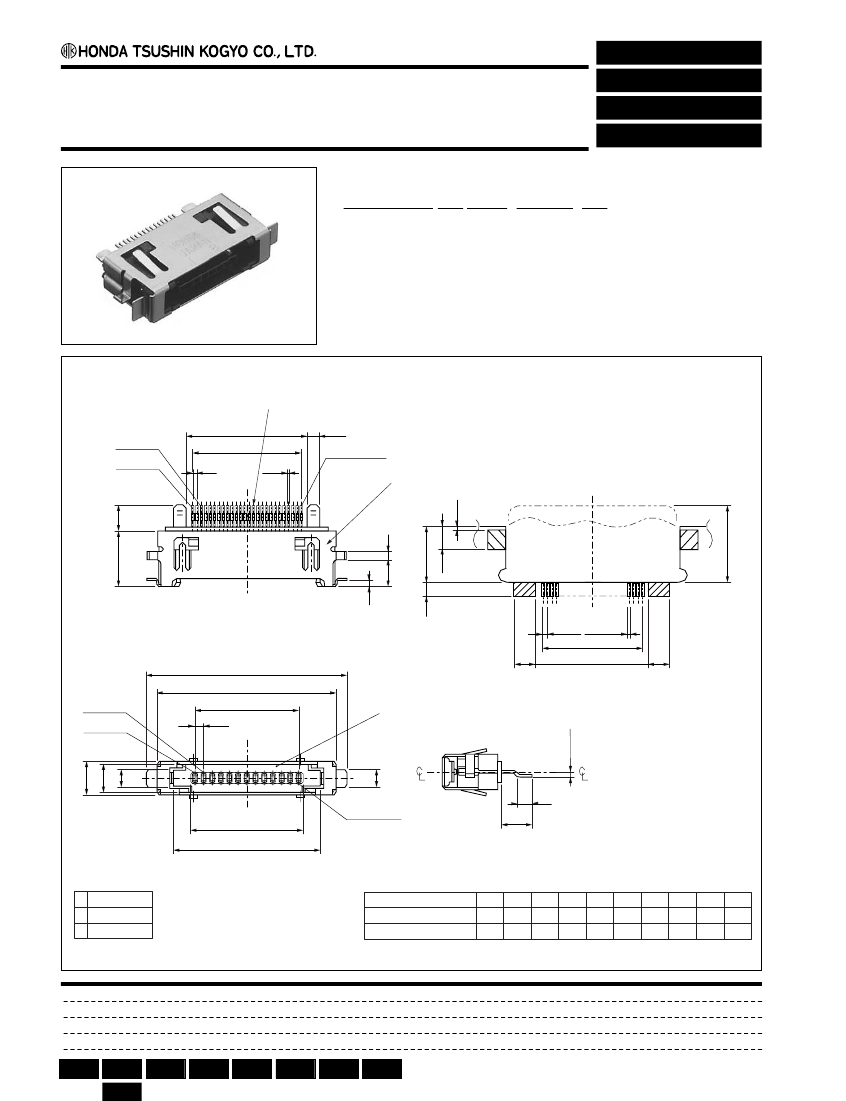

Connectors for PC card

Right-angle SMT type male board connector

RMCA-EA( )LMY-OM( )-( )

●

Configuration of product Part No.

For PCB

Right-angle SMT

RMCA-EA ( ) LMY- OM( ) -( )

➀

➁

➂

➃

➀

Series name

➁

No. of contacts: 16 or 26

➂

Type of contact

LMY: Right-angle SMT type, male

➃

Off-set

OM00: Off-set 0 mm

OM03: Off-set 0.3 mm

OM06: Off-set 0.6 mm

OM09: Off-set 0.9 mm

➄

Polarity

A: A type

B: B type

C: C type

D: D type

E: E type

➀

POS.#2

POS.#1

0.5

0.18

1.65

LAST POS.

➂

9.35

0.1

Connector tip position

2.65

1.2

0.25

7.85

1.0

3.15

1.5

2.45

HONDA

JAPAN

6.95

0.05

0.5

0.02

0.3 REF.

0.03

2.65

POS.#2

POS.#1

1.0

2.65

PCB layout for reference only

(Mounting figure for connector)

➁

4.7 REF.

Off-set

3.85

2.55

4.3

2.6

1.2

LAST POS.

2.65

●

Components

➀

Contacts

➁

Insulator

➂

Shell

●

Dimensions

Part No.

RMCA-EA16LMY-OM06-A

9.7

7.5

19.2 16.1

7.0

7.9 12.2 21.2 16.8

8.7

RMCA-EA26LMY-OM06-A

14.7 12.5 24.2 21.1 12.0 12.9 17.2 26.2 21.8 13.7

Some models may not be quickly supplied depending on the configuration of part number. For availability of the model required, consult your supplier.

Mating connectors:

RMCA series of soldering type female connectors
