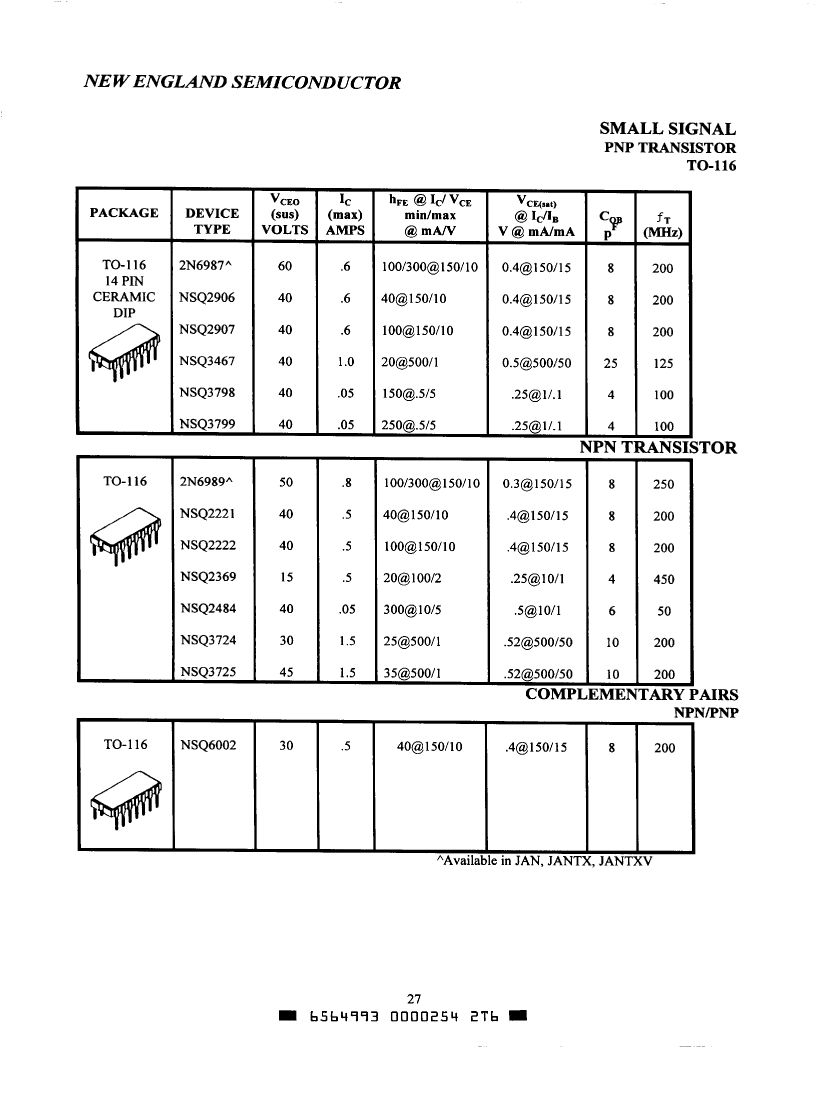

NSQ3799: DescriptionSmall Signal Bipolar Transistor, 0.05A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-116,; CategoryDiscrete semiconductor The transistor; File Size30KB，1 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

NSQ3799 Overview

Small Signal Bipolar Transistor, 0.05A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-116,

NSQ3799 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
package instruction	IN-LINE, R-CDIP-T14
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	0.05 A
Collector-emitter maximum voltage	40 V
Configuration	SINGLE
Minimum DC current gain (hFE)	250
JEDEC-95 code	TO-116
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
Number of components	1
Number of terminals	14
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	PNP
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

NSQ3799 Related Products

	NSQ3799	NSQ3798	NSQ2221	NSQ2484	NSQ2906	NSQ3724
Description	Small Signal Bipolar Transistor, 0.05A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-116,	Small Signal Bipolar Transistor, 0.05A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-116,	Small Signal Bipolar Transistor, 0.5A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-116,	Small Signal Bipolar Transistor, 0.05A I(C), 40V V(BR)CEO, 1-Element, NPN, Silicon, TO-116,	Small Signal Bipolar Transistor, 0.6A I(C), 40V V(BR)CEO, 1-Element, PNP, Silicon, TO-116,	Power Bipolar Transistor, 1.5A I(C), 30V V(BR)CEO, 4-Element, NPN, Silicon, TO-116, Ceramic, Metal-Sealed Cofired, 14 Pin, TO-116, 14 PIN
package instruction	IN-LINE, R-CDIP-T14	IN-LINE, R-CDIP-T14	IN-LINE, R-CDIP-T14	IN-LINE, R-CDIP-T14	IN-LINE, R-CDIP-T14	TO-116, 14 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	0.05 A	0.05 A	0.5 A	0.05 A	0.6 A	1.5 A
Collector-emitter maximum voltage	40 V	40 V	40 V	40 V	40 V	30 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SEPARATE, 4 ELEMENTS
Minimum DC current gain (hFE)	250	150	40	300	40	25
JEDEC-95 code	TO-116	TO-116	TO-116	TO-116	TO-116	TO-116
JESD-30 code	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14	R-CDIP-T14
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	4
Number of terminals	14	14	14	14	14	14
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Polarity/channel type	PNP	PNP	NPN	NPN	PNP	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz	200 MHz	50 MHz	200 MHz	200 MHz
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	-
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-
