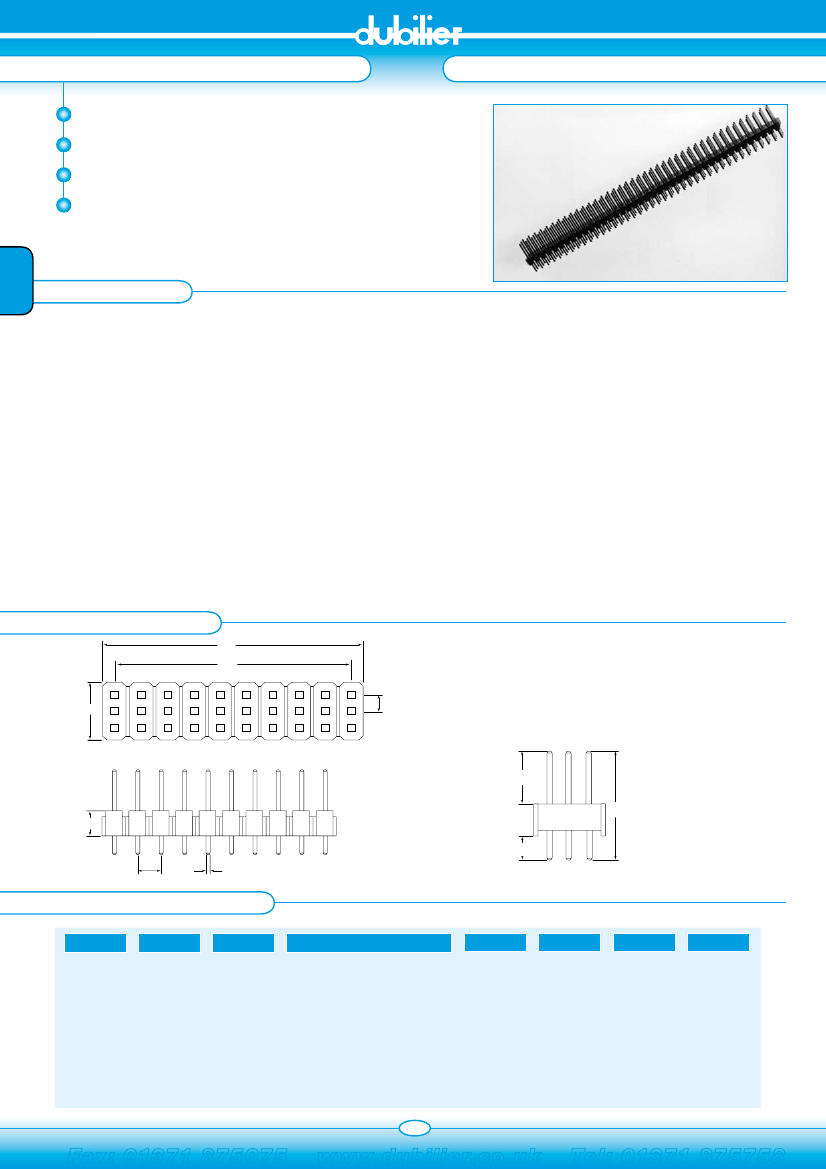

PIN HEADERS
Industry compatible
Competitively priced
Various plated contacts available
2.54mm pitch
TRIPLE ROW STRAIGHT
SECTION 8
SPECIFICATION
Material & Finish
Contact Material:
Insulator Material:
Current Rating:
Brass
PBT & Glass-Fibre Reinforced UL94V-0
1 A DC
30M Ω Max at 6V DC 0.3A
1000M Ω Min at 500V DC
Contact Resistance:
Insulator Resistance:
Dielectric Withstanding
Voltage:
500V AC for One Minute
-40°C to + 105°C
Operating Temperature:
OUTLINE DRAWING
A
B
7.45
2.54
A = 2.54 x N° of Positions
B = (2.54 x N° of Positions)-1
E
mm
2.54
F
mm
2.54
0.64
E
6
G
11.54
F
3
G
mm
ORDERING INFORMATION
DBC
Dubilier
Connectors
For other dimension variations please consult office
PH
Pin Header
Connector
C21
Series
09
Nº of Ways
02=2x3way
Thro to
40=40x3way
A
Contact Material
A=Brass
G
Contact Plating
G= Gold Flash
S=Selective
T=Tin Plated
other plating
Available
1
Colour
1=Black
-XXX
Unique Special
Code
*See Below
*Dubilier will allocate a special code to
distinguish pin lengths if required
174
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
