DBCPHC3007AT1-XXX

Description
PIN HEADERS DUAL ROW RIGHT ANGLE 2.00mm
File Size109KB,1 Pages
ManufacturerDUBILIER
Websitehttp://www.dubilier.co.uk/
Download Datasheet View All

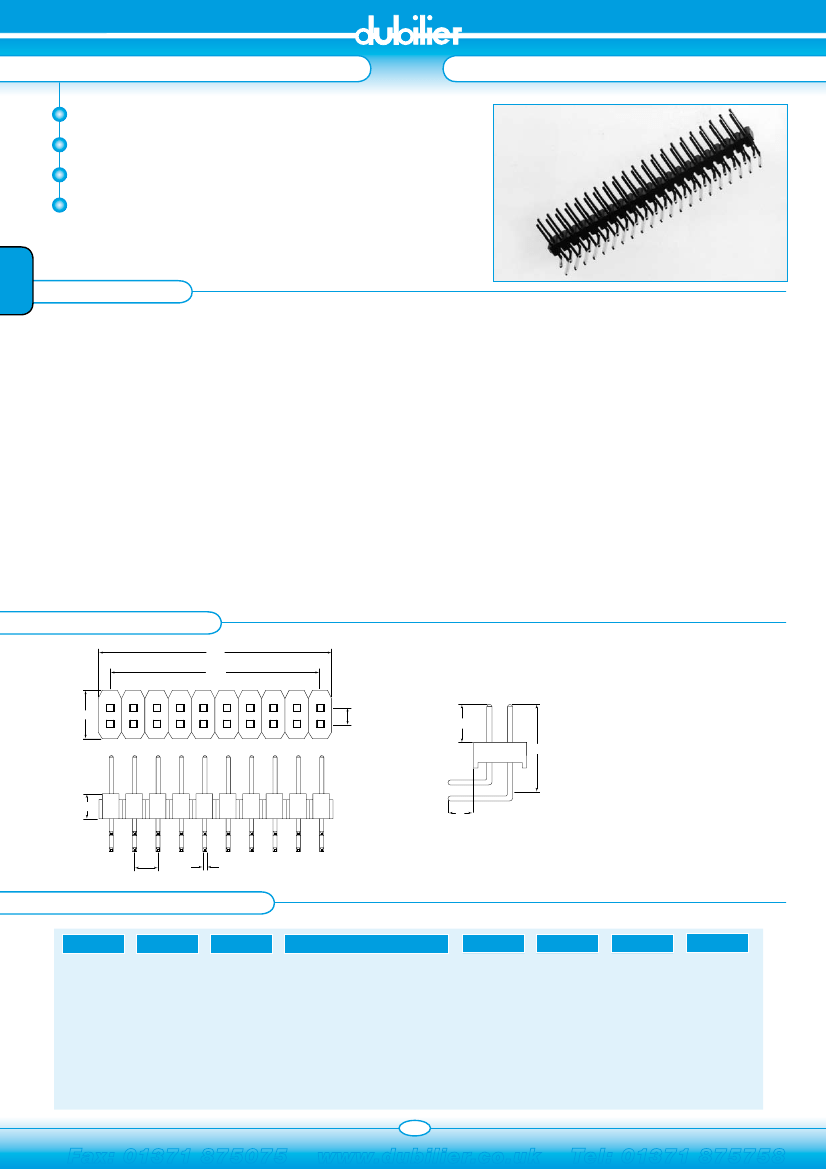

DBCPHC3007AT1-XXX Overview

PIN HEADERS DUAL ROW RIGHT ANGLE 2.00mm

PIN HEADERS
Industry compatible
Competitively priced
Various plated contacts available
2.00mm pitch
DUAL ROW RIGHT ANGLE 2.00mm
SECTION 8
SPECIFICATION
Material & Finish
Contact Material:
Insulator Material:
Current Rating:
Brass
PBT & Glass-Fibre Reinforced UL94V-0
1 A DC
30M Ω Max at 6V DC 0.3A
1000M Ω Min at 500V DC
Contact Resistance:
Insulator Resistance:
Dielectric Withstanding
Voltage:
500V AC for One Minute
-40°C to + 105°C
A
Operating Temperature:
B
OUTLINE DRAWING
4.0
4.0
A
B
A
B
2.0
A = 2.00mm x N° of Positions
B = (2.00mm x N° of Positions)-1
2.0
2.0
3.9
8.7
3.9
2.0
2.0
2.0
0.5
2.8
3.9
8.7
8.7
2.0
0.5
2.8
2.0
0.5
ORDERING INFORMATION
For other dimension variations please consult office
2.8
DBC
Dubilier
Connectors
PH
Pin Header
Connector
C30
Series
04
Nº of Ways
02=2x2way
Thro to
40=40x2way
A
Contact Material
A=Brass
G
Contact Plating
G= Gold Flash
S=Selective
T=Tin Plated
1
Colour
1=Black
-XXX
Unique Special
Code
*See Below
*Dubilier will allocate a special code to
distinguish pin lengths if required
182
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
